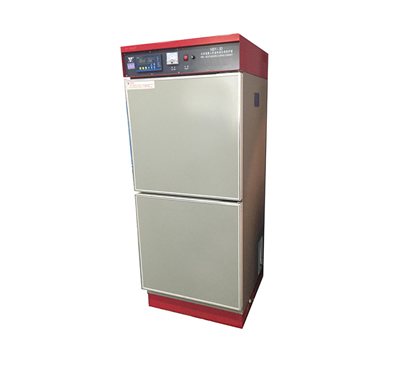

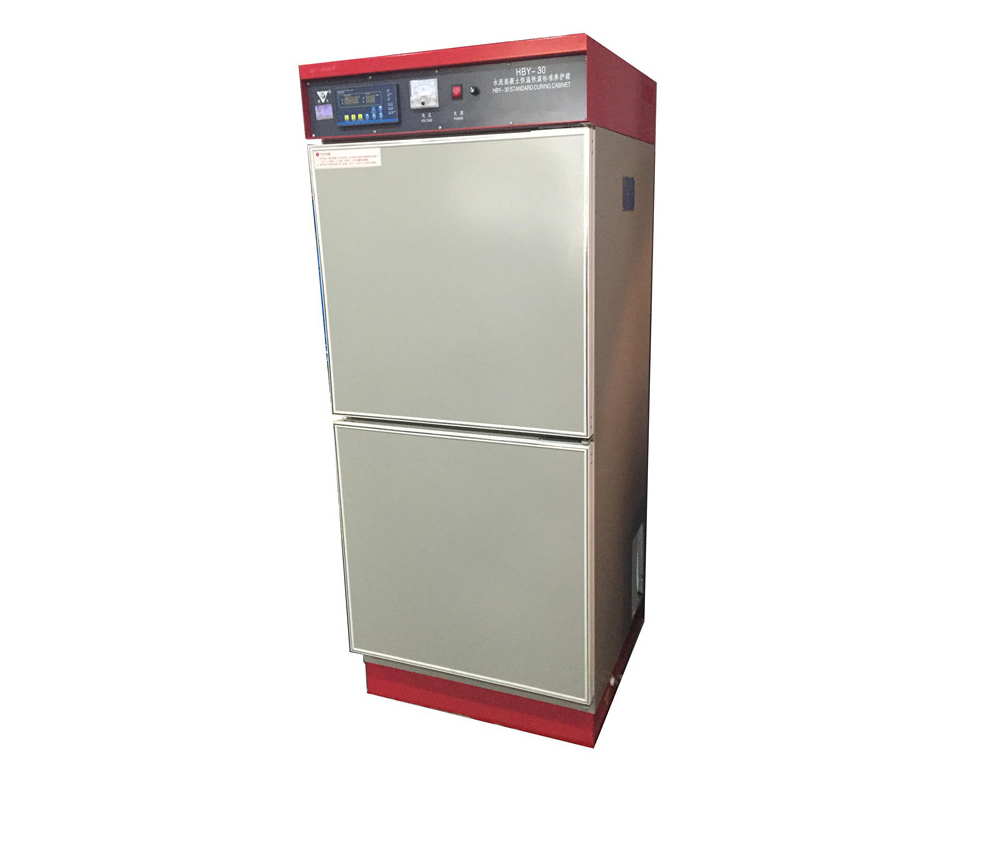

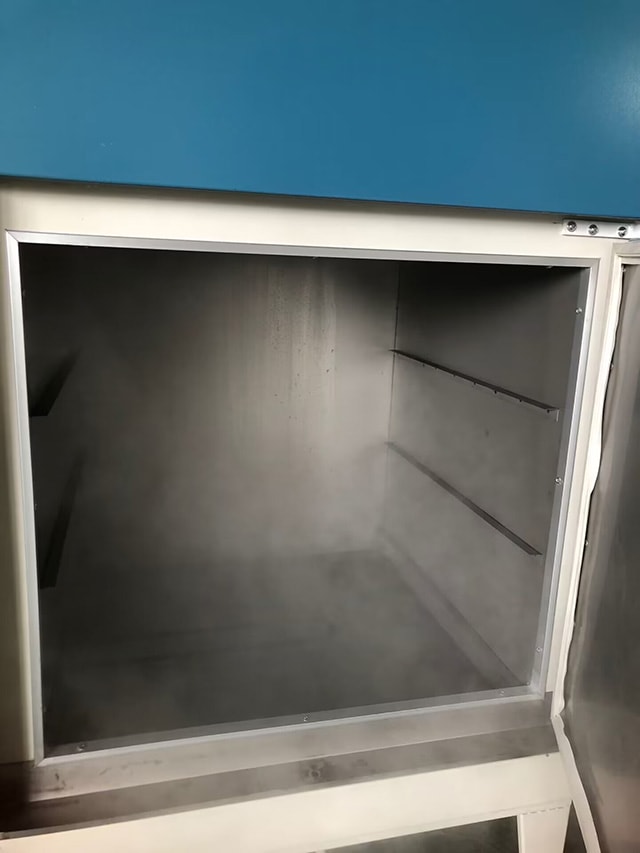

HBY-40A Curing Cabinet
HBY-40A Curing Cabinet is used for curing the test specimens of cement, concrete and cement elements. This chamber can maintain test samples at a specific temperature and humidity level.
Technical Parameters
| Product model | HBY-40A |
| Effective capacity | 0.4m³, 65*50*130cm |
| Temperature control | 0~20°C |
| Temperature variation | ±1°C |
| Humidity control range | ≥95% |
| Heating power | 400W |
| Refrigeration duty | 152W |
| Power | 220V±22V, 50Hz |
| Outside dimension | 77x70.5x179cm |
| Net weight | ≈170kg |

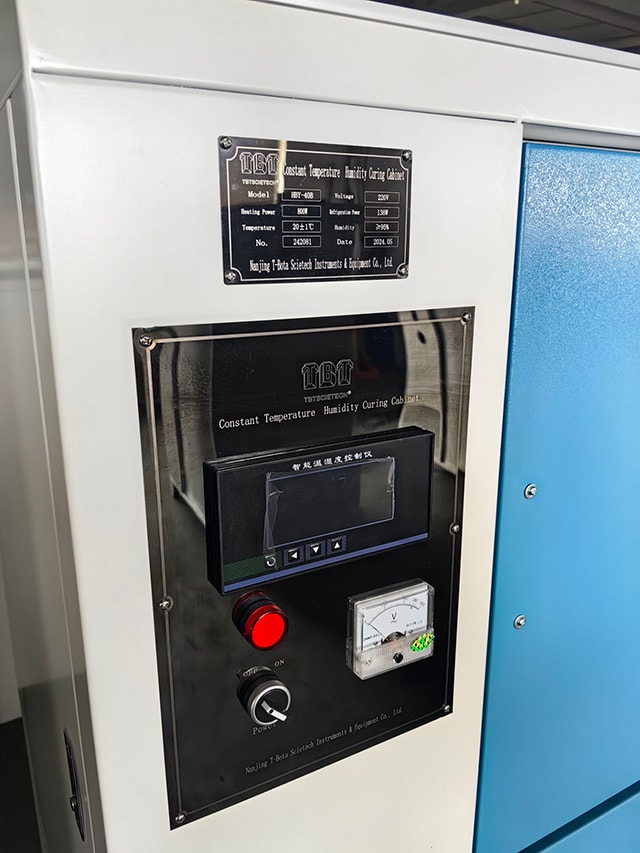

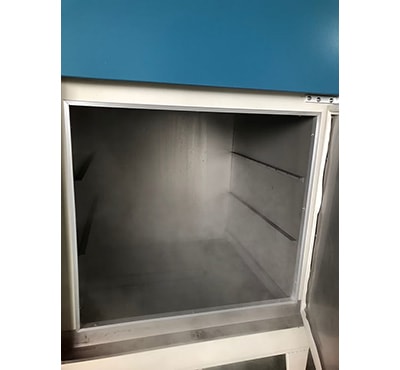

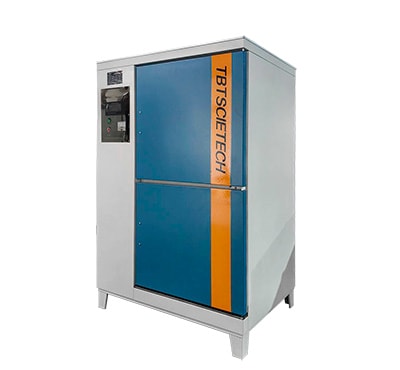

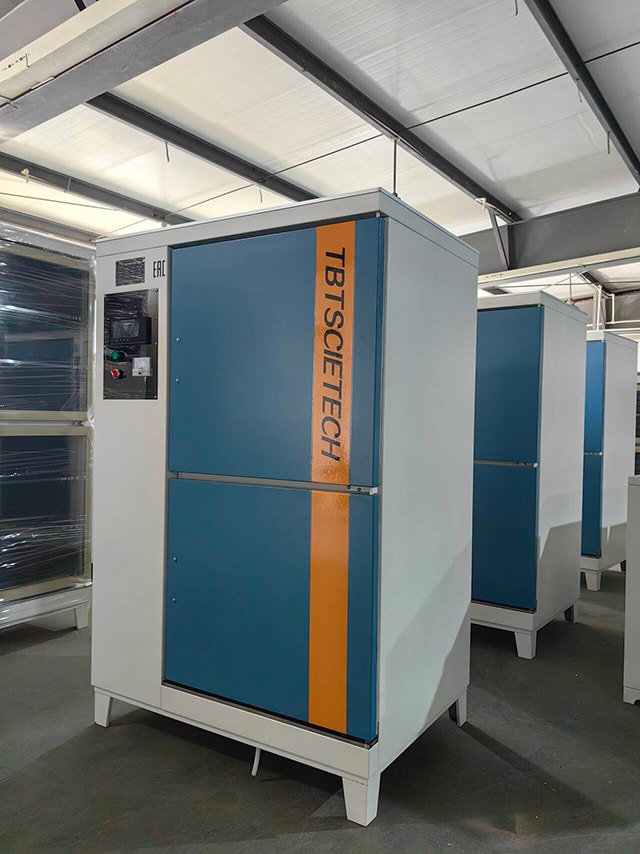

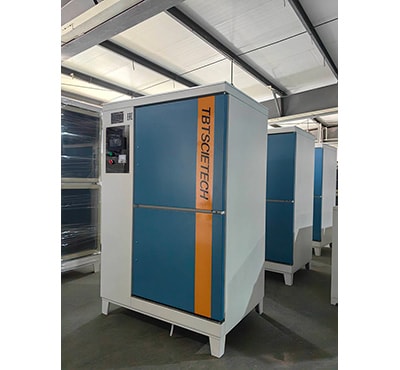

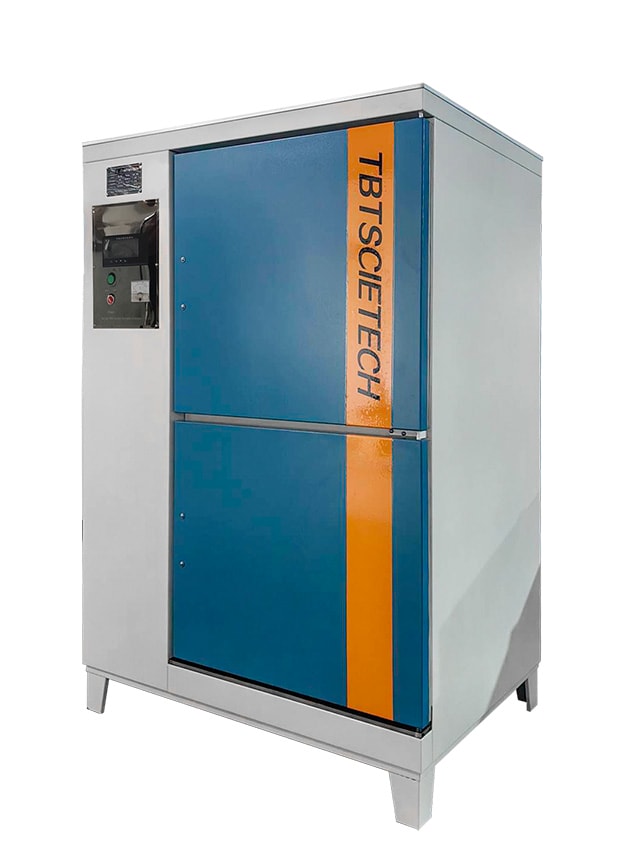

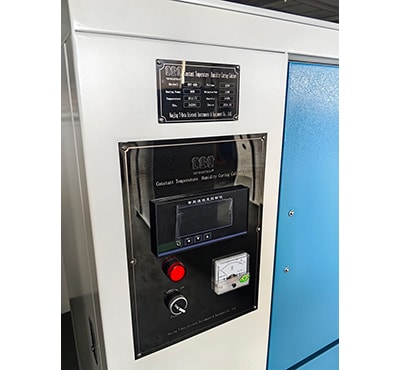

Temperature and Humidity Curing Cabinet, HBY-40B
The curing cabinet can be used to cure concrete and cement specimens for strength test in a laboratory setting at cement plants, concrete batching plants, schools, universities, etc.
Related standards: ASTM C109, ASTM C511
Specifications
| Product model | HBY-40B |
| Effective volume | 0.39m³/390L 59 × 57 x 118cm 40 × 40 × 160mm, 108pcs 100 × 100 × 100mm, 72pcs 150 × 150 × 150mm, 54pcs |
| Set temperature & accuracy | 20°C±1°C |
| Temperature & humidity control mode | Automatic |
| Humidity | ≥95% |
| Refrigeration & heating power | 138W & 800W |
| Power supply | 220V, 50Hz |
| Dimensions (L×W×H) | 100 × 70 × 153cm |
| Net weight | Approx. 140kg |
| Shelves | 6 large shelves |

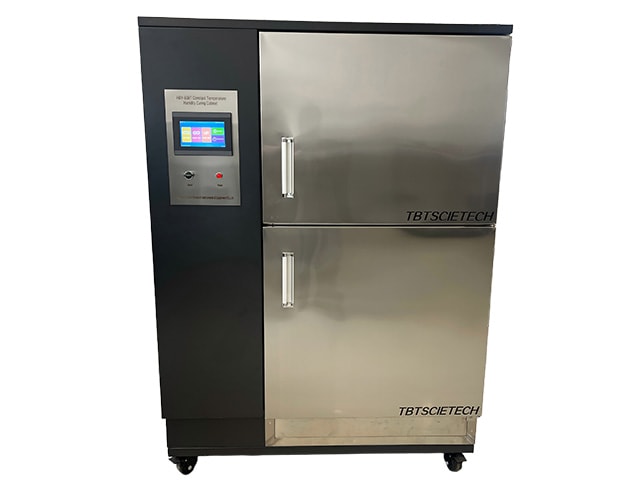

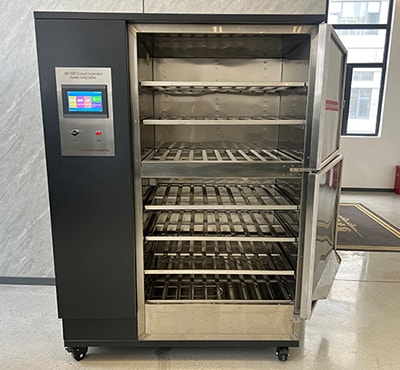

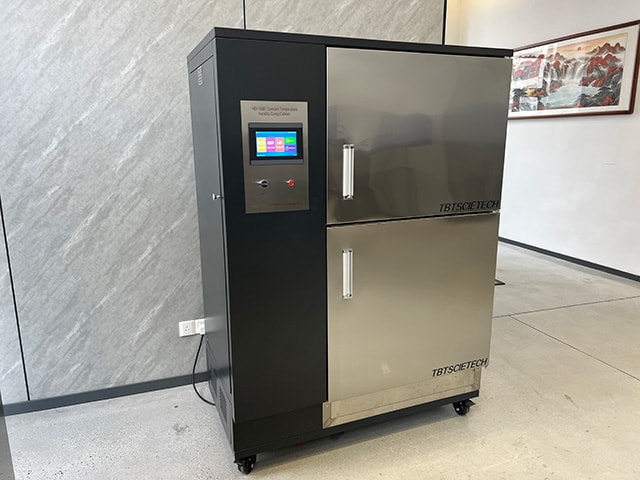

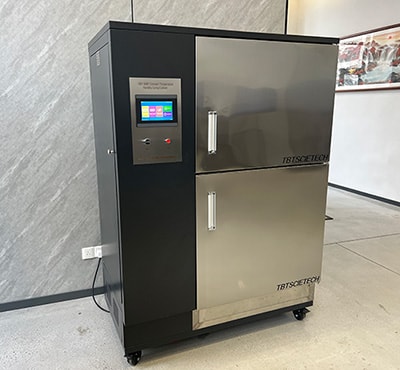

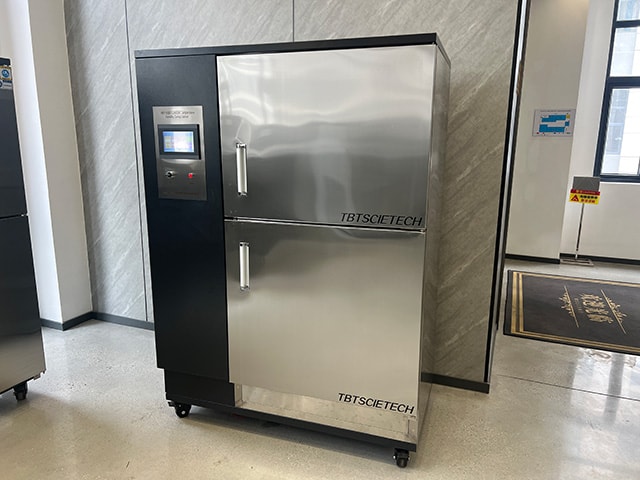

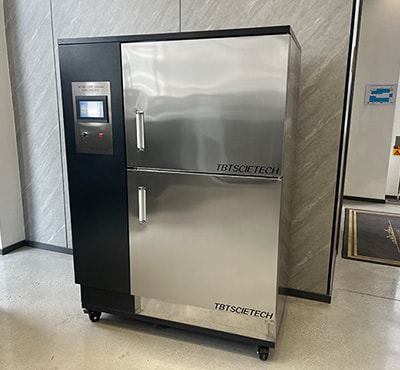

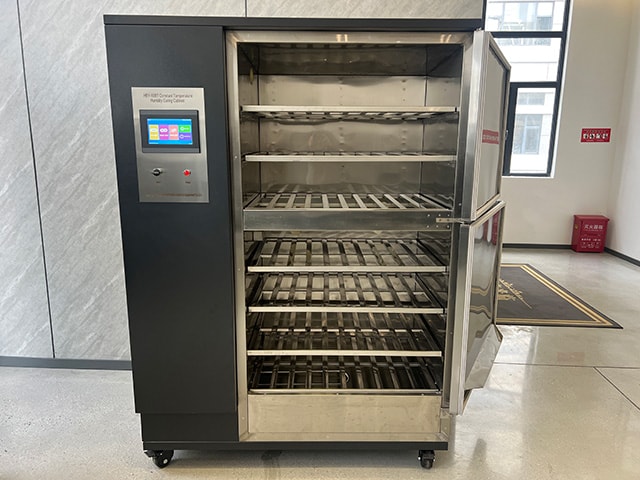

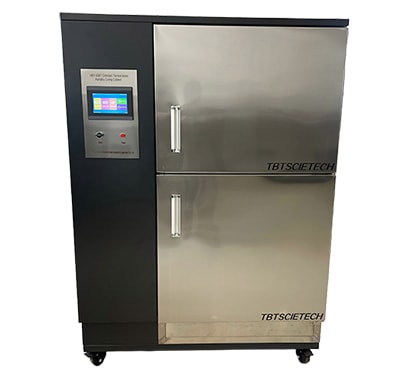

Temperature and Humidity Curing Cabinet, HBY-60BT
The curing cabinet is designed for curing concrete and cement specimens for strength test in a laboratory setting at cement plants, concrete batching plants, schools, universities, etc.
Related Standards: GB17671-1999, ASTM C109, ASTM C511
Specifications
| Product model | HBY-60BT |
| Effective volume | Approx. 0.73CBM/730liter |
| Temperature control | 20°C |
| Curing room temperature difference | ±1°C |
| Temperature control accuracy | ±0.1°C |
| Temperature control mode | Automatic |
| Humidity control mode | Automatic |
| Humidity | ≥95% |
| Temperature sensor | PT100 |
| Protection measures | 1. Fast-acting fuse 2. Compressor high pressure protection |
| Materials | 1. Inner box material: SUS304-2B high-grade stainless steel plate; 2. Outer box material: high-grade stainless steel and electrostatic spraying; 3. Insulation layer: integrally foamed polyurethane insulation, the insulation layer is 40mm thick. 4. Heater: customized stainless steel air heater. 5. Humidifier: customized ultra-fine atomizing humidifier. |
| Power supply | AC220V±22V 50Hz |
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
