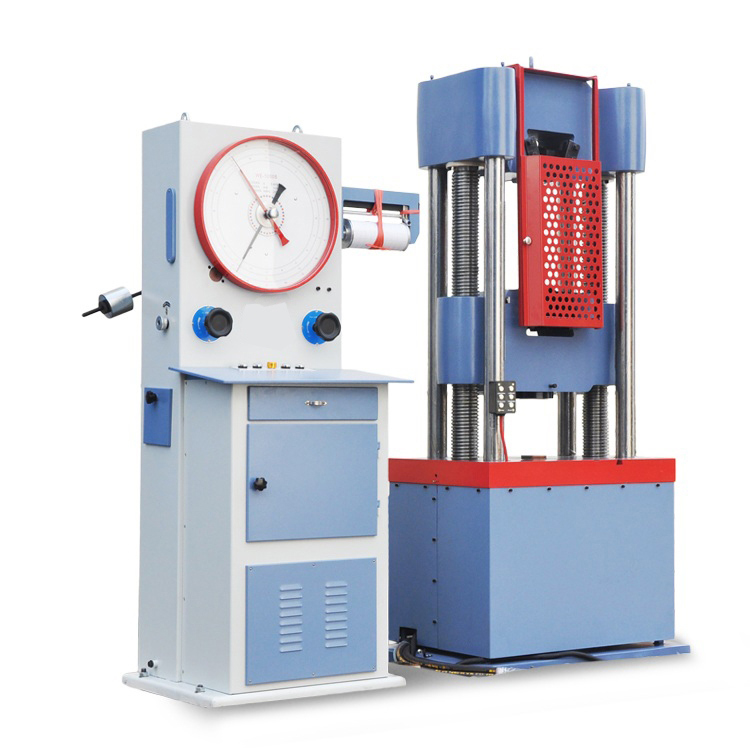

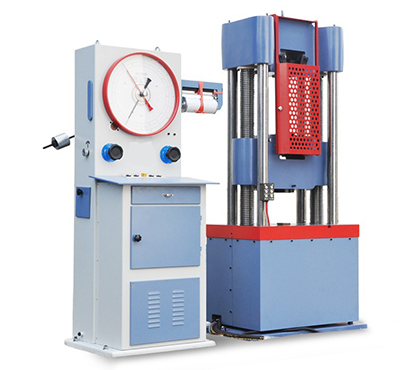

Universal Testing Machine with Dial Gauge
This product has been discontinued and removed from our shelves.
Model : TBTUTM-1000D
The testing machine is mainly designed for metal of tension test, compression test and bending test, also for non-metal of compression test, such as concrete and stone.
Technical Parameters
| Max Capacity (kN) | 1000 | |
| Measuring Range (kN) | 0 ~ 200 , 0 ~ 500, 0 ~ 1000 | |
| Accuracy (from 20% of the full testing range) | Grade 1 | |
| Time for Load Maintained (s) | ≥ 30s | |
| Max. distance between flexible clips (including ram travel) | 600 | |
| Distance between upper and lower platens | 0 ~ 600 | |
| Distance between two fulcrums of bending test | 100 ~ 420 | |
| Cliping diameter for round specimen | Φ20 ~Φ60 | |
| Cliping thickness for flat specimen | 0 ~ 40 | |
| Max. ram travel (mm) | 200 | |
| Max rising speed of the ram (without load mm/min) | 0 ~ 80 | |
| Dimensions (L*W* H) | Main frame (mm*mm*mm) | 960*620*2150 |
| | Console (mm*mm*mm) | 600*660*1780 |
| Net Weight (Kg) | Main frame | 2200 |
| | Console | 400 |
