Wheel-Tracker

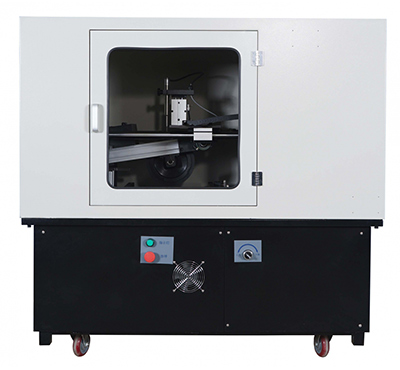

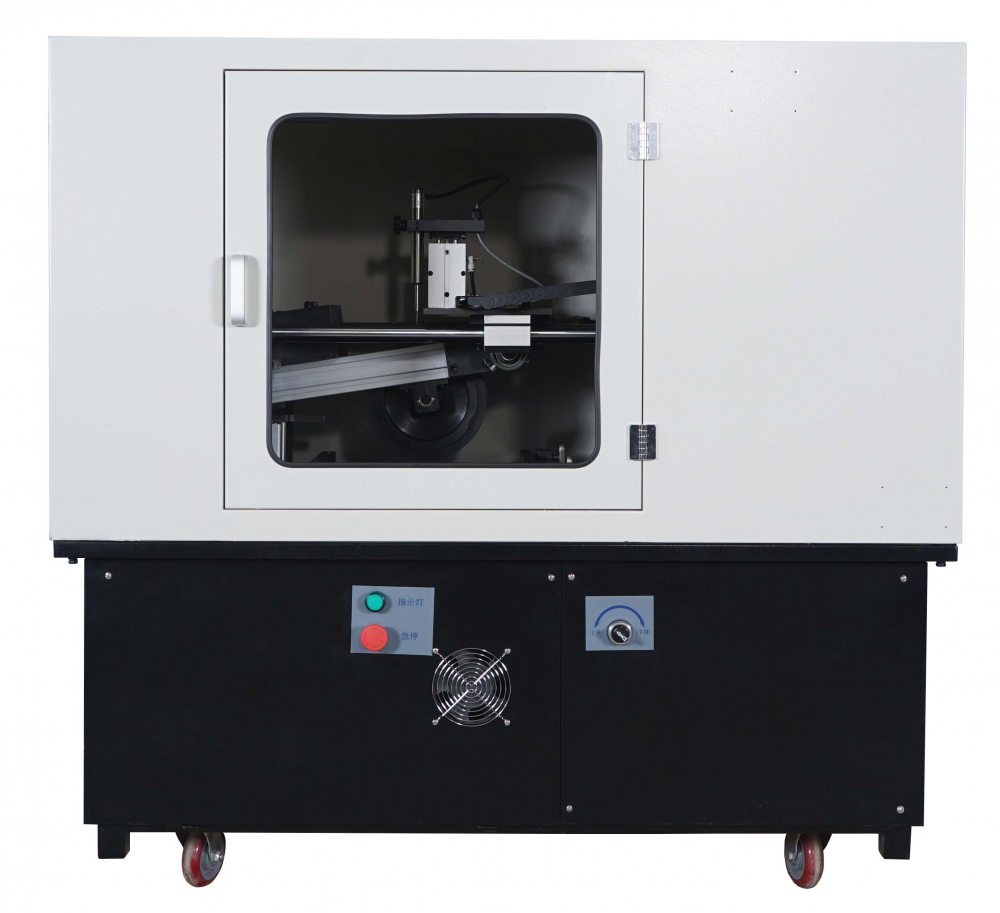

TBTACZ-1 Automatic Wheel-Tracker

TBTACZ-1 wheel tracker is designed to evaluate the anti-rutting ability of asphalt mixture at high temperature and help with the ratio design of asphalt mixture.

Technical Parameters

Wheel walking speed	42±1times/min (one way)
Wheel walking distance	230±10mm
Wheel rubber hardness (international standard hardness)	78±2 (60℃)
Ground pressure with test specimen	0.7 ± 0.05MPa
Specimen size	300x300x50mm
Displacement measurement range	0~30mm
Displacement measurement accuracy	less than 0.01 mm
Wheel-track test time	20~300 min (adjustable)
Temperature range for control box (can be set)	Room temperature~80 ℃ (control accuracy: ± 0.3℃)
Power	380V, 50Hz, 3kW (need working neutral wire)

Inquiry

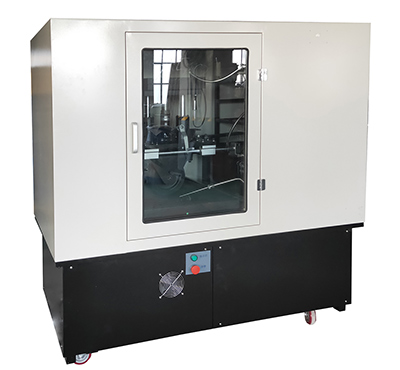

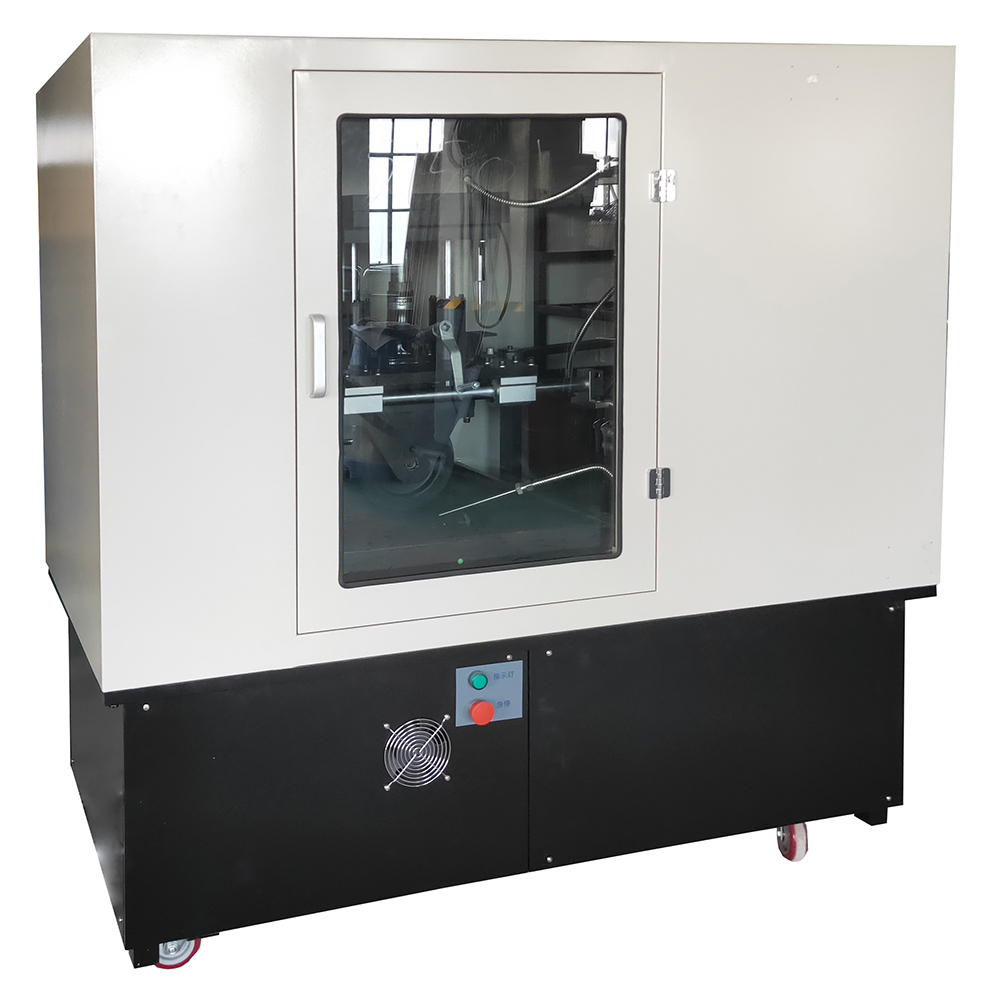

TBTACZ-5 Automatic Wheel-Tracker

TBTACZ-5 wheel tracker is intended for evaluating the anti-rutting ability of asphalt mixture at high temperature and helping with the ratio design of asphalt mixture.

Technical Parameters

Working mode	Water immersion test and non-immersion test
Temperature measurement accuracy	±0.1°C
Ambient temperature control accuracy	±1°C
Number of temperature measurement channels	2
Displacement measurement accuracy	±0.01mm
Displacement measurement range	0~30mm
Temperature setting range	40°C~80°C

Inquiry

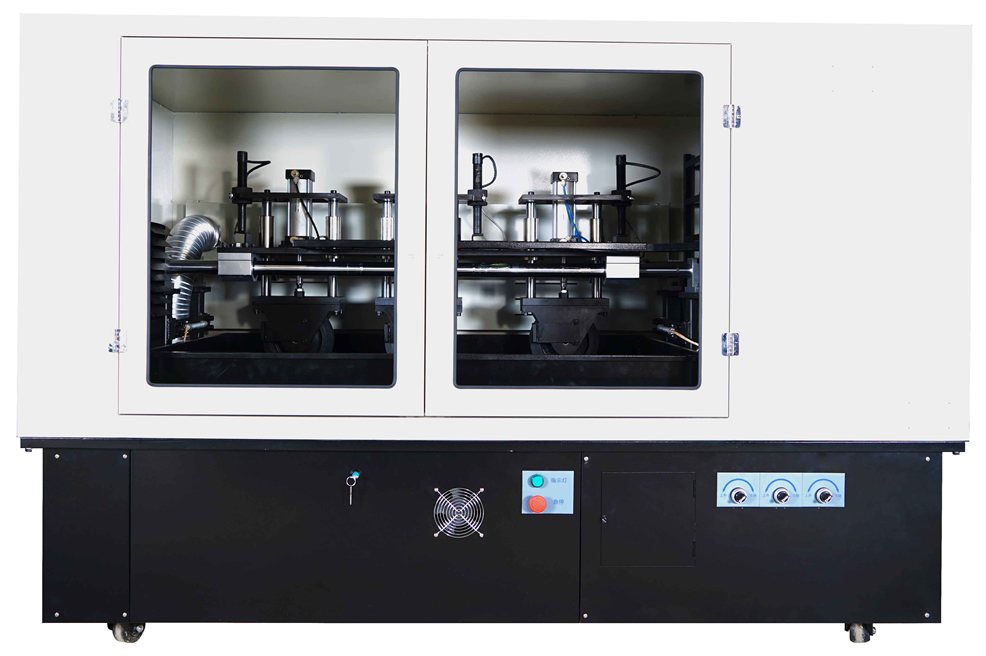

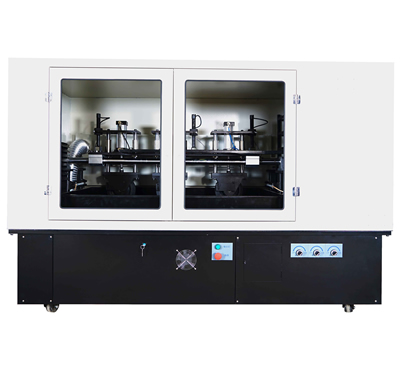

TBTACZ-5C Wheel-Tracker

It is mainly used for the determination of the high temperature anti-rutting ability of the asphalt mixture, and can also be used for the auxiliary inspection of the asphalt mixture ratio design.
It provides a lot of real and effective data for the domestic industry standard of the instrument prepared by the Ministry of Communications. Our institute is the main unit of the People's Republic of China Transportation Industry Standard (JT\T670-2006) rutting test machine.

Technical Parameters

Displacement detection range	0 ~ 30 mm.
Deformation detection accuracy	±0.05 mm, resolution 0.001 mm.
Temperature control range	40 ~ 80 °C (arbitrarily adjustable).
Temperature control accuracy	± 1 ° C, resolution 0.1 °C.
Test piece height	300 mm × 300 mm × (50-100) mm.
Rubber hardness of test wheel (international standard hardness)	78±2 (60°C)
Test wheel grounding pressure	0.7MPa±0.05MPa.
trolley walking speed	42 times / min ± 1 time / min.
trolley walking distance	230±10 mm
rutting test time	20---600 min (arbitrarily adjustable)

Inquiry
