Rebar Corrosion Detector

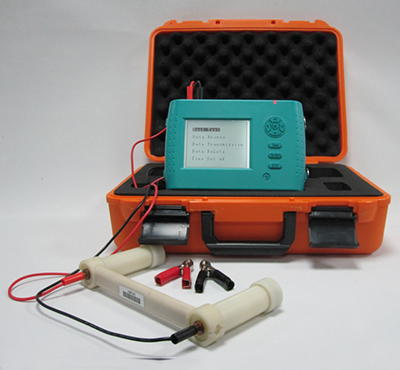

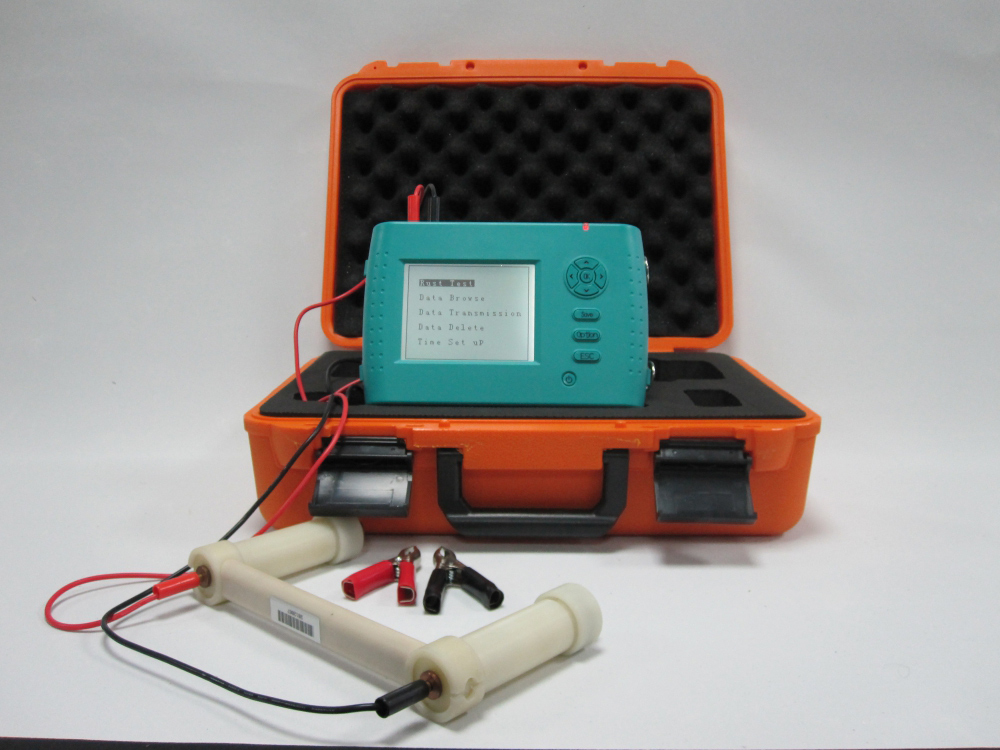

XS-100 Rebar Corrosion Detector
XS-100 rebar corrosion detection is a non-destructive testing instrument that measures rebar corrosion in the concrete structure. This rebar corrosion detector uses electrochemistry method tuo support corrosion detection, data analysis, storage and output.
Technical Parameters
| Potential electrode | Φ37X127mm |
| Electrode weight | 200g |
| Power supply | Alkaline cell X 6 |
| Potential measurement range | ±1999mV |
| Test accuracy | 1mV |
| Distance of test point | 0~1000mm |
| Data storage capacity | 50000 test points, 5000 test areas |
| Usage temperature range | -10℃~40℃ |
| Dimension | 220x145x60mm |
Standard accessories
- Main unit
- Signal transmission line
- Lateral device
- USB data line
- Clamp
- Manual
- Software

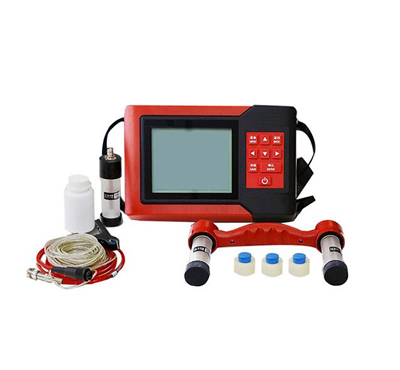

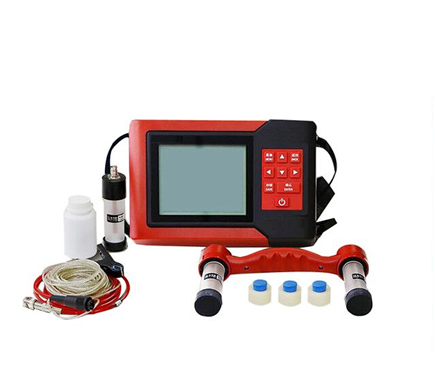

C310A Rebar Corrosion Detector
By using the electrode polarization theory, C310A rebar corrosion detector tests the potential of concrete surfaces through a Cu/CuSO4 reference electrode, and determines the level of rebar corrosion with the commonly used natural potential method.
Technical Parameters
| Measuring range | ±1000mV |
| Accuracy | 0.1mV |
| Power | Built-in chargeable lithium battery, standby time>40 hours |
| Data storage | 234 points |
| Screen | 160×128mm LCD |
| Electrode size | φ30×180mm |
| Test area | 234m2 |
| Dimension | 212×134×50mm |
| Weight | 0.9kg |
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
