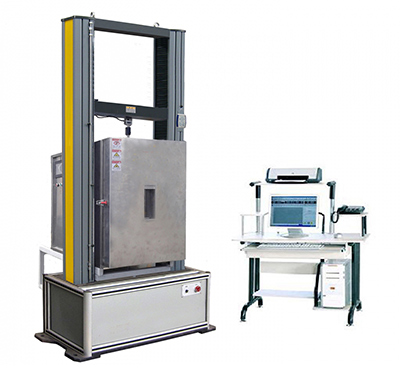

TBTWDW-LQ100 Asphalt Mixture Testing Machine at High and Low Temperature

TBTWDW-LQ100 bituminous mixture testing machine is intended for tensile, compression, bending tests for highway engineering asphalt, asphalt mixtures at -15℃~+60℃.

This asphalt testing machine is widely applied to modified asphalt, elastomer modified asphalt, asphalt base, petroleum asphalt, liquid petroleum asphalt, emulsified asphalt, hot-mixed bituminous mixtures, cold-mixed bituminous mixtures, modified asphalt mixtures, flexible base, semi-rigid base, rigid base, asphalt pavement, etc.

Technical Parameters
No. Item Specification
1 Max. test force 100kN
2 Load class Class 0.5
3 Measuring range of load 1%-100%
4 Relative error of indication Within ±1.0%
5 Load resolution 1/±300000FS
6 Measuring range of deformation 0.2%-100%
7 Adjusting range of load rate 0.005%-5%FS/S
8 Control precision of load rate Within ±1%
9 Adjusting range of deformation rate 0.005-5%FS/S
10 Control precision of deformation rate Within ±1%
11 Adjusting range of displacement rate 0.001-500mm/min
12 Control precision of displacement rate Within ±0.2% of the set value
13 Stroke of cross head (without grips) 1400mm
14 Effective test span 610mm
16 Control mode Computer control
17 Power supply Loading frame: 220VAC, 50Hz Test chamber: 380VAC, 50Hz
18 Power 2.0kW+6.0kW
19 Dimension (LxWxH) 1080x2100x2320mm
High and Temperature Test Chamber (movable and long-time test)
20 Working temperature/control accuracy -15℃~+60℃/±0.5℃
21 Heating/cooling mode Heating by resistance wire/ cooling by liquid nitrogen injection/air circulation
22 Heating/cooling rate RT+10℃~60℃/approx. 40min RT+10℃~-15℃/approx. 20min
23 Working room dimension 450mm(W)x500mm(H)x400mm(D)
24 Chamber type Made of stainless steel, inside with observation window, with lighting

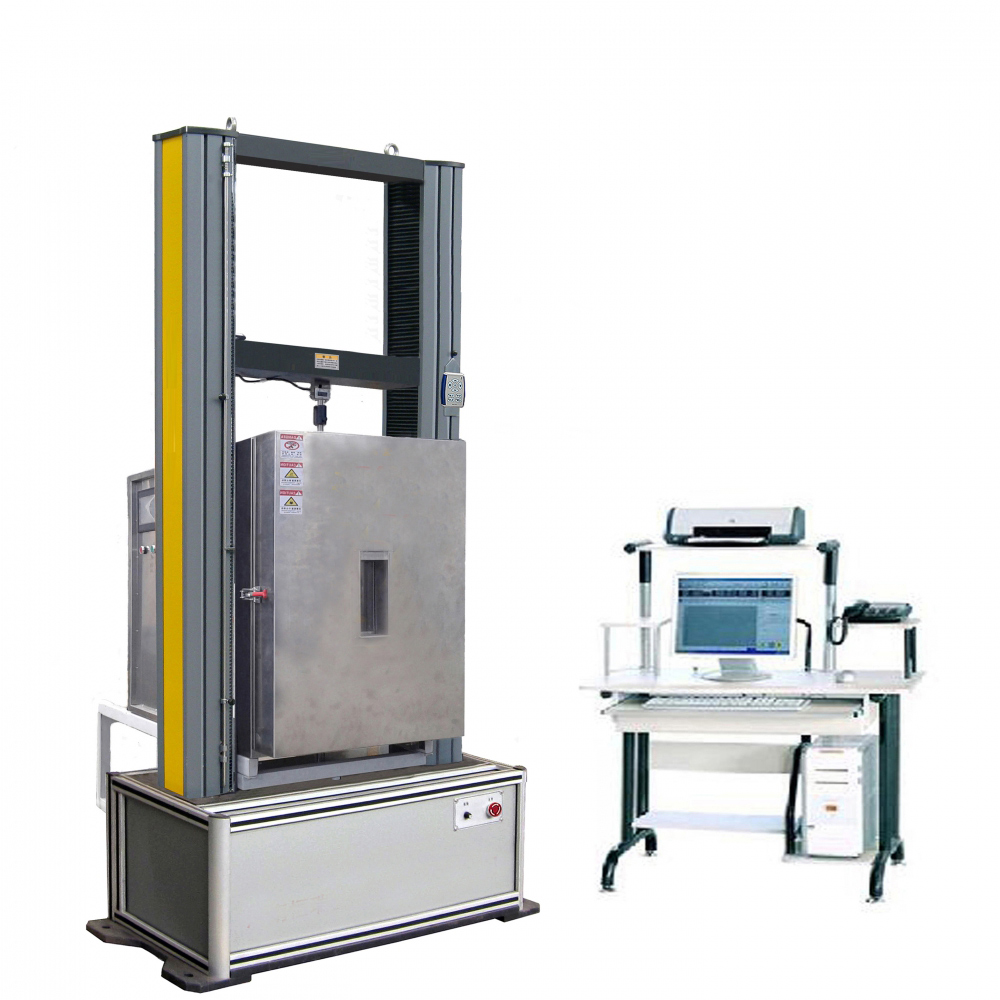

TBTWDW-LQ100 Asphalt Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
