Compression and Flexural Testing Machine

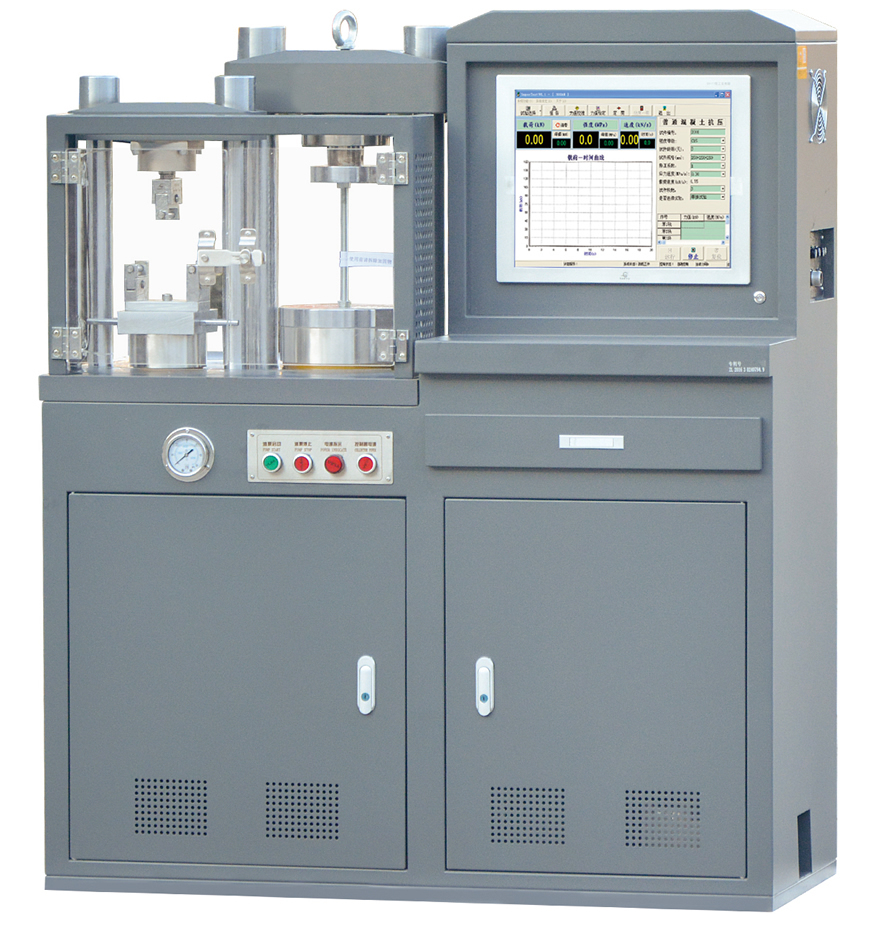

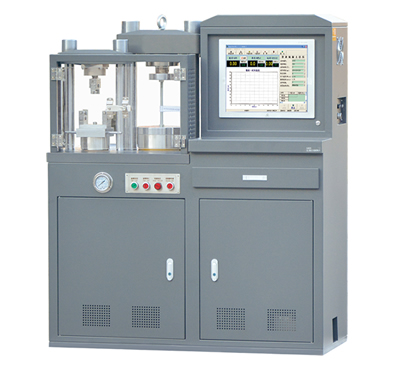

TBTCTM-300BSI compression and flexural testing machine is designed with dual testing chamber. Two independent load cells help with measurement. This testing machine is driven by hydraulic system which is close-loop controlled by computer servo technology.
| Accuracy class | 1 |
| Capacity (compression) | 300kN |
| Capacity (bending) | 10kN |
| Compression space (bending) | 180mm |
| Piston stroke (bending) | 60mm |
| Compression space (compression) | 180mm |
| Piston stroke (compression) | 80mm |
| Compression plate size | Φ120mm |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Industrial PC | 1pc |
| 3 | Wireless keyboard and mouse | 1pc |
| 4 | Printer | 1pc |
| 5 | Operation manual | 1pc |
| 7 | Certificate of quality | 1pc |
| 8 | 40*40mm compression jig | 1pc |
| 9 | 40*40*160mm flexural jig | 1pc |

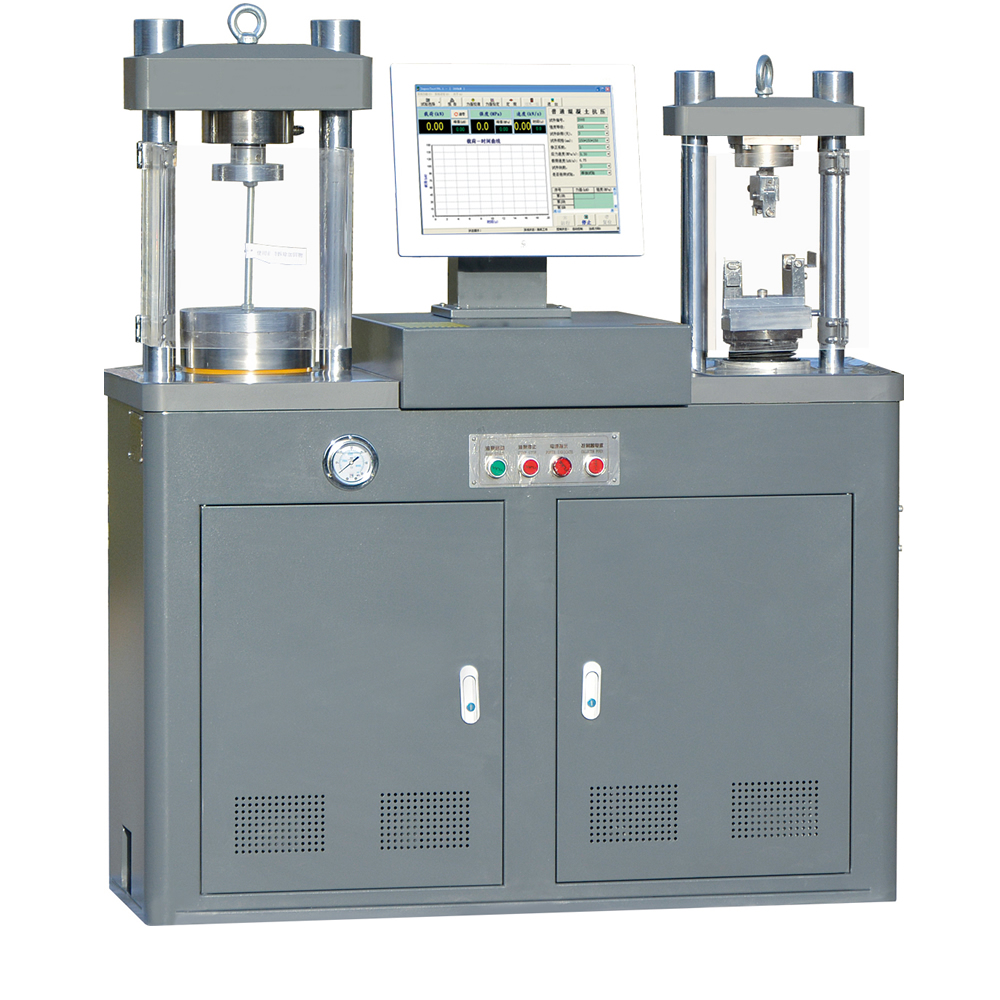

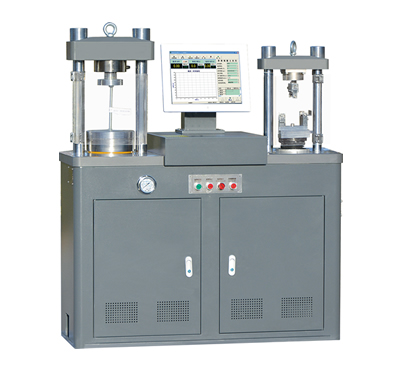

TBTCTM-300BS compression and flexural testing machine is designed with dual testing chamber, incorporated with two independent load cells for measurement. It is driven by hydraulic system which is close-loop controlled by computer servo technology.
| Accuracy class | 1 |
| Capacity(compression) | 300KN |
| Capacity(bending) | 10KN |
| Compression space(bending) | 180mm |
| Piston stroke(bending) | 60mm |
| Compression space(compression) | 180mm |
| Piston stroke(compression) | 80mm |
| Size of compression plates | Φ120mm |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Industrial PC | 1pc |
| 3 | Wireless keyboard and mouse | 1pc |
| 4 | Printer | 1pc |
| 5 | Operation manual | 1pc |
| 7 | Certificate of quality | 1pc |
| 8 | 40*40mm compression jig | 1pc |
| 9 | 40*40*160mm flexural jig | 1pc |

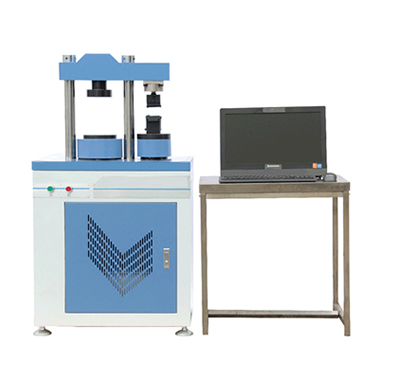

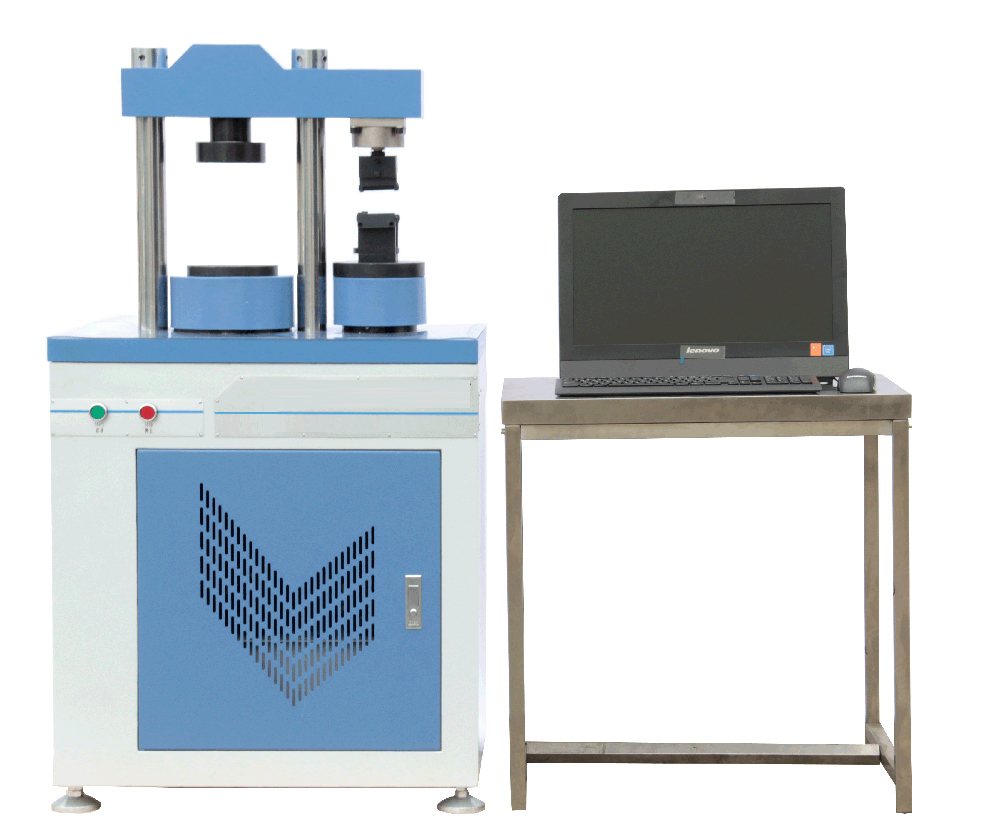

TBTCTM-300BI compression and flexural testing machine contains with two loading chambers with two independent measurement scales, which is used to perform compression and flexure tests on cement mortar and concrete. Driven by hydraulic system which is close-loop controlled by computer, this testing machine can apply loads to the test specimen at a uniform rate.
| Max. capacity | 300kN |
| Max. flexure test force | 10kN |
| Relative error | ±1% |
| Load rate for compression test | 0.3-5.0kN/s |
| Load rate for flexure test | 0.01~0.075kN/s |
| Motor power | 0.75kW |
| Working environment | 10~35℃ |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Lenovo PC and desk | 1pc |
| 3 | Keyboard and mouse | 1pc |
| 4 | Printer | 1pc |
| 5 | Operation manual | 1pc |
| 7 | Certificate of quality | 1pc |
| 8 | 40*40mm compression jig | 1pc |
| 9 | 40*40*160mm flexural jig | 1pc |

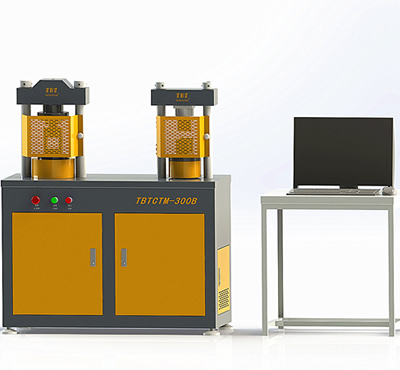

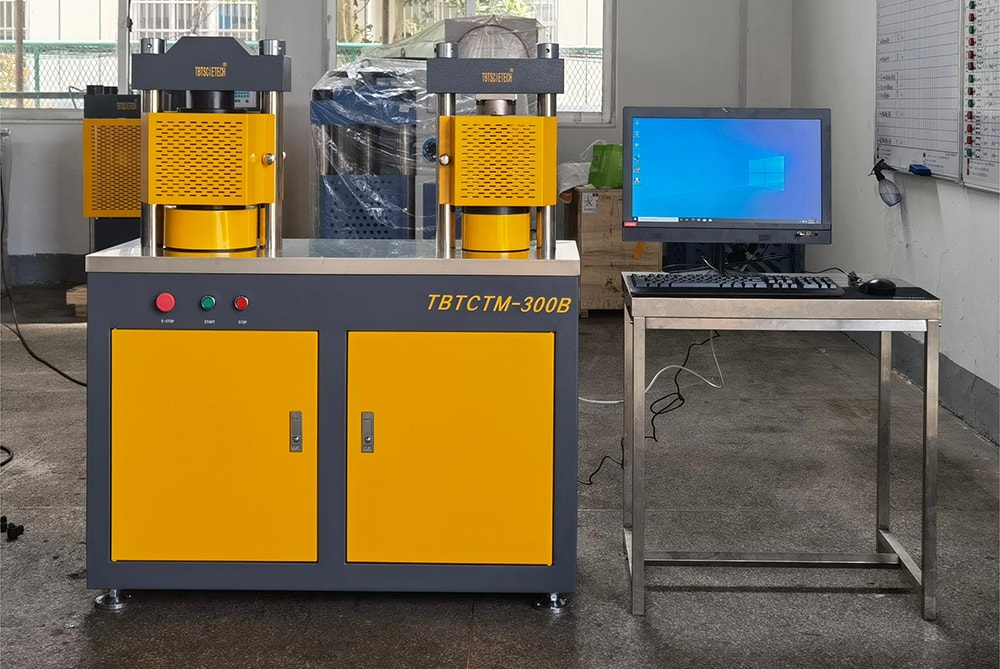

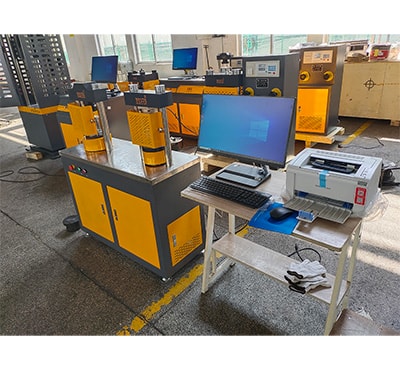

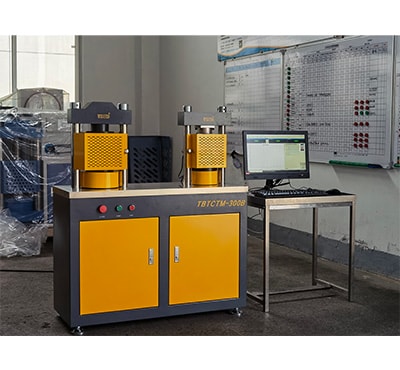

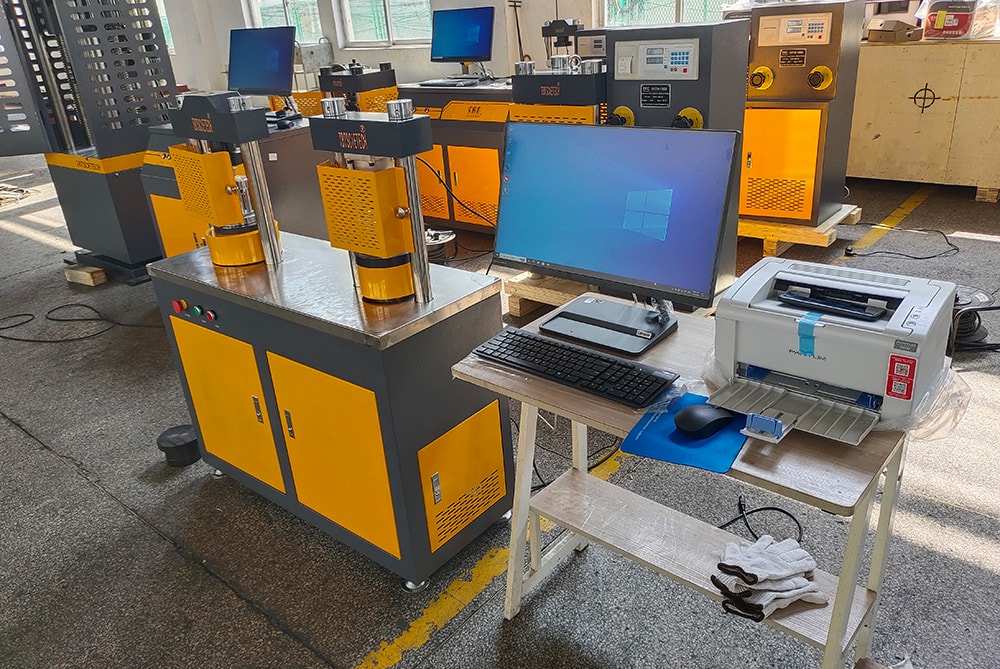

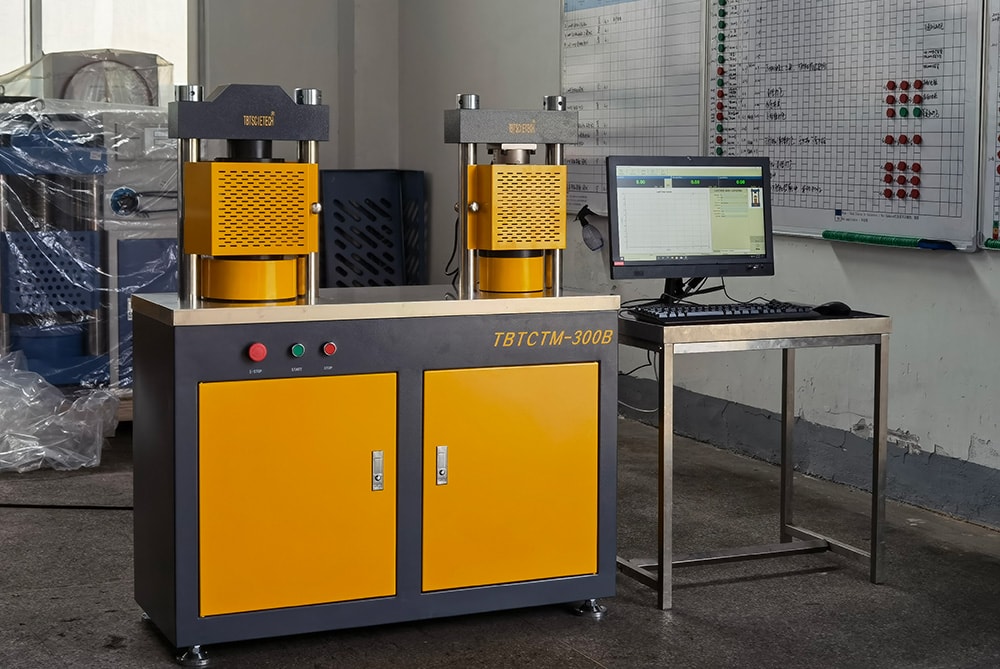

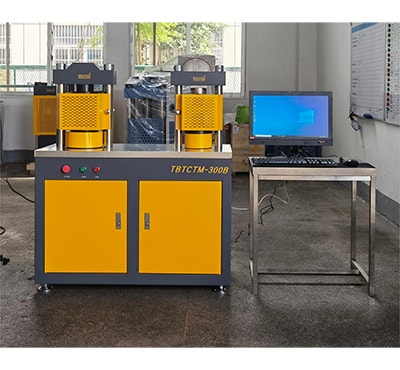

TBTCTM-300B compression and flexural testing machine is equipped with two loading chambers with two independent measurement scales, which is used to perform compression and flexure tests on cement mortar and oncrete. Driven by hydraulic system that is close-loop controlled by computer, this testing machine can apply loads at a constant rate to the test specimen. The applied load, timing and test curve are displayed on PC in real time. All collected data will be measured, saved and processed automatically.
| Max. capacity | 100kN | 300kN |
| Max. flexure test force | 10kN | 10kN |
| Relative error | ±1% | ±1% |
| Load rate for compression test | 0.3-5.0 kN/s | 0.3-5.0 kN/s |
| Load rate for flexure test | 0.01~0.075kN/s | 0.01~0.075kN/s |
| Motor power | 0.75kW | 0.75kW |
| Net weight | Approx. 500kg | Approx. 500kg |
| Working environment | 10~35℃ | 10~35℃ |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Lenovo PC and desk | 1pc |
| 3 | Keyboard and mouse | 1pc |
| 4 | Printer | 1pc |
| 5 | Operation manual | 1pc |
| 7 | Certificate of quality | 1pc |
| 8 | 40*40mm compression jig | 1pc |
| 9 | 40*40*160mm flexural jig | 1pc |

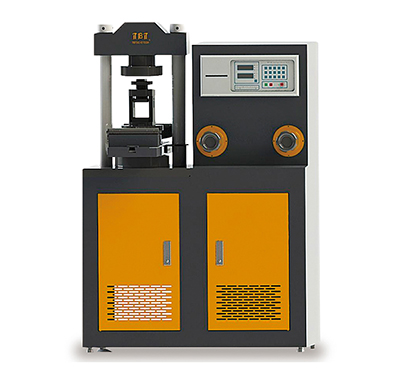

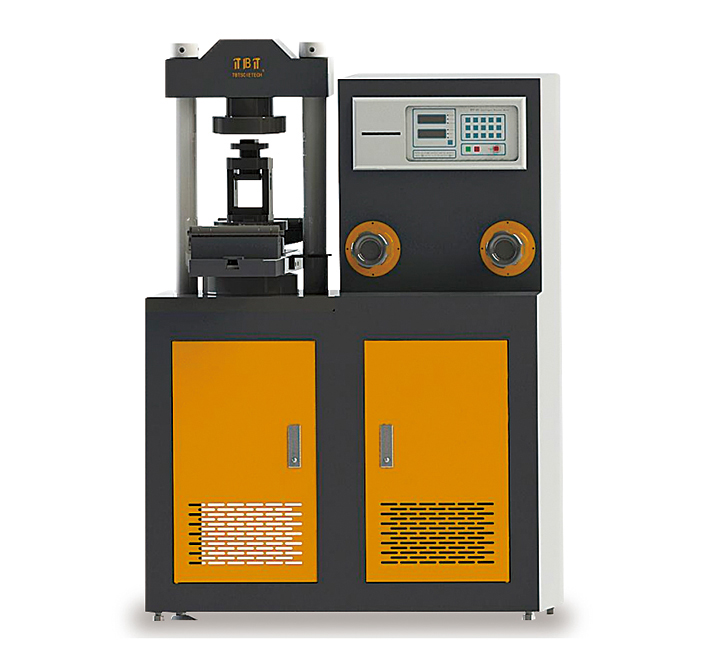

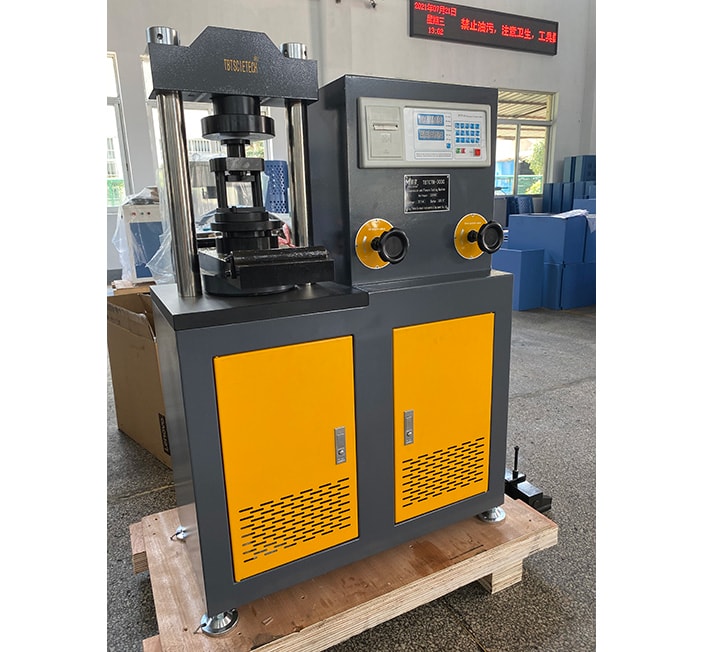

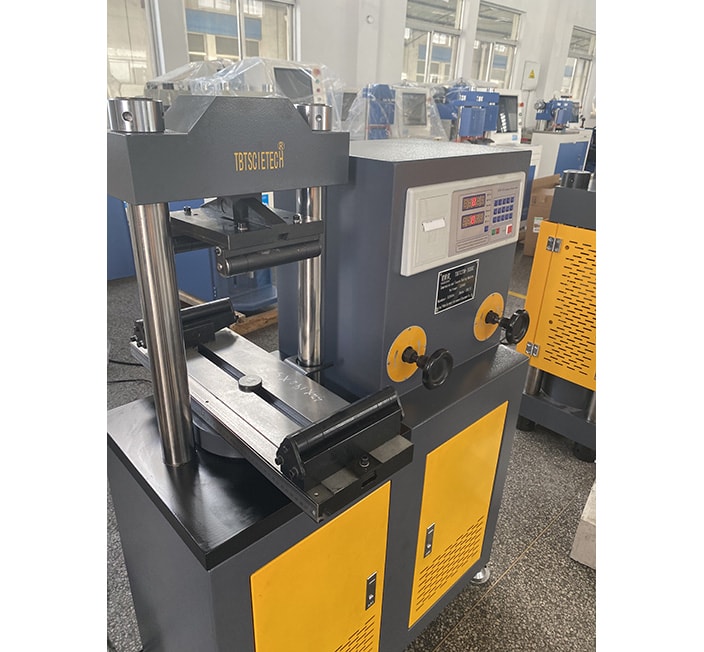

TBTCTM-100C, 300C compression and flexural testing machine is equipped with two loading chambers with two independent measurement scales. With the integrated structure, this testing machine is used to perform flexural tests on concrete specimen and compressive tests on mortar specimen.
| Max. capacity | 100kN | 300kN |
| Relative error | ±1% | ±1% |
| Rated pressure of oil pump | 25Mpa | 25Mpa |
| Diameter of bearer | Ф30mm | Ф30mm |
| Max. dis between upper and lower flexural bearers | 155mm | 155mm |
| Central distance between upper flexural bearers | 150mm | 150mm |
| Central distance between lower flexural bearers | 450mm | 450mm |
| Upper and lower platen dimension | Ф120, Ф210mm | Ф120, Ф210mm |
| Max. vertical clearance between platens | 175mm | 175mm |
| Max. travel of piston | 80mm | 80mm |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Digital display controller | 1pc |
| 3 | Micro printer | 1pc |
| 4 | Operation manual | 1pc |
| 5 | Certificate of quality | 1pc |
| 6 | 40*40mm compression jig | 1pc |

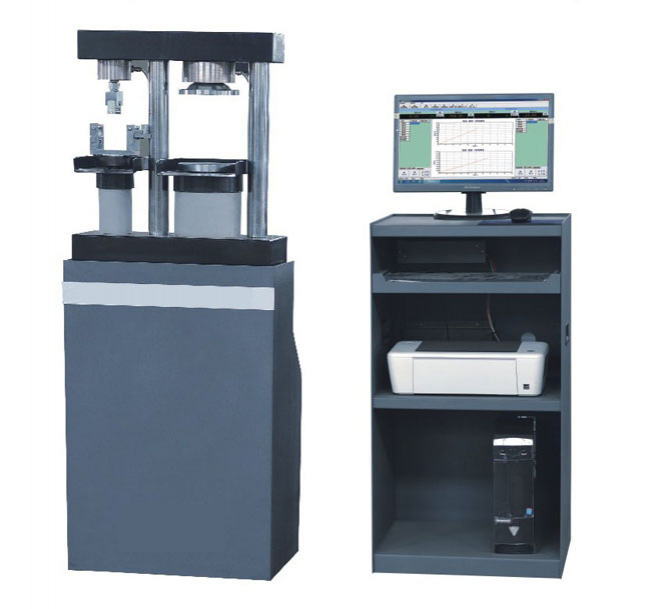

| Max. test force | Compression 300kN, flexure 10kN |
| Measuring range | 1%-100% F.S |
| Force relative error | ±0.5％ |
| Load cell | America Celtron |
| Load rate range | Compression 0.05~10kN/s, flexure 0.1~200N/s |
| Load rate error (no higher than) | ±2％ |
| Ball screw stroke | Compression: 120mm |
| Flexure: 150mm | |
| Distance between platens | 320mm |
| Motor power | Compression 400W, flexure 40W |
| Dimension | Control cabinet: 510×450×940mm |
| Main frame: 540×420×1490mm | |
| Main frame weight | 350kg |

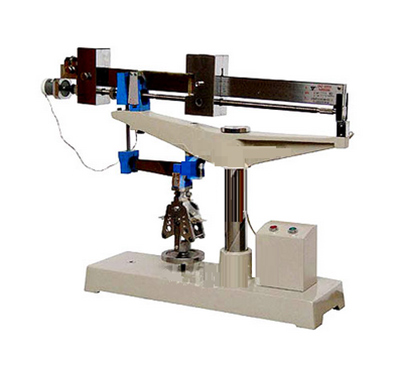

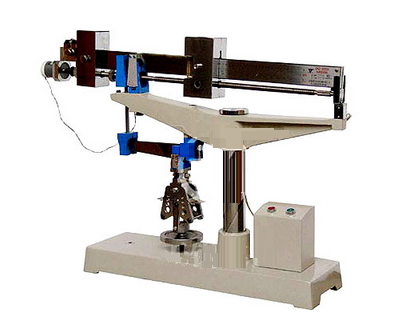

DKZ-5000 flexure testing machine is intended for flexural strength test of cement specimen and other non-metallic material.
| Max. loading capacity | Single lever: 1000N, double-lever: 5000N |
| Measuring accuracy | ±1% |
| Single lever output ratio | 10:1 |
| Double-lever output ratio | 50:1 |
| Loading speed ratio of double-lever | 50N/s |
| Support roller distance | 100±0.1mm |
| Baffle plate span | 46mm |
