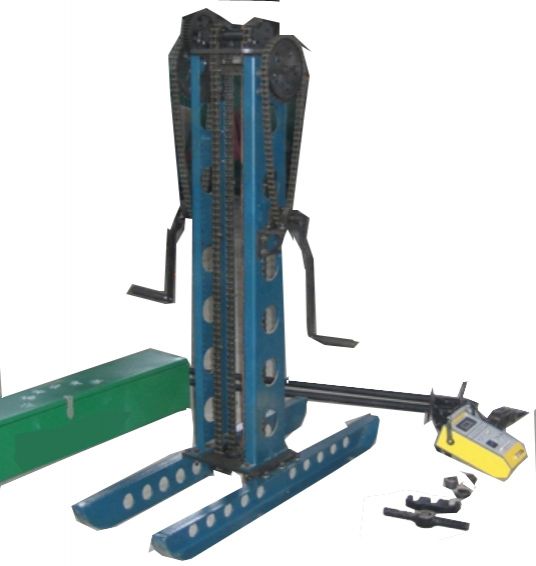

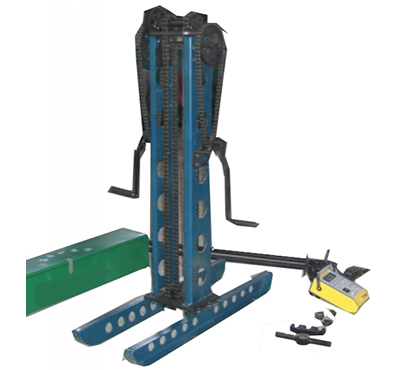

CLD-3 Static Cone Penetrometer

This CLD-3 mainly used to test geological structure of civil engineering, bridges and other projects in site, with corresponding sensors, measure physical quantities such as pressure, tension, torque, and gravity.

The instrument press a probe into soil at a uniform speed driven by mechanical transmission, It is suitable for test in soft, cohesive soil, old clay, loess, sandy soil and other strata.

Technical Parameters

Driven mode	Handle-chains type
Rated penetration capacity	30KN
Pull-out Force	40KN
Penetration depth	20 meters
Penetration speed	0.8m/min
Lifting speed	1-2m/min
Penetration rod	Φ28mm
Penetration head	10cm2, single bridge head.
Anchor Length	1.2m
Anchor Piece Diameter	120mm
Data Acquisition System	Automatic record
Net weight	About 180KGS
