Ductility Tester

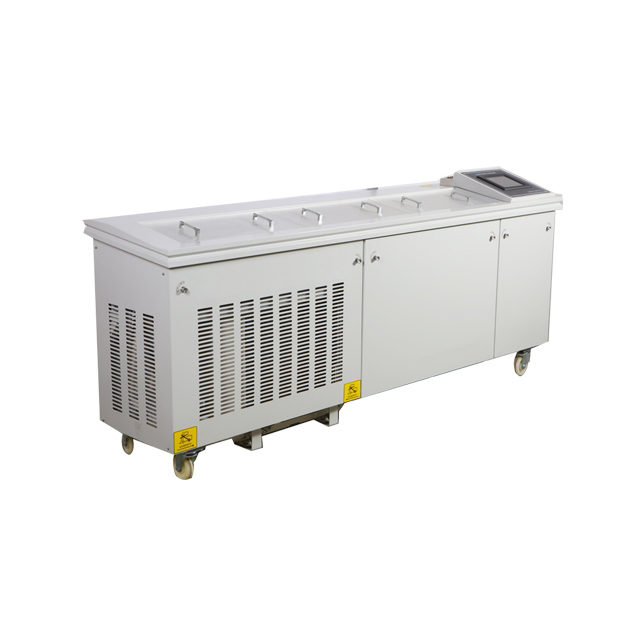

TBT-4508C Bitumen Ductility Machine
TBT-4508C ductility testing machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a specific speed and temperature. The ductility of bitumen is expressed as the distance in cms.
Technical Parameters
| Power | AC 220V (-5%~+10%), 50Hz |
| Measurement length | 1.5m (±10mm) |
| Heating mode | electric heater |
| Heating power | 4500W |
| Liquid circulation | by magnet circulation pump |
| Temperature control range | adjustable between 5℃ to 49℃, with the resolution of 0.01℃ |
| Temperature control accuracy | ±0.1℃ |
| Traction speed | 10mm/min and 50mm/min, two grades |
| Measurement accuracy | ±1 mm |
| Ductility display | digital display after data processed by a single chip machine |
| Refrigeration | compressor 1.25P, input power is 950W |
| Ambient temperature | -10℃~+35℃ |
| Relative humidity | ≤85% |
| Maximum power consumption | 5600W |
| Overall dimension | 2365mm×520mm×1000mm |

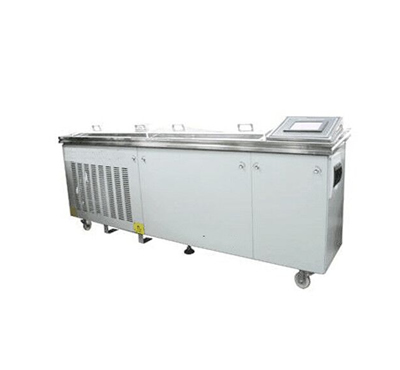

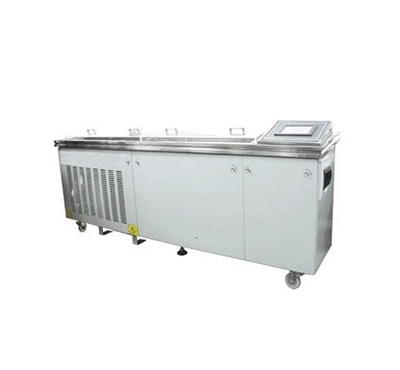

TBT-4508G Bitumen Ductility Machine
TBT-4508G ductility testing machine is intended for determining the length at which the bitumen specimen is elongated before breaking at a specific speed and temperature.
Technical Parameters
| Power | AC (220±10%)V, 50Hz |
| Measurement length | 1.5m (±10mm) |
| Heating power | 4500W |
| Temperature control | Range: 5~35℃, accuracy: ±0.1℃ |
| Traction speed | 10~50mm/min, stepless adjustment, accuracy: ±1mm |
| Traction force | Range: 0~300N, accuracy: ±1N, resolution: 0.1N |
| Data output | (1) Communication port RS232 (2) Printed by micro-printer |
| Refrigeration | Compressor 1.0P, input power is 800W |
| Working temperature | -10℃ ~+35℃ |
| Relative humidity | ≤85% |
| Maximum power consumption | 5600W |
| Overall dimension | 2365mm×530mm×1000mm |
