Universal Testing Machine with Digital Display

Model: TBTUTM-100BS/TBTUTM-300BS/TBTUTM-600BS/TBTUTM-1000BS

TBTUTM-BS series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

Technical Parameters
Model TBTUTM-100BS TBTUTM-300BS TBTUTM-600BS TBTUTM-1000BS
Max.Capacity(KN) 100 300 600 1000
Accuracy class Lever 1(0.5)
Max distance of compression plate(mm) 500 600 600 600
Max distance of tensile 600 700 700 700
Piston stoke(mm) 200 200 200 200
Diameter of round specimen (mm) Φ6-φ22 Φ10-φ32 Φ13-φ40 Φ14-φ45
Diameter of flat specimen(mm） 0-15 0-20 0-20 0-40
Maximum distance of bending test(mm) 300 300 300 300
Load control Manual
Specimen clamping method Manual Hydraulic / manual Hydraulic / manual Hydraulic / manual
Demensions of host(mm) 800*620*1850 800*620*1870 800*620*1900 900*700*2250
Demensions/Weight of Oil source cabinet 550*500*1200mm/160kg
Power(KW) 1.1 1.8 2.2 2.2
Weight of host(kg) 1400 1500 1800 2500

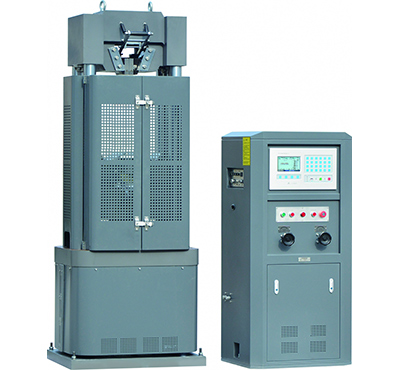

TBTUTM-BS series of Universal Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
