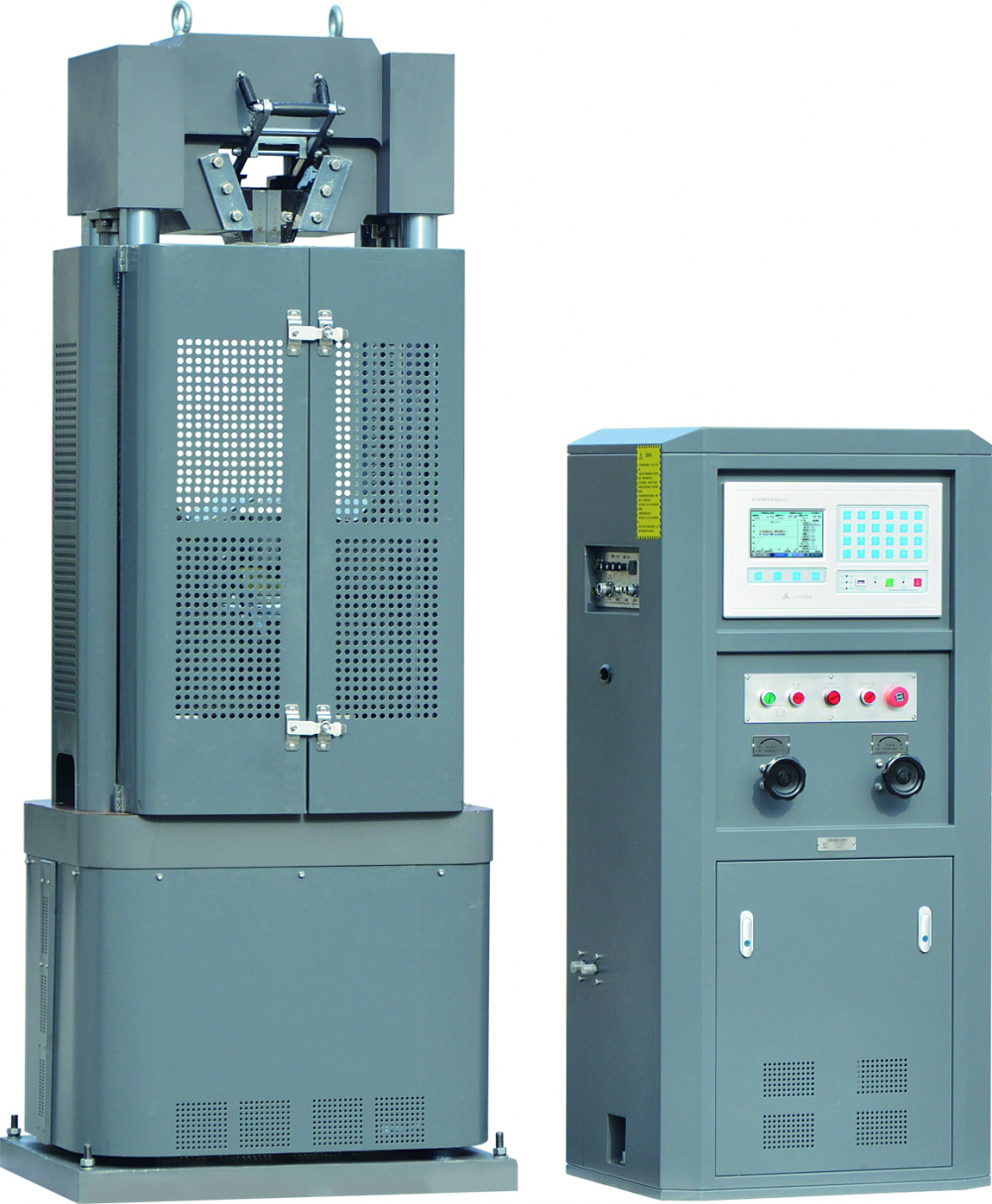

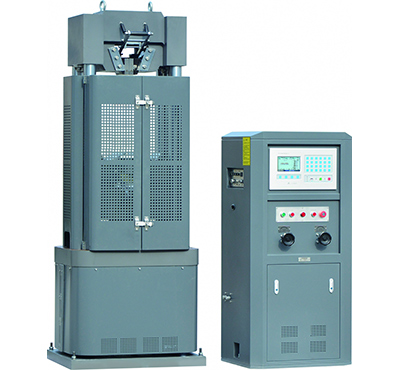

Universal Testing Machine with Digital Display

Model: TBTUTM-100BS/300BS/600BS/1000BS

TBTUTM-BS series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

This series of products consists of four-column, two-screw, double space frame structure. Measurement unit consisting of high-quality electronic components with LCD display, to ensure reliable operation and accurate measurement.

The series has test force, deformation, loading curve, automatically record test data, print the test results, you can communicate with the compute.

Technical Parameters
Model TBTUTM-100BS TBTUTM-300BS TBTUTM-600BSI TBTUTM-1000BS
Capacity 100KN 300KN 600KN 1000KN
Accuracy degree Grade 1
Distance between upper & lower platen 500mm max. 600mm max. 600mm max. 600mm max.
Tensile distance 600mm max. 700mm max. 700mm max. 700mm max.
Piston stoke 200mm 200mm 200mm 200mm
Round specimen diameter Φ6-Φ22mm Φ10-Φ32mm Φ13-Φ40mm Φ14-Φ45mm
Flat specimen diameter 0-15mm 0-20mm 0-20mm 0-40mm
The max. Distance of bending test 300mm 300mm 300mm 300mm
Load control Manual
Specimen clamping method Hydraulic
Dimension of host 800*620*1850mm 800*620*1870mm 800*620*1900mm 900*700*2250mm
Dimension of control cabinet Around 550*500*1200mm
Power 1.1KW 1.8KW 2.2KW 2.2KW
Power supply 380VAC/220VAC 380VAC/220VAC 380VAC/220VAC 380VAC/220VAC
TBTUTM-BS Series of Universal Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
