Electronic Universal Testing Machine | Engineering Lab Equipment

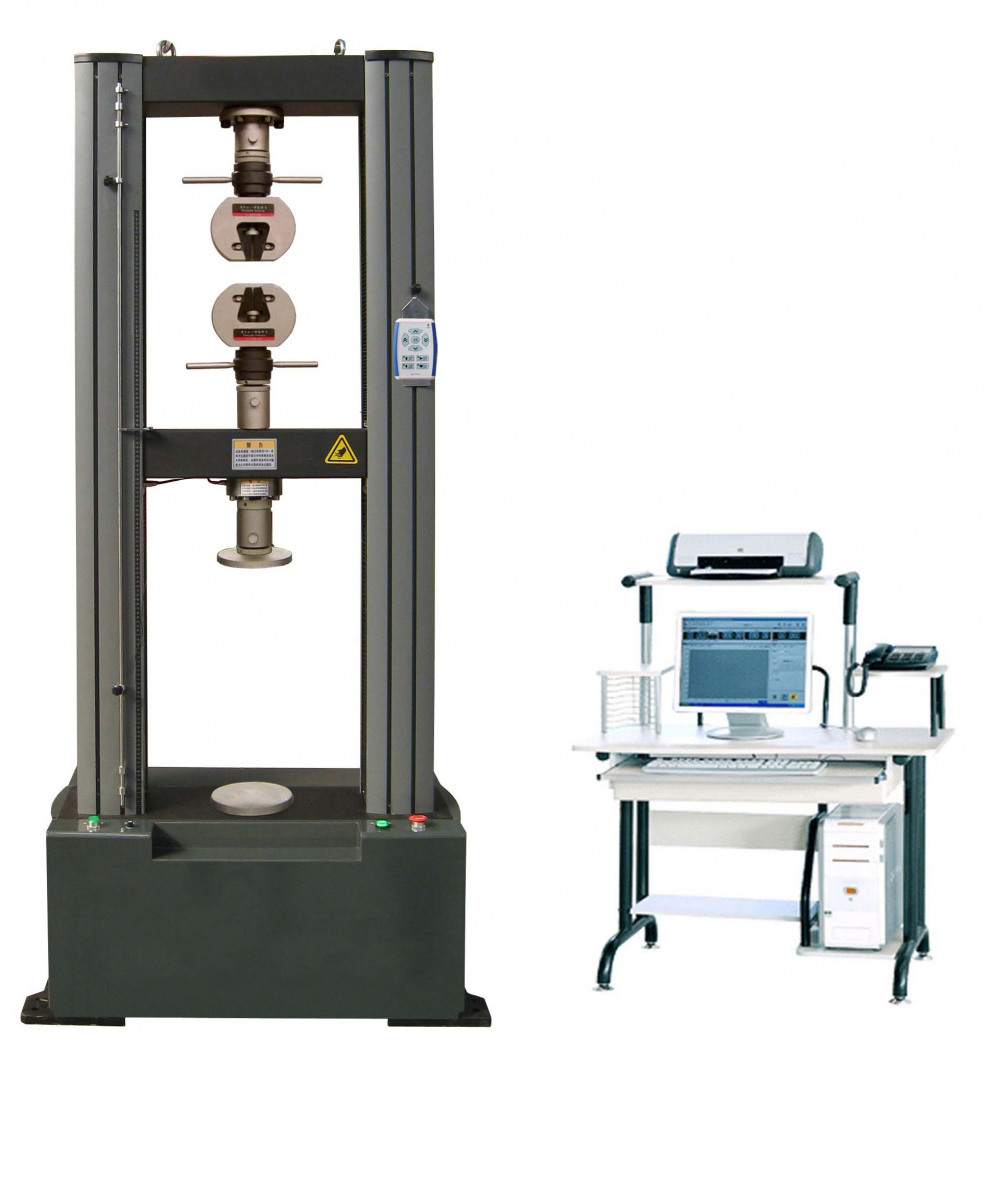

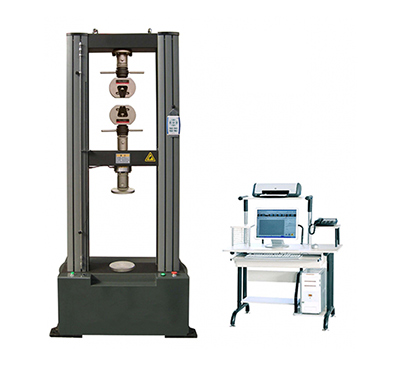

TBTWDW-H Series Electronic Universal Testing Machine

These machine are suitable to make tensile and elongation tests in Laboratories for Quality Control and research on different materials, such as metals, plastics, composed materials, wires, ropes, paper, textiles, etc.

Technical Parameters

No.	Items	Technical Specification
1	Max. Test force	10/20kN	30/50kN	100kN
2	Load class	Class 0.5
3	Measuring range of load	0.4%-100%
4	Relative error of indicating value	Within ±1.0%
5	Load resolution	1/±300000F.S (with unchanged resolution during the whole test)
6	Measuring range of deformation	0.2%-100%
7	Stroke of crosshead	1000mm
8	Span between columns	400mm		500mm
9	Control mode	Computer control
10	Power supply	1ph, 220V, 50Hz
11	Power	400W	750W	2000w

TBTWDW-200H Electronic Universal Testing Machine
