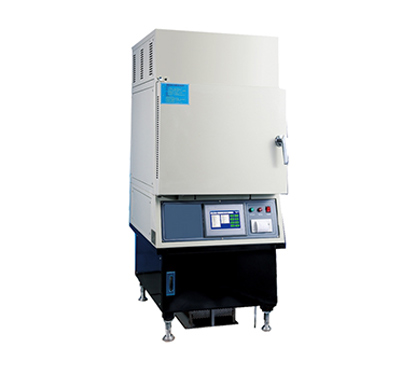

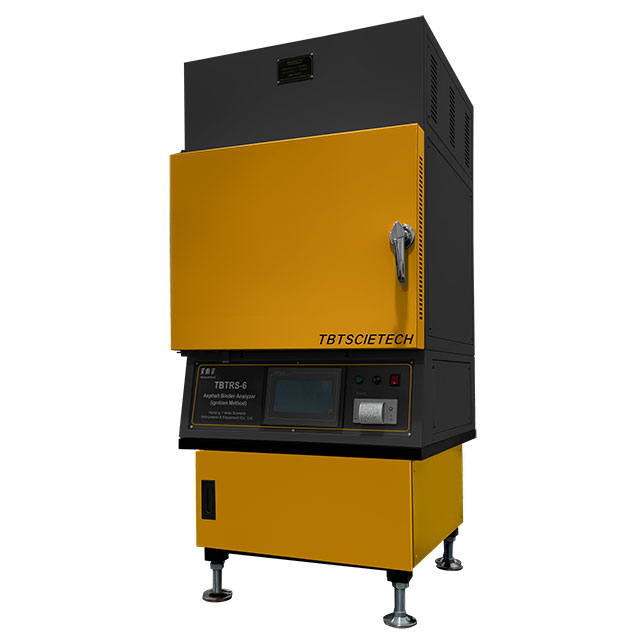

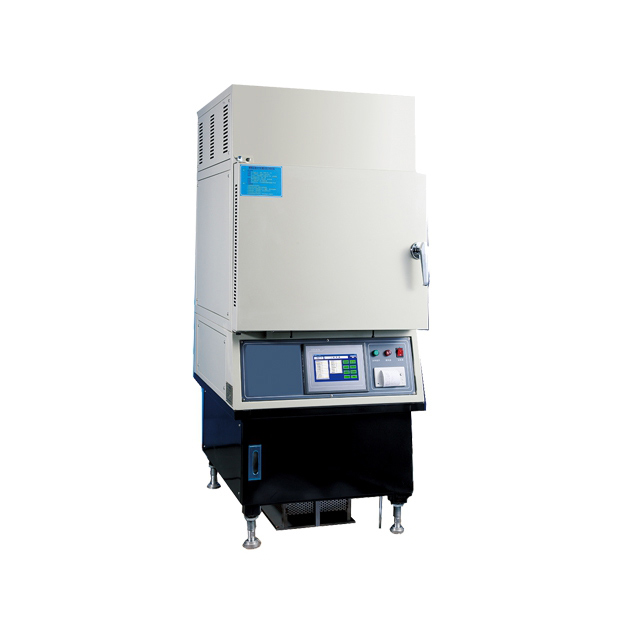

TBTRS-6 Binder Ignition Tester

TBTRS-6 asphalt binder tester is used to measure the weight loss of a bituminous mixture during combustion and automatically calculates its binder content at the end of the test. This binder testing equipment is designed and made as per the ASTMD6307, AASHTO TP53-95, BSDD250 standards of American National Center for Asphalt Technology (NCAT).

Technical Parameters
Max. sample weight 4000g
Commendable sample weight 1000-2000g
Balance accuracy 0.1g
Balance range 10kg
Combustion chamber dimension 350x440x330mm
Max. working temperature of combustion chamber 800℃
Standard working temperature 538℃
Testing time 1200g sample for 30min
Power supply 380V/220V
Standard accessories
No. Name Unit Qty
1 Asphalt Content Tester Set 1
2 Electronic balance Set 1
3 Loading box Set 1
4 Power line Piece 2
5 Reclaimed handle Piece 1
6 Corrugated pipe Piece 1
7 Wire brush Piece 1
8 Operation manual Piece 1
9 Quality certificate Piece 1
10 Repair guarantee Piece 1

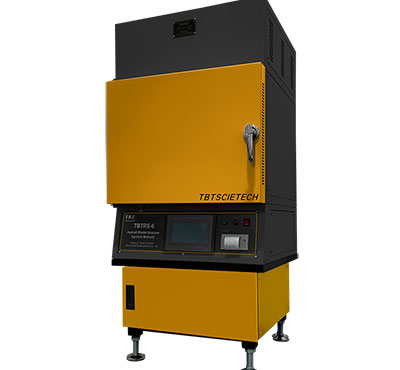

TBTRS-6 Asphalt Binder Tester
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
