Asphalt Mixer

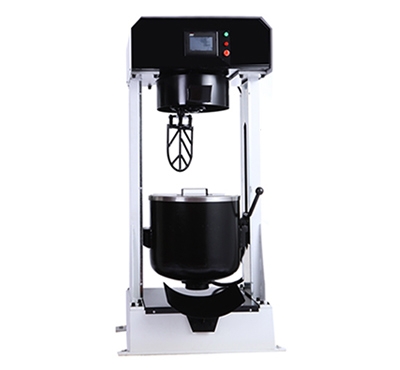

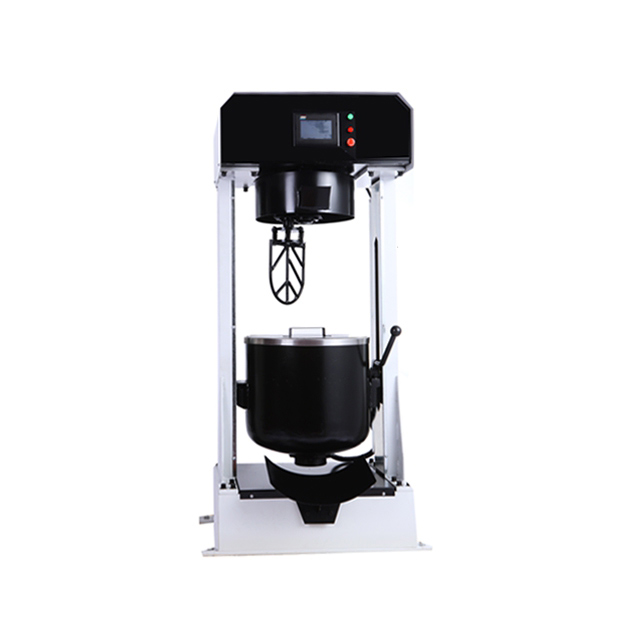

TBTBHCJ-20 Asphalt Mixer
TBTBHCJ-20 asphalt mixer is designed to prepare homogeneous asphaltic mixtures in the laboratory for the sample test.
Technical Parameters
| Blending volume | 20L |
| Temperature control range | Room temperature~200℃ |
| Temperature control accuracy | ±5℃ |
| Timing range | 0~999s |
| Timing accuracy | ±0.1s |
| Rotation rate of paddle | Complete revolution: 47r/min; autorotation: 76r/min |
| Blending motor | Alternating current, 380V, 50Hz, 550W, 1400r/min |
| Lifting motor | Alternating current, 380V, 50Hz, 250W, 1400r/min |
| Overall dimension | 1400mmx750mmx2400mm |
| Net weight | 215kg |
| Power supply | AC (380±10%)V, 16A, 50Hz (three-phase four-wire with null line) |
| Ambient temperature | -5℃~+50℃ |
| Relative humidity | ≤80% |
Standard accessories
| No. | Name | Unit | Qty |
| 1 | TBTBHCJ-20 Automatic Mixture Blender | Set | 1 |
| 2 | Discharge shovel | Piece | 1 |
| 3 | Operation manual | Piece | 1 |
| 4 | Quality certificate | Piece | 1 |
| 5 | Repair guarantee | Piece | 1 |

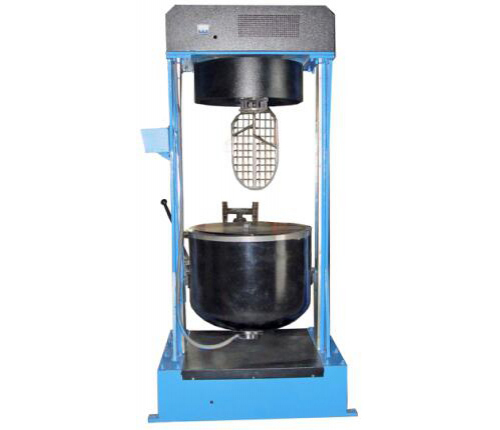

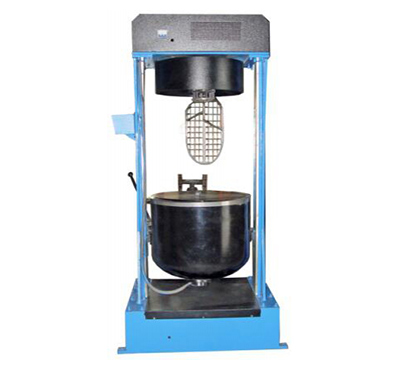

TBTBHCJ-60 Automatic Mixture Blender
TBTBH-CJ60 automatic mixture blender adopts advanced microprocessor controlling technology to present the blending temperature ranging from ambient temperature to 200℃. This automatic mixture blender can automatically control PID parameters and blending time, which is suitable to be used in the laboratory for the sample test.
Technical Parameters
| Blending volume | 60L |
| Temperature control range | Room temperature~200℃ |
| Temperature control accuracy | ±5℃ |
| Timing range | 0~999s |
| Timing accuracy | ±0.1s |
| Rotation rate of paddle | Rotation speed: 67 r/min Revolution speed: 42 r/min |
| Blending motor | 380V, 50Hz, 2200W, 1400r/min |
| Lifting motor | 380V, 50Hz, 750W, 1400 r/min |
| Overall dimension | 1400mmx750mmx2400mm |
| Net weight | 1100kg |
| Power supply | AC (380±10%)V, 50Hz, 30A (three-phase four-wire system, with zero line) |
| Ambient temperature | -5℃~+50℃ |
| Relative humidity | ≤80% |
Standard accessories
| No. | Name | Unit | Qty |
| 1 | TBTBH-F60 Automatic Mixture Blender | Set | 1 |
| 2 | Material sample heater | Set | 1 |
| 3 | Climbing Table | Piece | 1 |
| 4 | Dumper | Set | 1 |
| 5 | Discharging groove | Piece | 2 |
| 6 | Unloading groove | Piece | 1 |
| 7 | Discharge shovel | Piece | 1 |
| 8 | Crank | Piece | 1 |
| 9 | Quantitative measuring cup (2L, 4L) | Piece | Each 1 |
| 10 | Operation manual | Piece | 1 |
| 11 | Quality certificate | Piece | 1 |
| 12 | Repair guarantee | Piece | 1 |

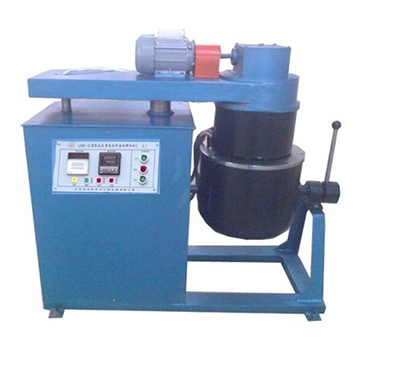

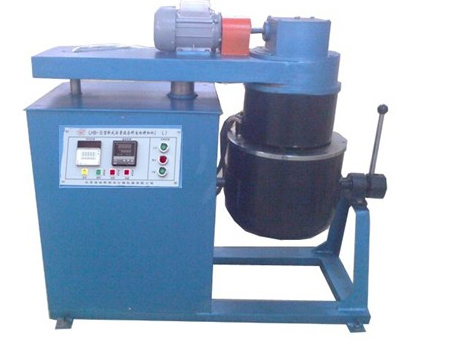

TBTBH-1 Asphalt Mixer
TBTBH-1 asphalt mixer is an automatic mixing machine for asphalt mixture. It is easy to set the desired mixing time, mixing temperature, and mixing speed.
Technical Parameters
| Capacity: | 10L, 20L |
| Control temperature: | room temperature~200℃ |
| Control temperature accuracy: | ±2℃ |
| Planetary mixing spped: | revolution 45r/min; rotation 78r/min |
| Power: | AC 220V, 50Hz, 2000W |
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
