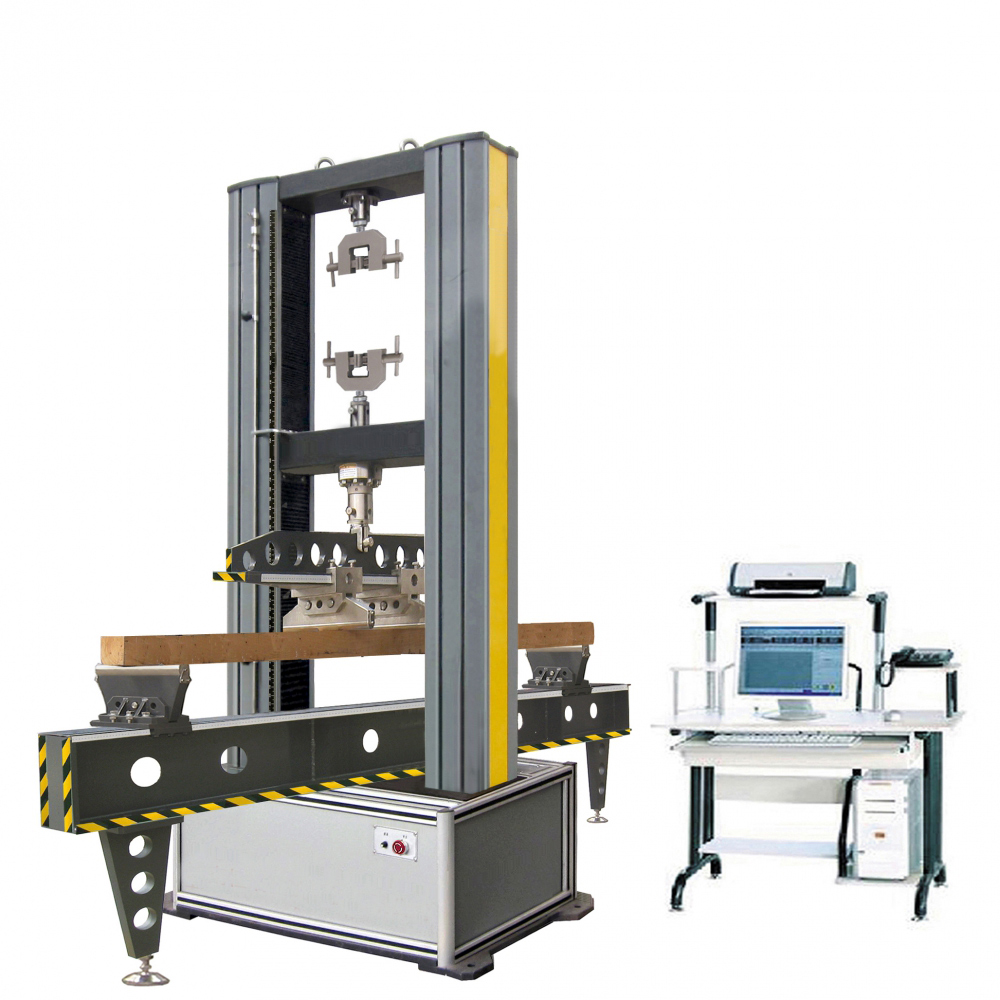

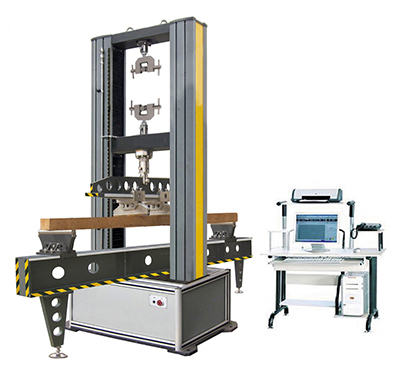

TBTMWW-100 Wood-based Panel Testing Machine
TBTMWW-100 wood-based panel testing machine is used in mechanical property tests for various wood-based panels, including plywood, particle board, fiberboard, OSB (oriented structural board), cement-bonded particleboard, multi-ply parquets, bamboo flooring, MDF, decorative veneered wood-based panels, resin impregnated paper overlaid wood-based panels, and laminated flooring.
This flexural testing machine is suitable for surface gluing strength, surface bonding strength, internal bonding strength, nail withdrawal force, static bending strength, elastic modulus, glue-line shear strength tests.
It is also used in 3-point flexure test and 4-point flexure tests for super long specimen less than 3000mm.
These testing machines conform to the standards EN310, EN319, EN320, ASTM D1037, DIN52366, and JISA 5909.
| No. | Item | Specification |
| 1 | Max. test force | 100kN |
| 2 | Load grade | Class 0.5 |
| 3 | Measuring range of load | 0.4%-100% |
| 4 | Load resolution | 1/±300000FS (with unchanged resolution during the whole test) |
| 5 | Speed control range of load | 0.005%-5%FS/S |
| 6 | Speed control accuracy of load | If rate＜0.05%FS, accuracy: within ±2% of the set value If rate≥0.05%FS, accuracy: within ±1% of the set value |
| 7 | Speed control range of deformation | 0.005-5%FS/S |
| 8 | Speed control accuracy of deformation | If rate＜0.05%FS, accuracy: within ±2% of the set value If rate≥0.05%FS, accuracy: within ±1% of the set value |
| 9 | Speed control range of displacement | 0.001-600mm/min |
| 10 | Speed control accuracy of displacement | If rate＜0.5mm/min, accuracy: within ±1% of the set value If rate≥0.5mm/min, accuracy: within ±0.5% of the set value |
| 11 | Stroke of cross head | 1000mm |
| 12 | Span between columns | 510mm |
| 13 | Working voltage | 1ph, 220V, 50Hz |
| 14 | Power | 2000W |
