Electronic Universal Testing Machine | Material Testing Equipment

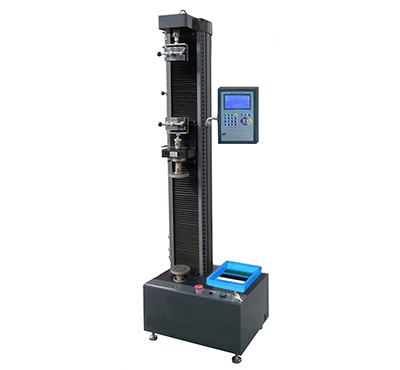

TBTWDW-SH Series Electronic Universal Testing Machine

Mainly used to test tension, compression, bending, peeling, shearing and other mechanical property for film, plastics, metal materials, etc.

Technical Parameters

No.	Test Items	Specifications
1	Capacity	1kN, 2kN, 3kN, 5KN
2	Precision level	Class 1
3	Test force accuracy	Better than ±1% of indicated value
4	Measuring range	0.4%-100% of the maximum test force
5	Beam displacement measurement	A resolution of 0.01
6	Deformation accuracy	Better than ±1%
7	Speed range	0.2-500mm/min
8	Crosshead stroke	1000mm
9	Working environment	Room-45℃
10	Loading method	Electric
11	Control method	Digital controller
12	Working voltage	1ph, 220V±50Hz (good earth-connection)
13	Dimension (LWH)	5054101550mm

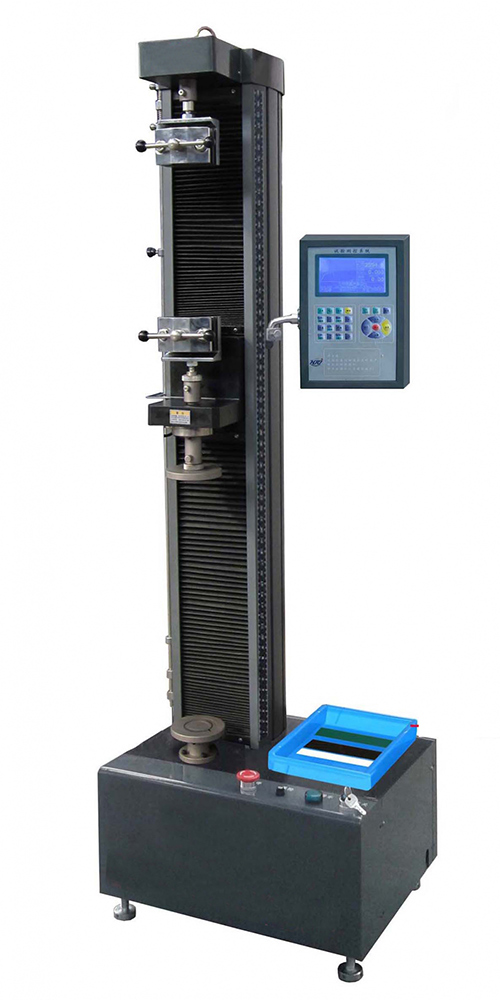

TBTWDW-SH Series Single Column Universal Test Machine

Inquiry

Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
