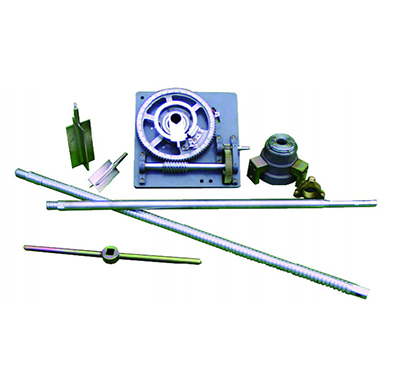

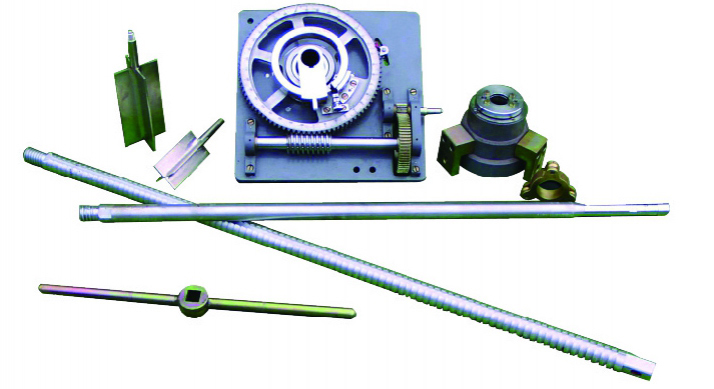

ZSZ-1 Shear Vane Devices
This cross-plate vane shear is an instrument used to determine the natural shear strength of saturated soft clay in the field. For sensitive soft clay, the perturbation of sampling is very obvious. Use this apparatus can obtain actual strength.
Technical Parameters
| Cross plate dimension: | Ø75mm x 150mm, Ø50mm x 100mm |
| Torque moment of steel ring: | 80N.m |
| Torque moment accuracy: | 0.55N.m |
| Guide rod size | Ø30mm x 1040mm |

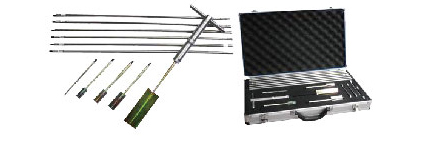

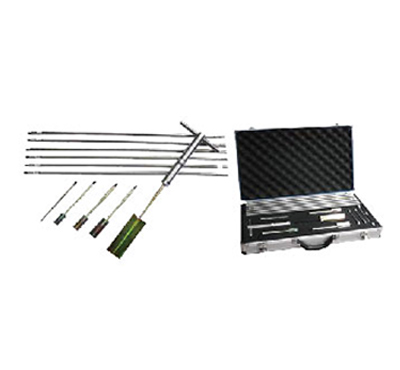

Portable Vane Shear Apparatus
Technical Parameters
| NO. | Size(mm) | Measuring range(KPa) | Coefficient |
| 1 | 20*40 | 0-130 | 1 |
| 2 | 16*32 | 0-260 | 2.6 |
| 3 | 25.4*50.8 | 0-65 | 0.65 |
| 4 | 50.8*101.6 | 0-8.125 | 0.0625 |
- Cross plate head size:
- Max.measuring range:0-260KPa
- Max.measuring depth:3000mm

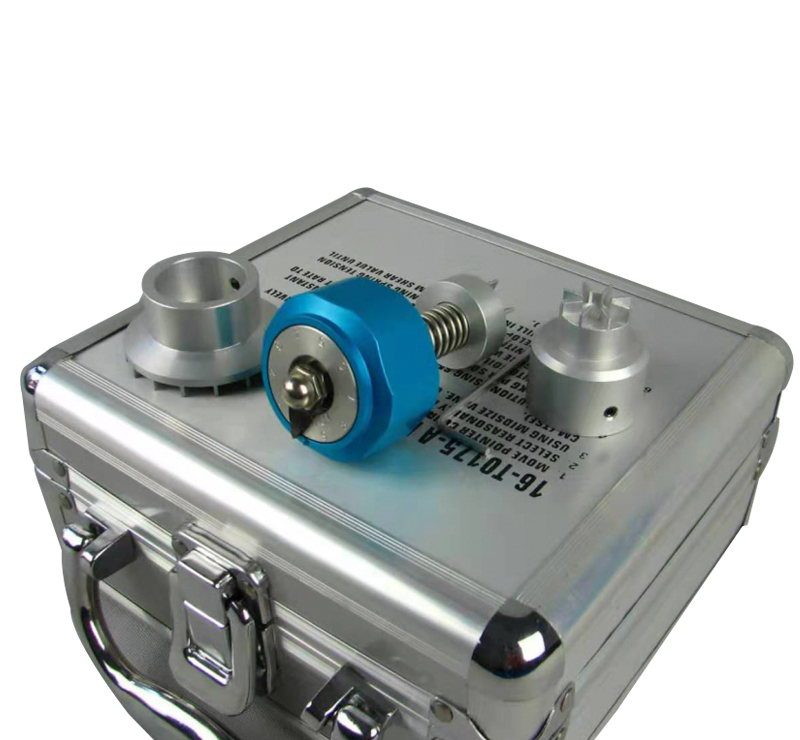

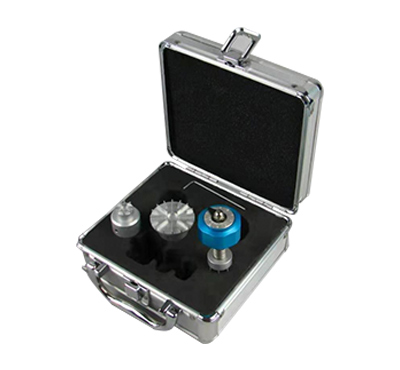

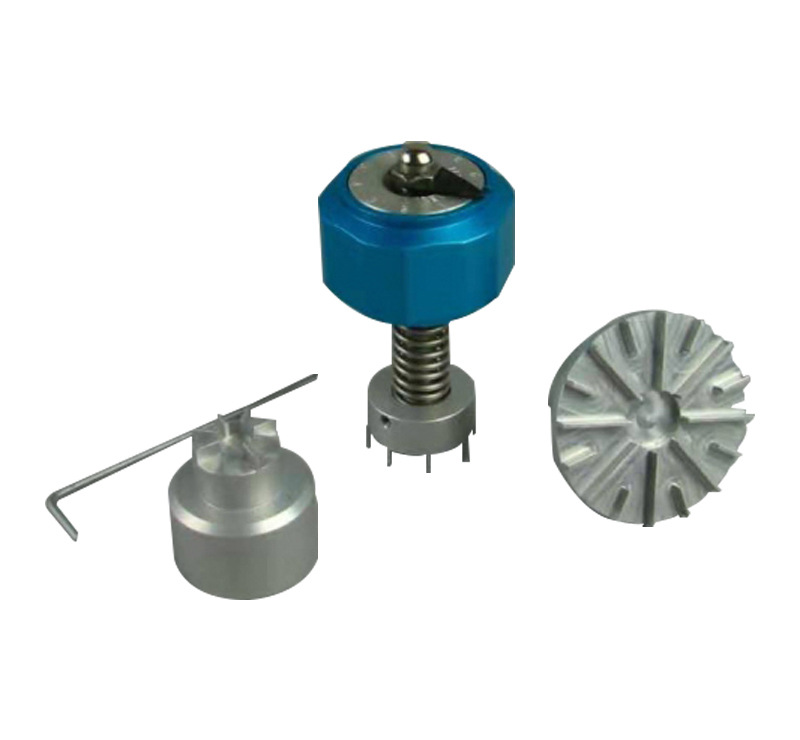

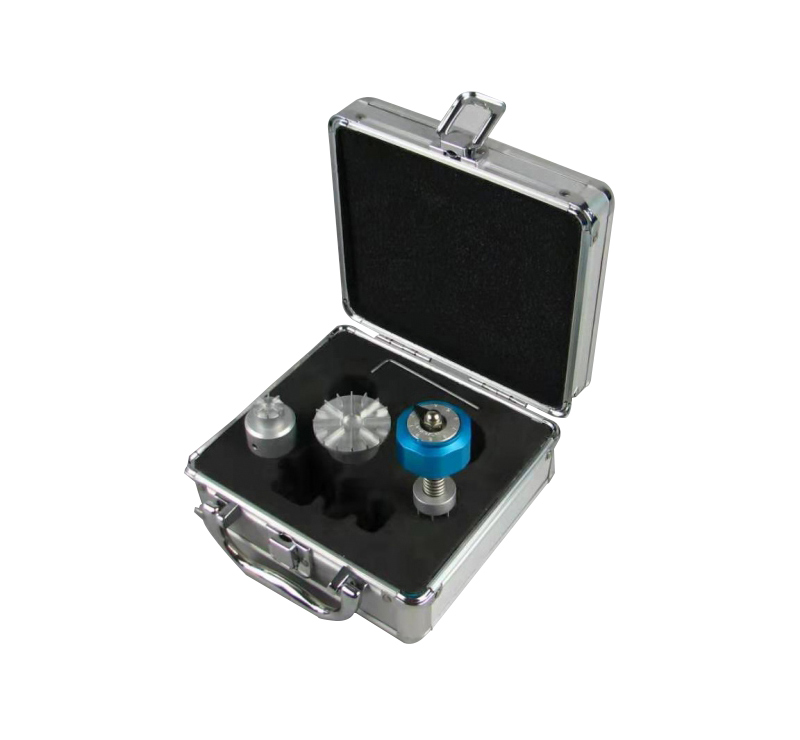

TBTVST miniature vane shear
TBTVST mini cross-plate shear is a portable instrument that measures the shear strength of a soil indoors or in field. Used with mini penetration instrument to quickly assess internal friction angle of the soil & determine if the soil is sticky.
Technical Parameters
| Head specification | Size mm | Measuring Range | coefficient |
| A | Ø 25.5 | 0~1 | 1 |
| B | Ø 19 | 0~2.5 | 2.5 |
| C | Ø48 | 0~0.2 | 0.2 |
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
