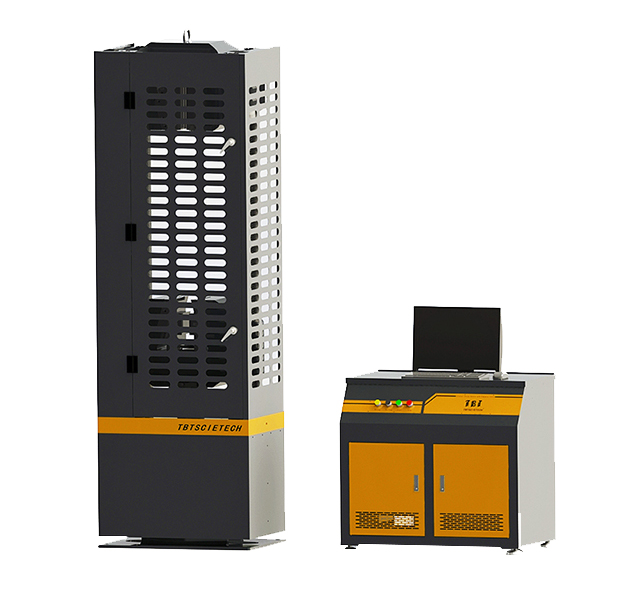

TBTUTM-1000C-I Series Universal Testing Machine

The testing machine is mainly designed for make tension, compression, bending and shearing test for metal & non-metal, such as concrete and stone.

Technical Parameters

Maximum load	1000 kN
Measuring range	0-1000 kN
Grade of machine (start from 20% of the full range)	Grade I
Load maintained time	≥30s
Max. distance between tension jaws (including piston stroke)	1100 mm
Distance between compression plates:	0-800 mm
Diameter for round specimen	Ф10-Ф20 mm
Travel of working piston	200 mm
Piston moving most fast speed (Non-load)	800mm/min
Main unit diamension	9606202800mm
Main unit net weight	2400kg
Loading part diamension	1000600910mm
Loading part net weight	250kg

TBTUTM-1000C-I Servo-Hydraulic Universal Testing Machines
