Proctor CBR Compactor

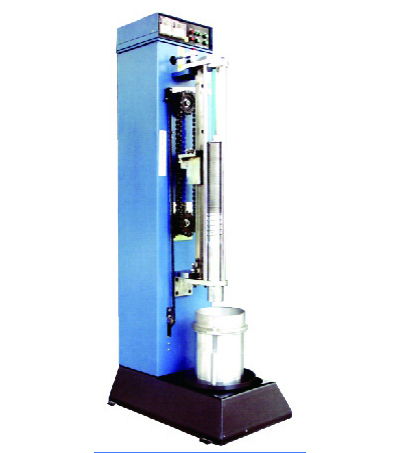

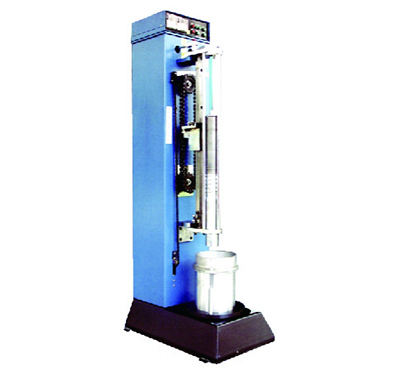

JDS-1 CBR Soil Compactor

The compactor is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport and buildings etc.. With standard compaction method to determine the relationship between density and water ratio so as to confirm the dry density and moisture content of soil.

Technical Parameters

Hammer:	2.5kg / Ø50mm, Ø51mm
Hammer:	4.5kg / Ø50mm, Ø51mm
drop :	adjustable either 300mm, 305mm, 400mm, 457mm
Mold dimension:	Ø100 × 127mm, Ø102 × 116mm,
	Ø152 × 116mm, Ø152 × 120mm,
	Ø152 × 166mm, Ø152 × 170mm
Power supply:	220V±10%, 50Hz
Dimension:	570 × 360 × 1360mm (L × W × H)
Weight:	90kg

Inquiry

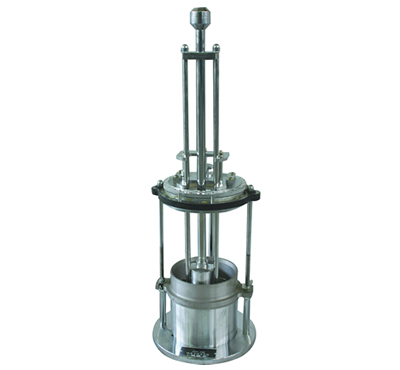

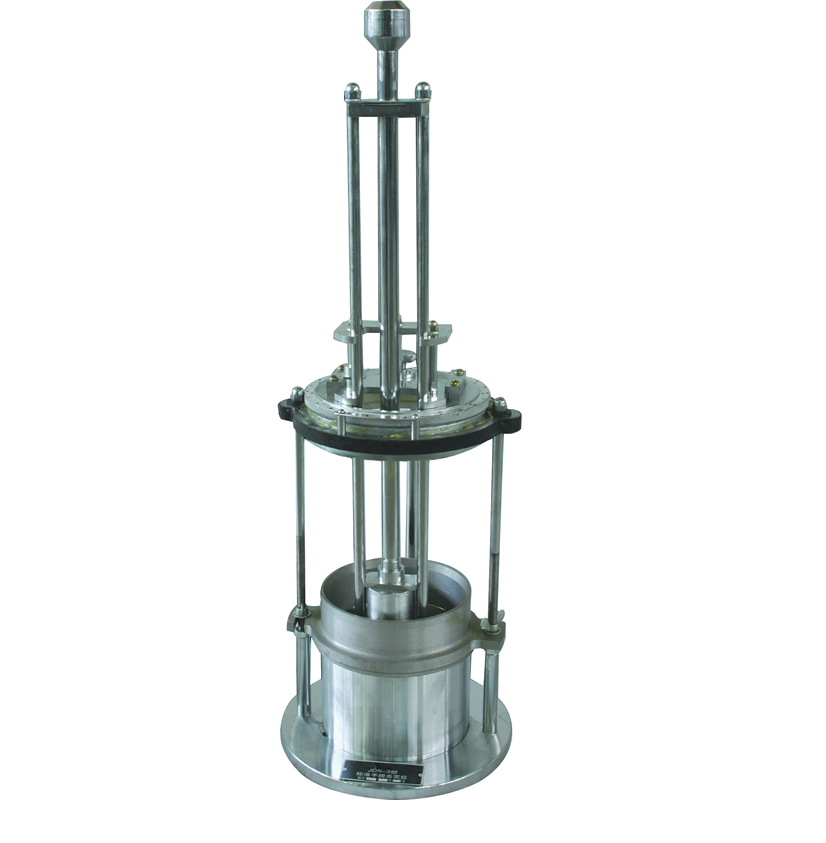

JDS-3 Portable Compactor

The JDS-3 portable compactor is used to determine the relationship between soil density and water content, to determine the maximum dry density and the corresponding optimum water content. The instrument is both available in light and heavy modes, and the hammer weight can be changed from 2.5Kg to 4.5Kg. Hammer weight and drop height can be adjusted to suit different test requirements.

Technical Parameters

Hammer mass: 2.5kg or 4.5kg optional
drop : 305mm or 457mm optional
Mold dimension: 102mm x 116mm, 152mm x 116mm

Inquiry

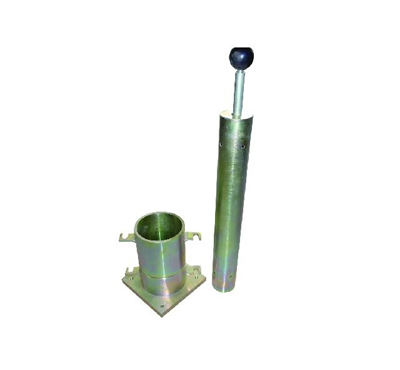

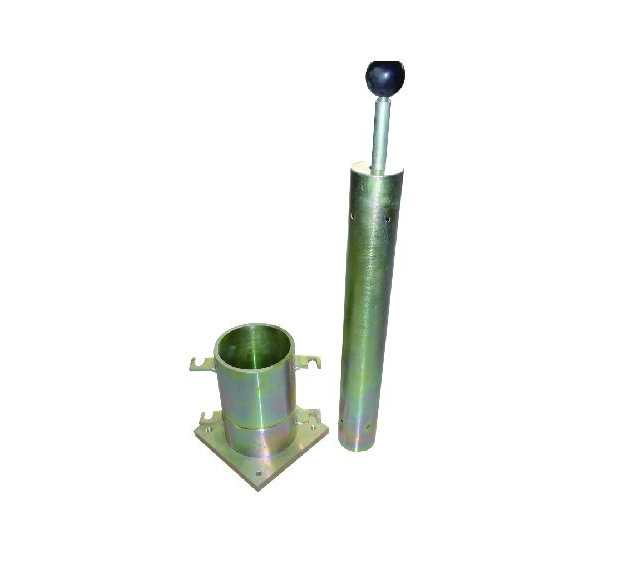

TBT-JS Vibrating Compaction device

This equipment is used for manual compaction of soil samples in proctor molds.

Technical Parameters

Hammer drop: 305mm / 457mm
Hammer diameter: 50土0.05mm

Inquiry
