CBR Loading Press

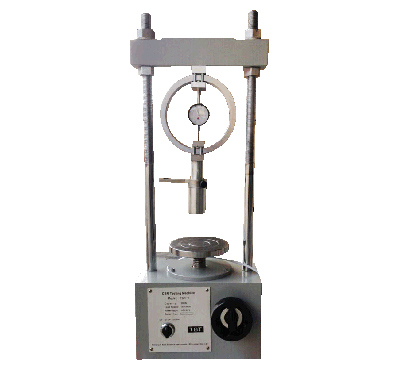

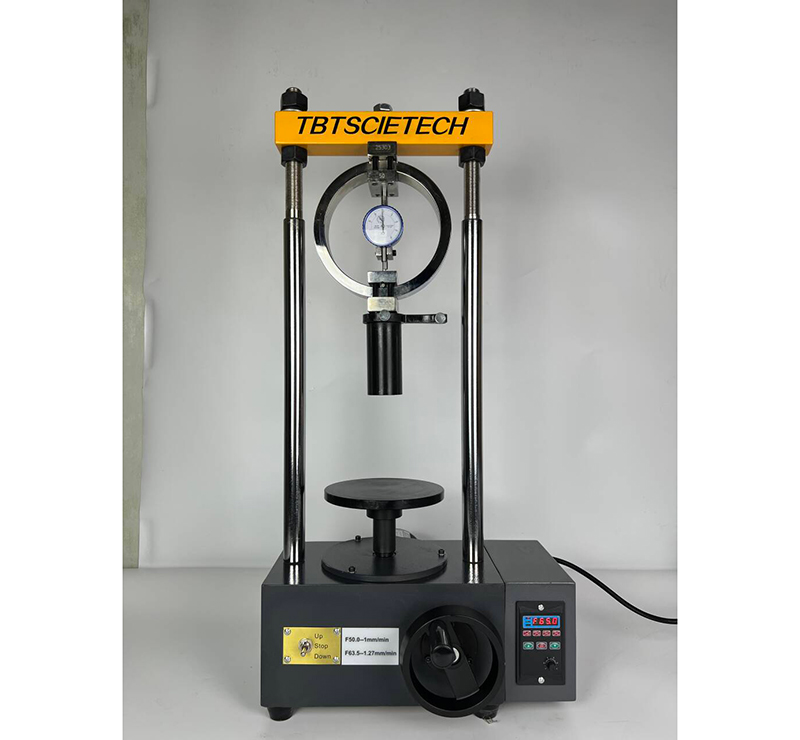

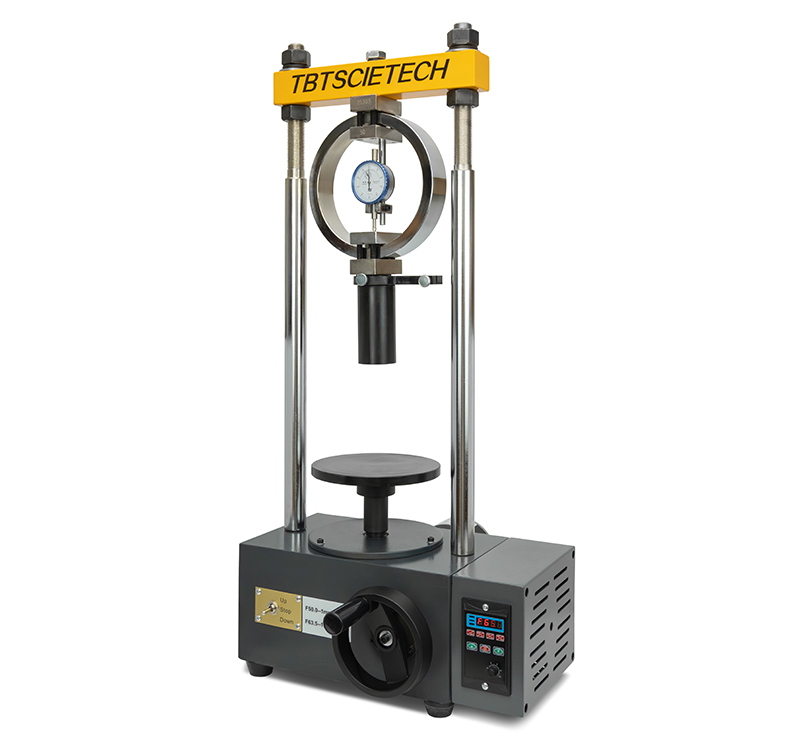

CBR-1 Laboratory CBR loading machine

CBR Test Apparatus is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed, subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer, measuring device for swell increment etc. and easy to operate.

Technical Parameters
Product Model CBR-1
Capacity 30kN, 50kN (selectable)
Load speed 1.0mm/min.
Penetrating bar Ø50mm x 100mm
Platen size Ø170mm
Platen travel 50mm
Mold Ø152mm x 170mm
Standard accessories
  • Main machine 1set
  • Proving ring 1pc
  • Penetration bar 1 set
  • Instruction book 1 copy
  • Certificate of Quality 1copy

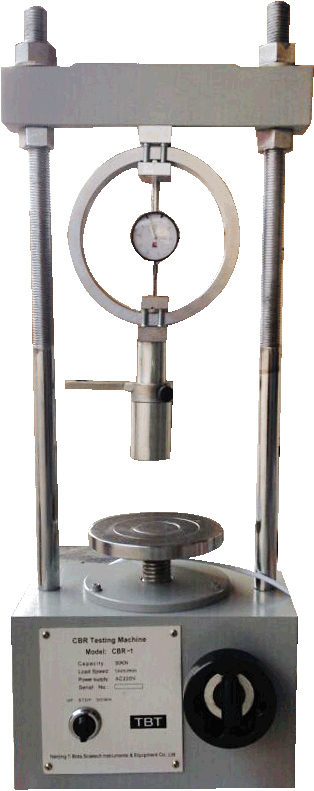

CBR-1 CBR Loading Press

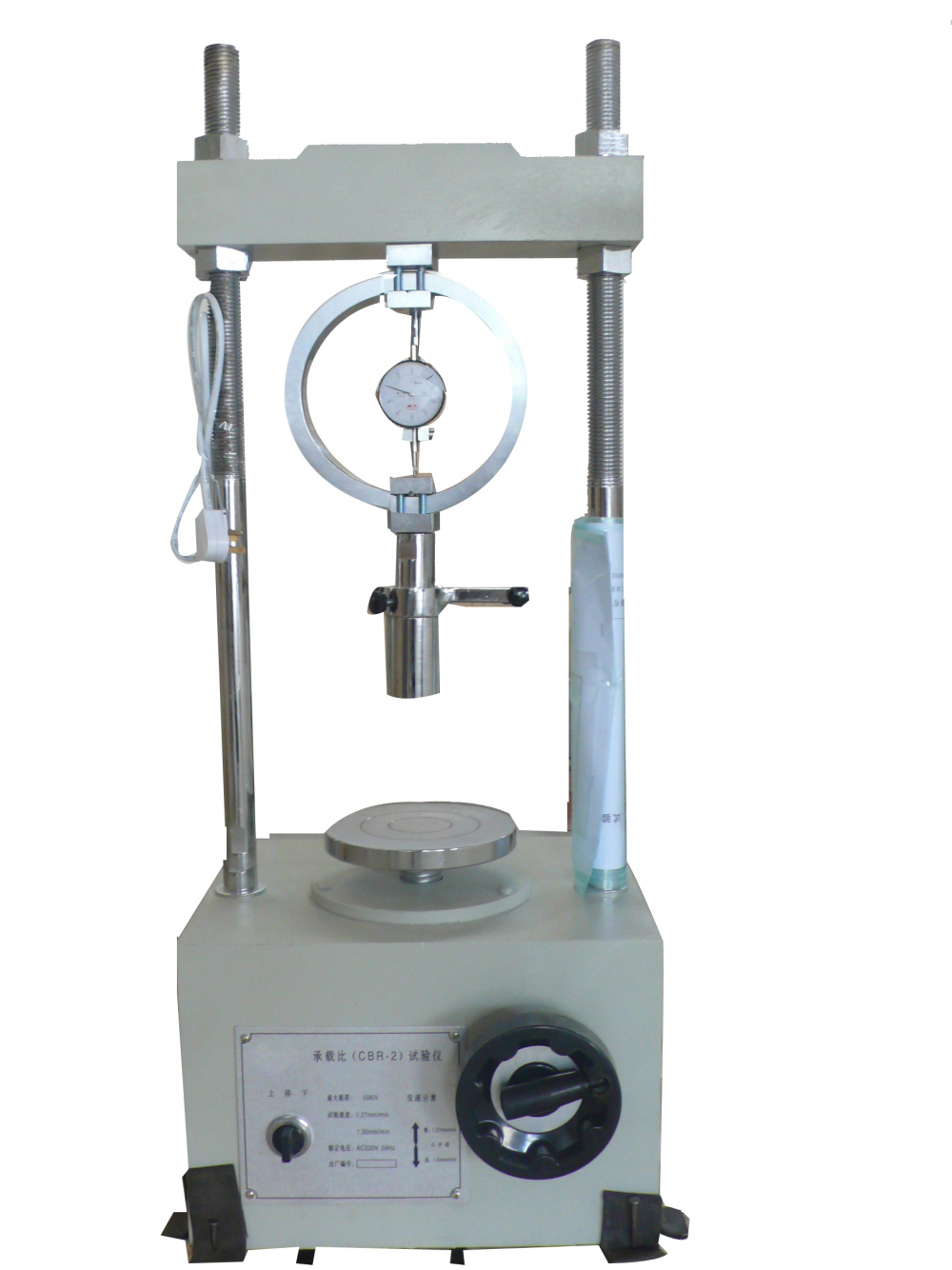

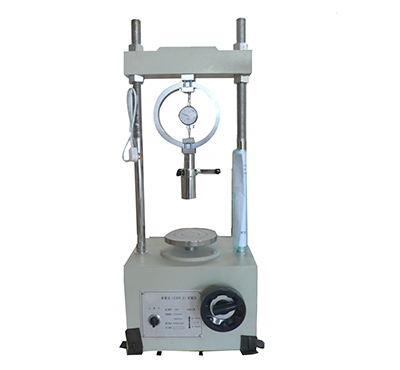

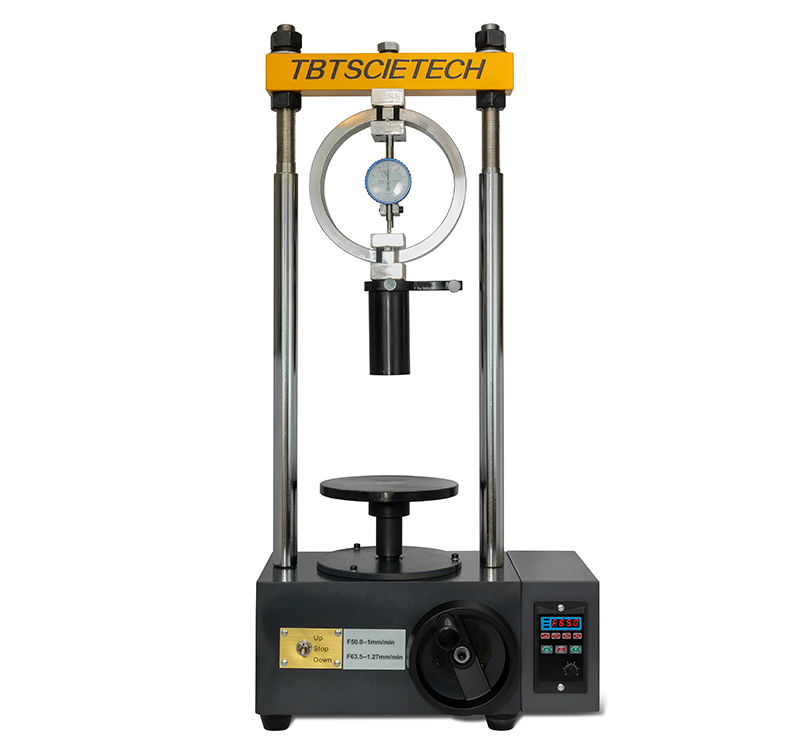

CBR-2 Laboratory CBR loading machine

This is Multispeed analogue type CBR machine, having selectable speed rates of 1mm/min and 1.27mm/min.

It features a rigid two column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts.

The drive force is provided by a mechanical jack housed in the base cabinet

Technical Parameters
Multispeed 1mm/min, 1.27mm/min
Max capacity 50KN
Penetration bar Diameter of Platen:Ф50±0.05mm. Length100mm
Power AC220V±10％ 50Hz
Standard accessories
  • Main machine 1set
  • Proving ring 1pc
  • Penetration bar 1 set
  • Instruction book 1 copy
CBR-2 Laboratory CBR loading machine

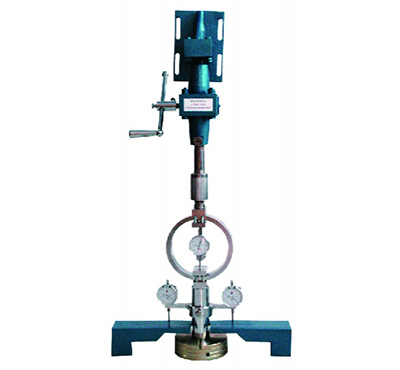

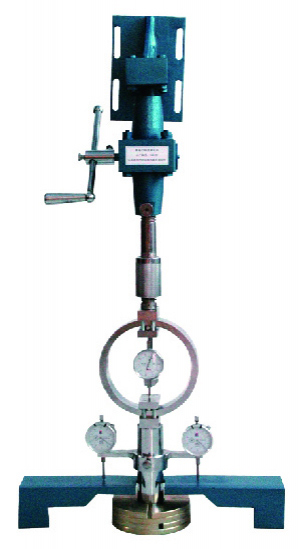

TBTLCB-2 Field CBR test set

This Field CBR test set is used in site to test CBR value to determine quickly and efficiently the bearing capacity of soils on road constructions, foundations, road subgrades etc

Technical Parameters
Product Model TBTLCB-2
Hydraulic jack 100kN
Capacity 60kN
Penetrating rod Ø50mm x 200mm
Bearing plate 1.25kg/ea.
TBTLCB-2 Field CBR test set
Mechanical Loading Press

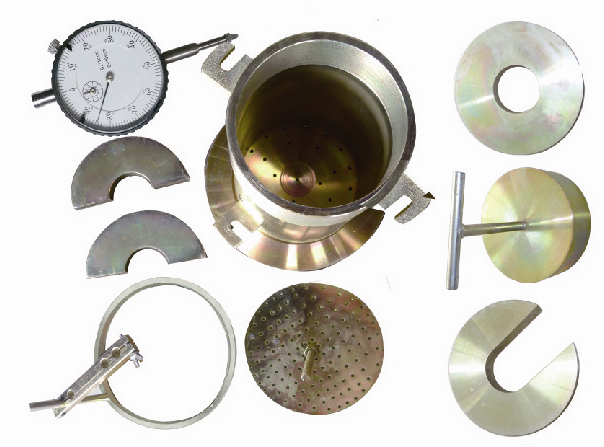

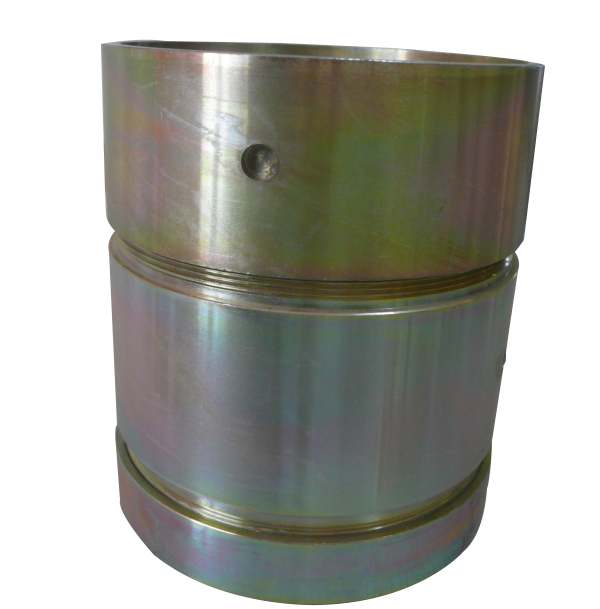

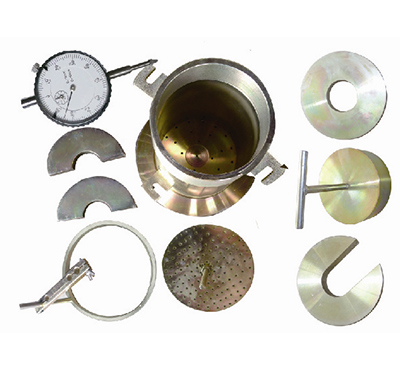

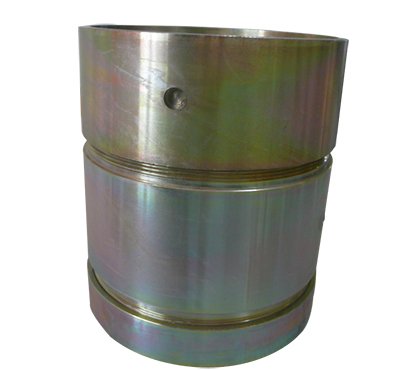

  • CBR equipment with collar and perforted baseGB, BS standard moulds are available

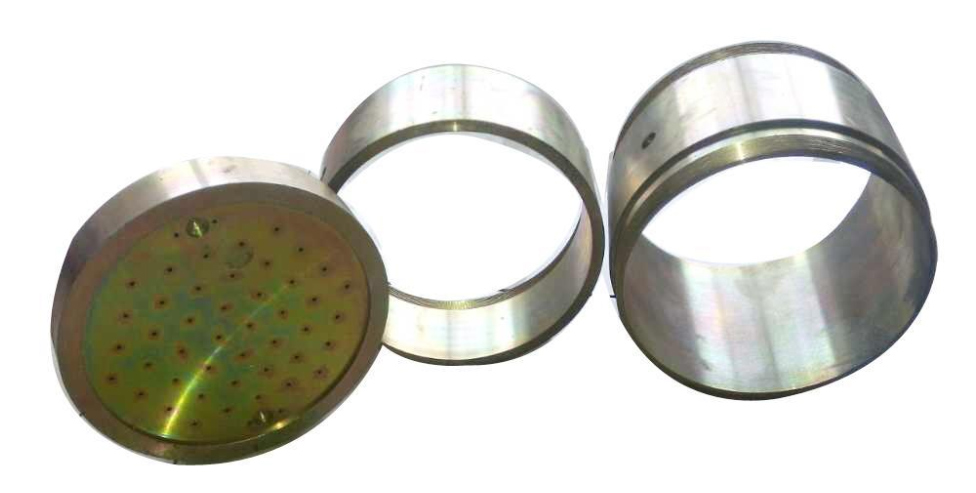

  • CBR equipment with collar and perforted baseCBR Mould with perforated base plate, ASTM

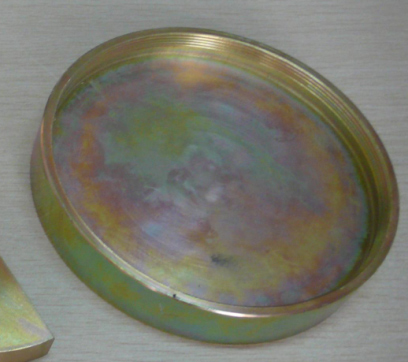

  • CBR equipment with collar and perforted baseBottom (CBR mould)

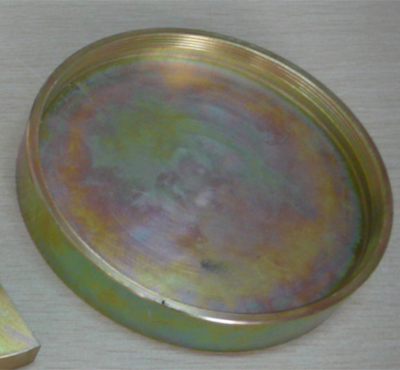

  • CBR equipment with collar and perforted baseSolid Base Plate for CBR Mould, ASTM

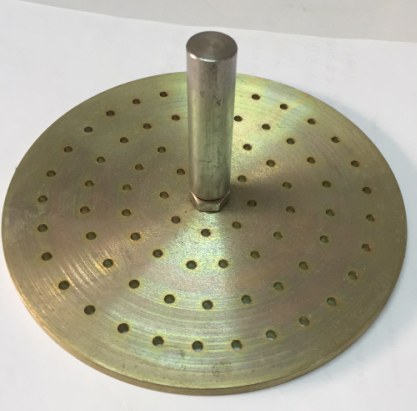

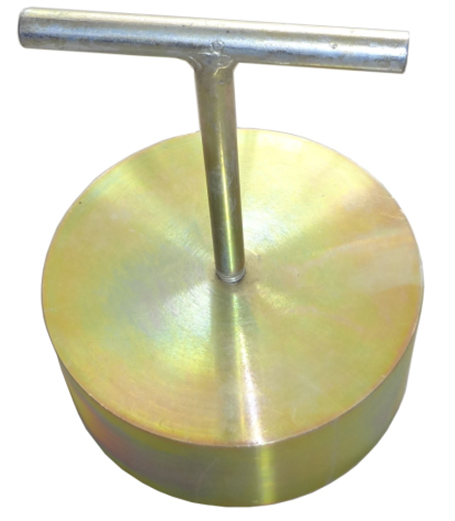

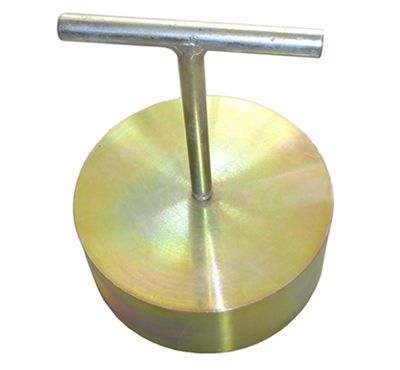

  • CBR equipment with collar and perforted baseSpacer Disc with T handle , ASTM

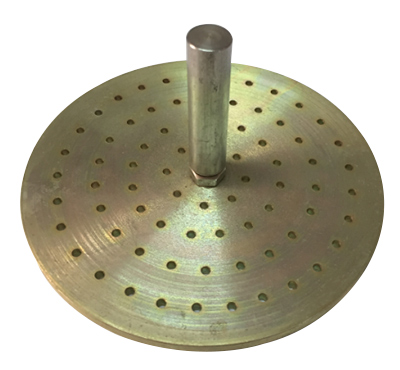

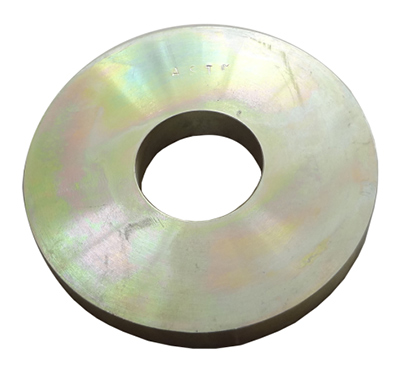

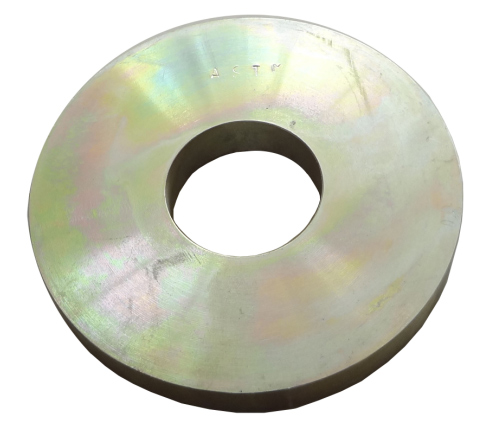

  • CBR equipment with collar and perforted baseAnnular Surcharge weight 2270g, ASTM

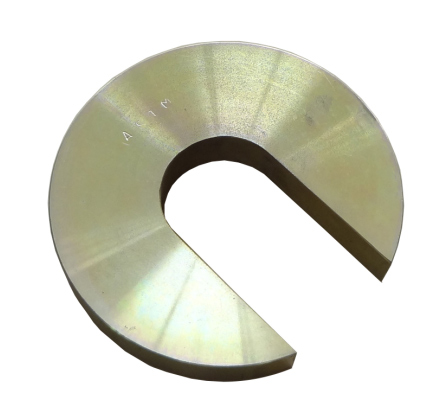

  • CBR equipment with collar and perforted baseSlotted Surcharge weight 2270g, ASTM
  • CBR equipment with collar and perforted baseSlotted Surcharge weight 2270g, ASTM

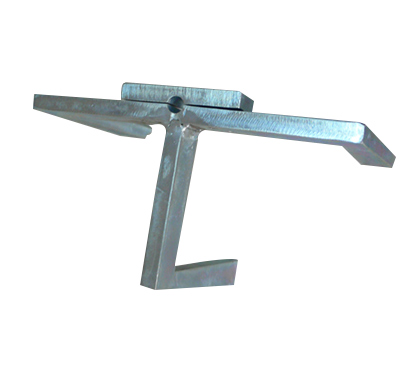

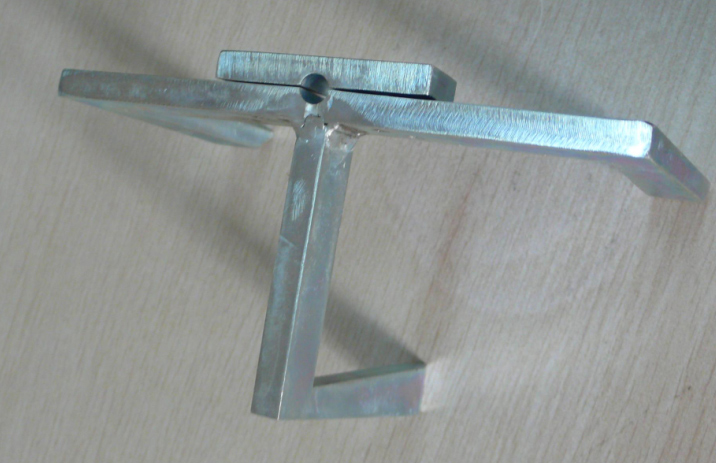

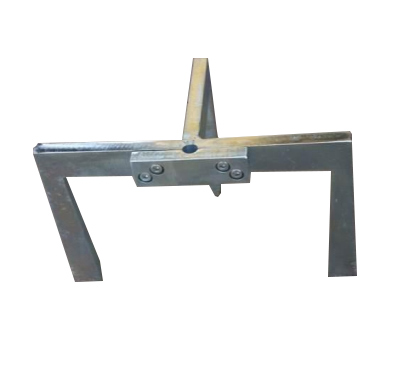

  • CBR equipment with collar and perforted baseTripod, dial gauge supporte
  • CBR equipment with collar and perforted baseTripod, dial gauge supporte

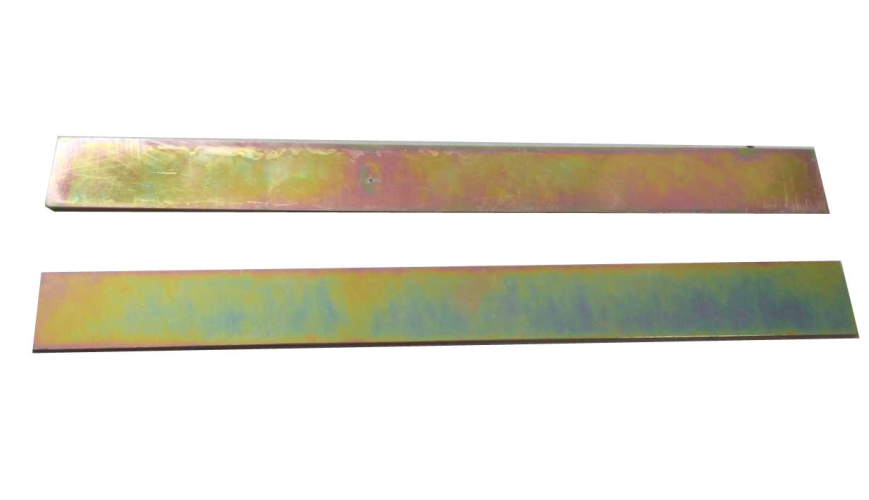

  • CBR equipment with collar and perforted baseSteel rule 300mm long, grad. 0.5mm

Dial gauge 25mm range, 0.01mm sub div.

Filter screen, stainless steel, dia.149mm, mesh 0.150mm

Filter paper dia. 150mm, pack of 100Pcs

Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
