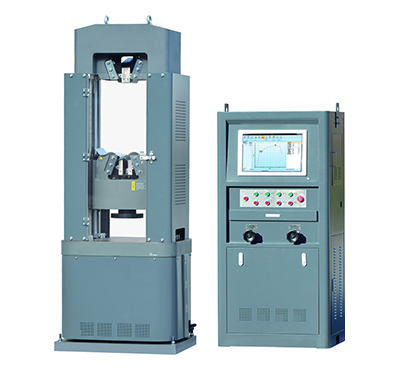

Universal Testing Machine with PC display

Model:TBTUTM-100ASI/300ASI/600ASI/1000ASI

This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

Technical Parameters
Model TBTUTM-100ASI TBTUTM-300ASI TBTUTM-600ASI TBTUTM-1000ASI
Capacity 100KN 300KN 600KN 1000KN
Accuracydegree Grade 1
Distance between upper & lower platen 500mm max. 600mm max. 600mm max. 600mm max.
Tensile distance 600mm max. 700mm max. 700mm max. 700mm max.
Piston stoke 200mm 200mm 200mm 200mm
Round specimen diameter Φ6-Φ22mm Φ10-Φ32mm Φ13-Φ40mm Φ14-Φ45mm
Flat specimen diameter 0-15mm 0-20mm 0-20mm 0-40mm
The max. Distance of bending test 300mm 300mm 300mm 300mm
Load control Manual
Specimen clamping method Hydraulic
Dimension of host 800*620*1850mm 800*620*1870mm 800*620*1900mm 900*700*2250mm
Dimensionof controlcabinet Around800*600*1600mm
Power supply 380VAC/220VAC 380VAC/220VAC 380VAC/220VAC 380VAC/220VAC
TBTUTM-ASI Series of Universal Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
