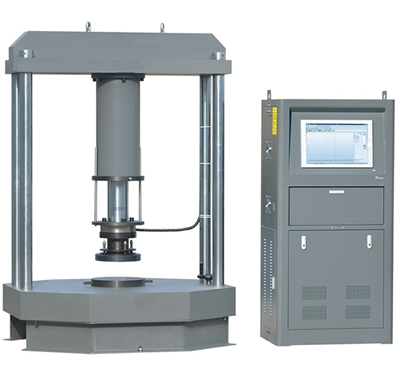

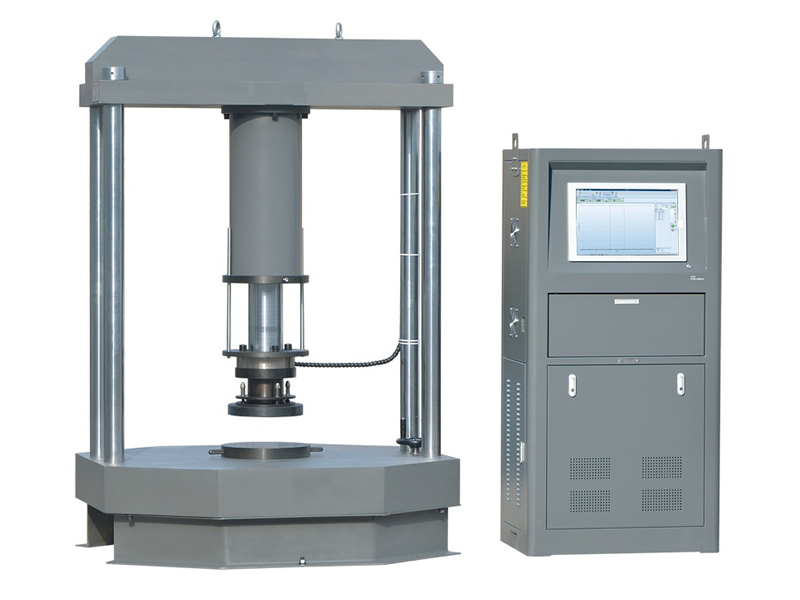

Manhole Cover Testing Machine

Model: TBTWC-1000A

TBTWC-1000A compression testing machine is used to test bearing capacity and residual deformation of manhole cover made of various materials. This compression testing machine is driven by hydraulic system which is close-loop controlled by computer servo technology.

Technical Parameters

Max. compression capacity	1000kN
Accuracy	Better than Grade 1
Relative error	±1%
Effective measuring range	1%-100%F·S
Deformation relative error	±1%
Deformation measuring resolution	0.001mm
Max. distance between compression platens	400mm
Effective distance between columns	1200mm
Piston stroke	380mm
Max. speed of piston moving	80mm/min
Size of upper platen	Φ300mm
Size of lower platen	Φ356mm
Power	1.8kW (pump motor: 1.5kW)
Loading frame dimension	1420x1250x2120mm
Control cabinet dimension	800x600x1600mm
Weight	Around 3000kg
