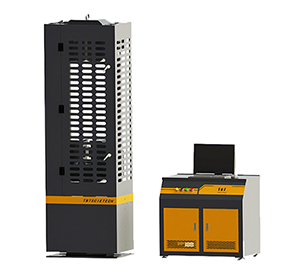

Universal Hydraulic Servo-Controlled Machine

Universal hydraulic servo-controlled machine

Model:TBTUTM-100C/300C/600C/1000C

Technical Parameters

Model	TBTUTM-100C	TBTUTM-300C	TBTUTM-600C	TBTUTM-1000C
Max. Capacity(KN)	100	300	600	1000
Range	2%-100%F.S.(full range, without gear）
Reading accuracy	Grade1（Grade0.5）
Error	±1%（±0.5%）
Resolution (F.S.)	1/200000F.S.(1/300000 F.S.)
Column Number	4	4	4	6
Width between two column	345	430	515	510
Max tensile space（mm)	500	600	600	600
Max compression space(mm)	500	600	600	600
Bending test Distance between two points(mm)	100-270	100-350	100-400	100-400
Round specimen clamp diameter(mm)	Ø6-Ø22	Ø10-Ø32	Ø13-Ø40	Ø20-Ø40
Flat specimen clamp thickness (mm)	0-15	0-15	0-15	0-40
Stroke (mm)	150		200
Pistons rise fastest speed(mm/min）	100	80
Beam rising speed (mm/min)	310	250	250	310
Displacement reading relative error	±1%（±0.5%）
Deformation reading relative error	±1%（±0.5%）
Motor capacity (KW)	2		2.5
Main unit dimension (mm)	665×490×1600	740×460×1900	850×560×2000	960×620×2100
Oil source cabinet dimension(mm)	1000×600×910
Main unit net weight (Kg)	600	1200	1750	2200

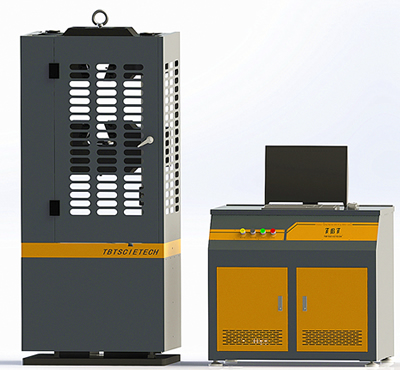

TBTUTM-1000C Servo-Hydraulic Universal Testing Machines
