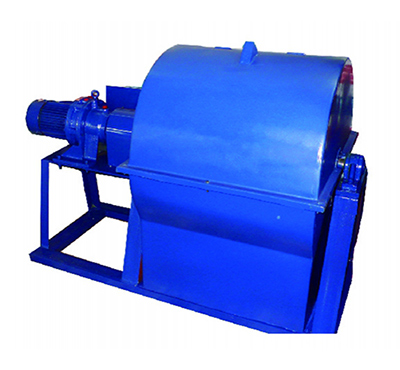

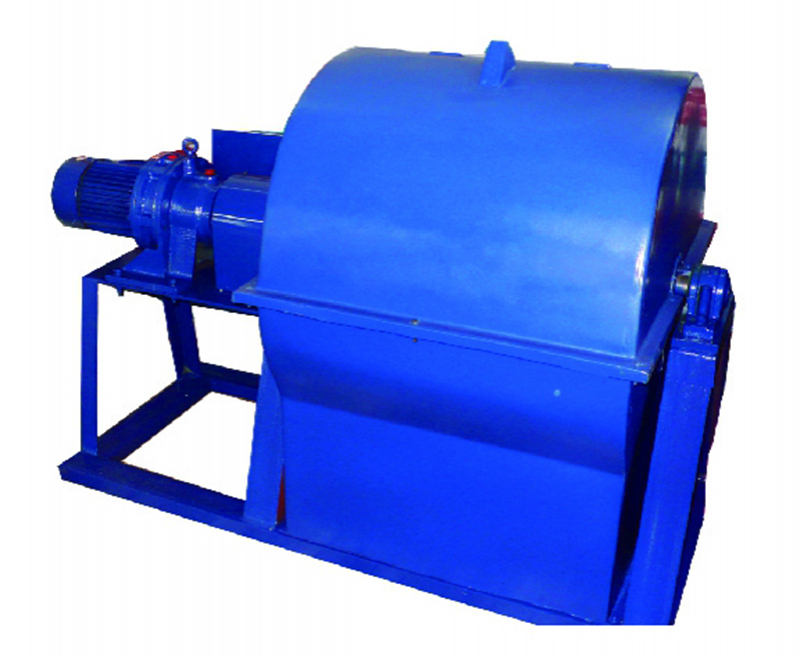

SM-500 Cement Test Mill
SM-500 cement test mill is used to grind cement clinker and other materials in the laboratory.
Technical Parameters
| Inside dia. of barrel and length | φ500×500mm |
| Grinding medium | 100kg |
| Material size | < 7mm |
| Loading capacity | ≤5kg |
| Barrel speed | ≈48r/min |
| Grinding time | ≈30min |
| Net weight | ≈300kg |

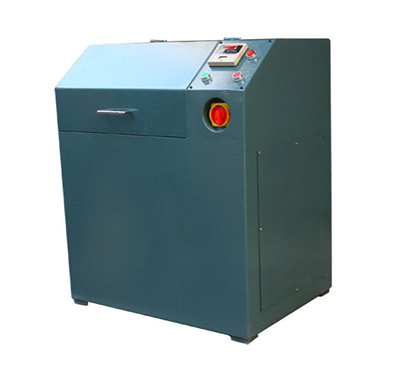

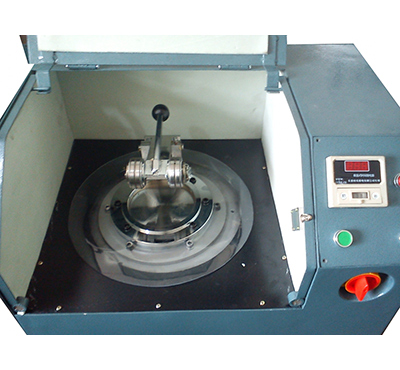

TBTZM-1 Cup Mill
TBTZM-1 Cup Mill is designed for preparing powdered substance for X-ray fluorescence(XRF) Analysis. This vibration mill guarantees a high degree of reproducibility in the preparation of samples.
Technical Parameters
- Rotation rate (rpm) 910
- Vessel volume (cm3) 100
- Feed grain (mm) ﹤5
- Dimension (m) 0.55×0.75×0.94
- Net weight (kg) 230
- Power supply AC380, 3∮, 50Hz
- Nominal power (kw) 1.1
- 3-Phase AC 380V
- Permissible deviation ±5%
- Frequency 50Hz
- Power 1.1kW

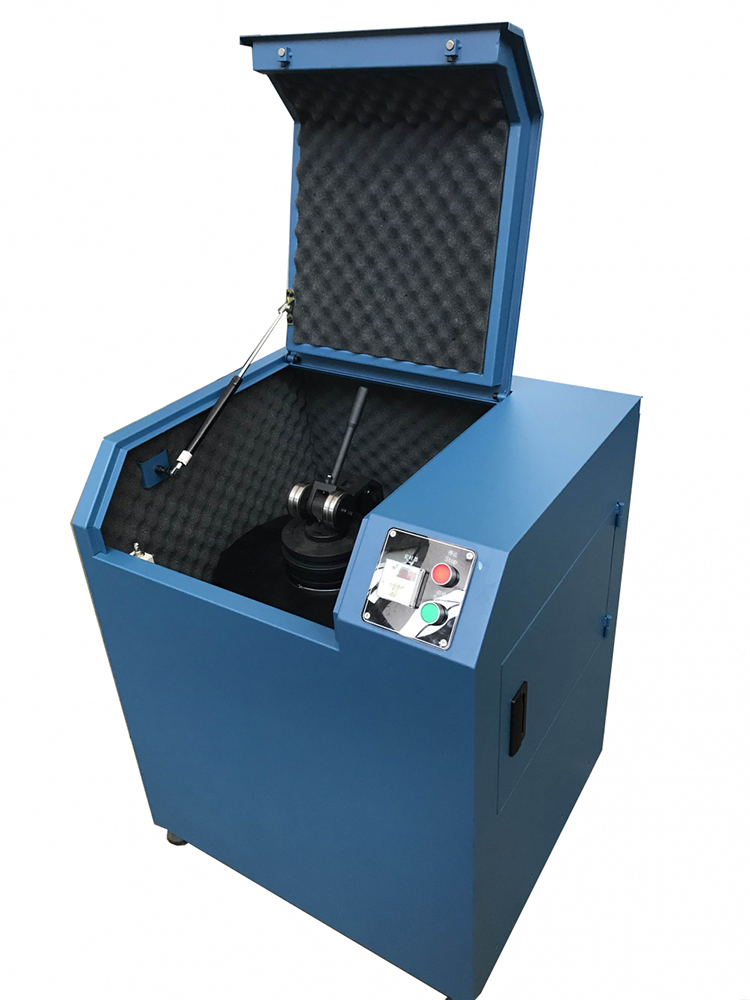

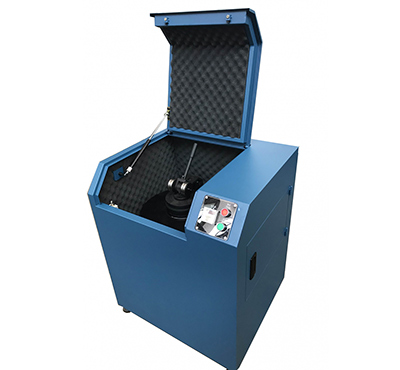

TBT175-III Grinding Cup Mill
This grinding cup mill is used in laboratories to crush and grind sample particles sizes smaller than 6mm. After the crushing and grinding process, the output powder fineness is 0.1mm (120-200 mesh).
The grinding mill features a streamlined mechanical structure with a tight cover and continuously accepts feeding samples. It is among the most advanced crush and grinding equipment available on the market today.
Technical Parameters
- Grinding Cup diameter Φ175mm
- Feeding particle size ≤6mm
- Discharge fineness 0.1mm
- Capacity 25kg/hr
- Motor power 1.5kw
- Dimensions 750×550×400mm
- Equipment weight About 180kg
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
