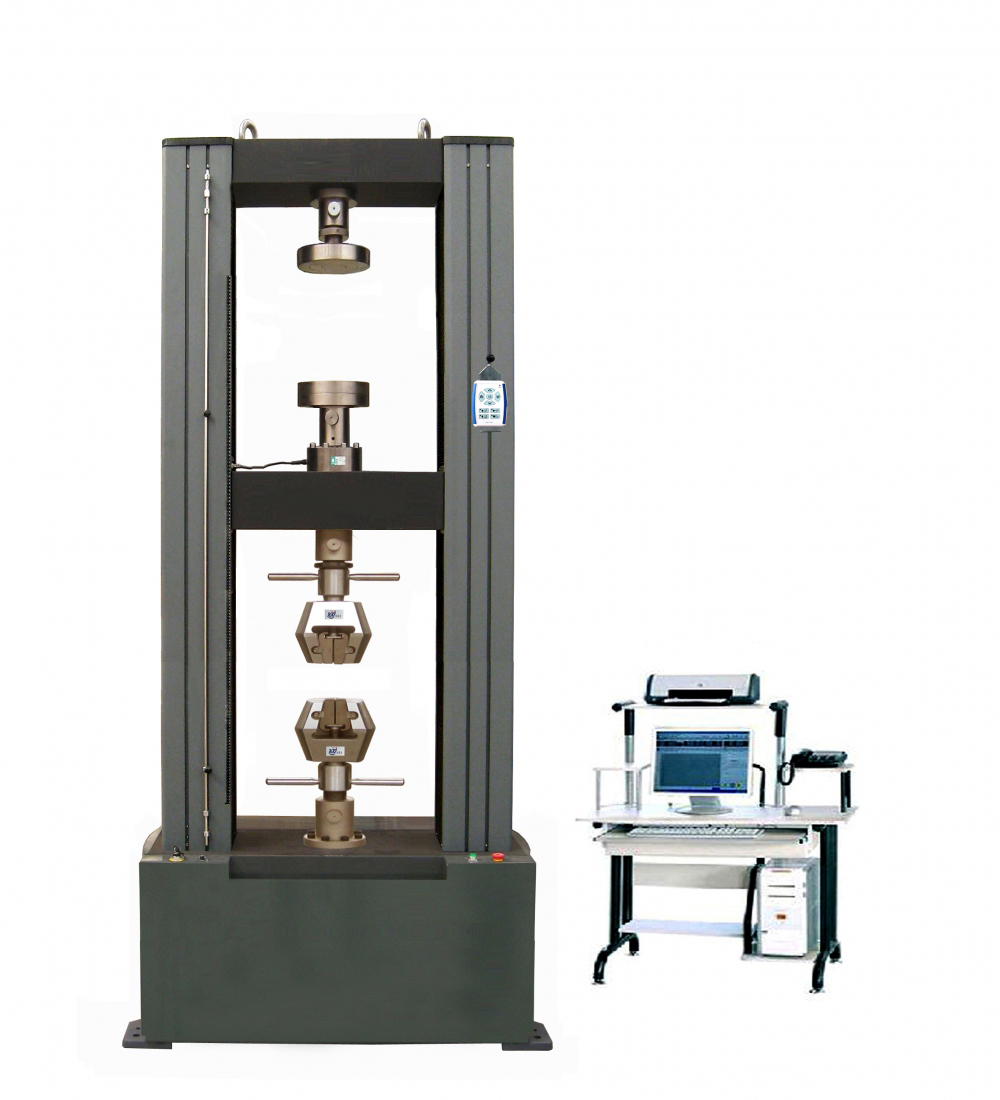

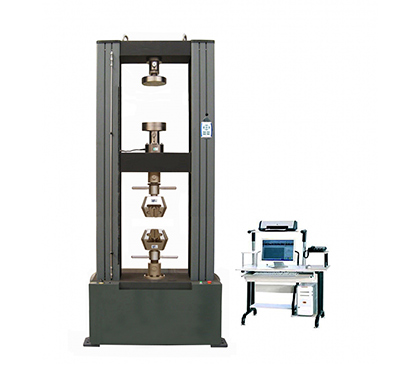

Computer Control Electronic Universal Testing Machine

TBTWDW-200H

Mainly used to perform tension, compression, bending and other mechanical property indexes for metallic, nonmetallic and composites

Technical Parameters

No.	Items	Technical Specification
1	Max. Test force	200KN
2	Load class	Class 0.5
3	Measuring range of load	1%-100%
4	Relative error of indicating value	Within ±1.0%
5	Load resolution	1/±300000F.S (with unchanged resolution during the whole test)
6	Measuring range of deformation	0.2%-100%
7	Adjusting range of load rate	0.005%-5%FS/S
8	Control precision of load rate	Within ±1%
9	Adjusting range of deformation rate	0.005-5%FS/S
10	Control precision of deformation rate	Within ±1%
11	Adjusting range of displacement rate	0.001-500mm/min
12	Control precision of displacement rate	Within ±0.2% of the set value
13	Stroke of cross head(without grips)	1200mm
14	Effective test span	610mm
16	Control mode	Computer control
17	Power supply	380V, 50Hz
18	Power	5.0kW
19	Dimension (LWH)	10507502600mm
20	Weight	Approx.1600kg
