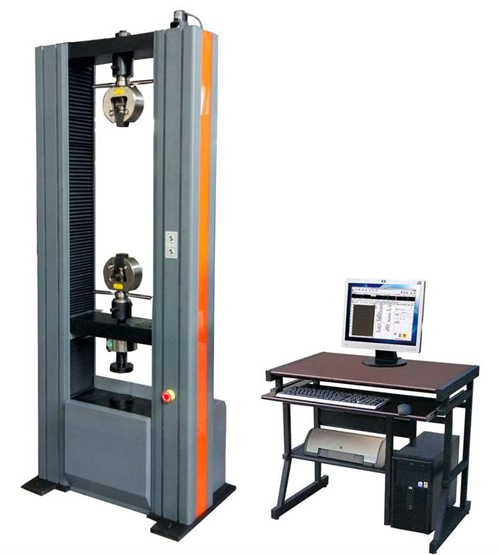

Computerized Electronic Universal Testing Machine
The machine utilizes an AC servo motor & driver to drive the precision ball screw through the decelerating system. It also makes use of a full digital controller as the control system core controlling software & data processing via a Windows operating system, thus ensuring a wide array of testing speeds are available to perform tensile, compression, bending, and flexural tests for metal and non-metal materials in a process that is both stable and efficient with very little noise. Thanks to the use of international advanced control technology, this test machine will achieve a constant velocity deformation, displacement, and test force control.
Test parameters are set using the computer, which automatically controls the test process, carries out data acquisition, processing, analysis and display (test data for materials includes the upper and lower yield points, tensile strength, fracture strength, elastic modulus, and Elongation, δ0.2). Tests are controlled in a precise, accurate manner.
Equipped with advanced standards that meets both national and user-provided standards, this equipment will process the test data, as well as output or print the required test curves or test reports. It is specially designed for the user to choose the test curves for stress-strain, loading-time, loading-displacement, displacement-time or deformation-time and display, enlarge, compare, or monitor the testing process.
Beam movement is easily adjustable to be faster or slower when clamped onto specimens, and the switch is easily operated.
The testing machine features a limit, overload, and overcurrent protection in any working position, ensuring it is both reliable and safe.
With a self-built test database, test data can be saved, queried and recalled at any time.
This universal testing equipment benefits from a highly automated series of test processes and installation of dozens of different fixtures, ensuring the equipment will meet customer requirements for testing a variety of material.
Standard:ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,
GB/T228-2002, etc.
| Max. loading capacity | 100KN |
| Testing grade | class 1 |
| Loading measuring range | 0.4% -100% |
| Loading measuring accuracy | better than ± 1% |
| Loading resolution | 1/300000 |
| Displacement resolution | 0.01mm |
| Displacement measurement accuracy | ± 0.5% |
| Test speed range | 0.01-500mm / min |
| Speed control accuracy | ±1%(0.01~10mm/min); ±0.5%(10~500mm/min.) |
| Vertical tensile space | 600mm |
| Vertical Compression space | 600mm（can be customized） |
| Compression plate diameter | 100mm（can be customized） |
| Test width | 400mm（can be customized） |
| Fixture clamping | Flat sample 0-7mm Round sample Φ4-9mm (Wedge-shaped) |
| Main unit size | Around 760 * 520 * 1950mm |
| Main unit weight | Around 500Kg |
| Power supply | 220VAC 50HZ |
| Power | 1.5KW |
Main Note for configure
1.Motor: TECO from Taiwan ------can be changed to Panasonic for an extra cost
2.Load cell: made in China ------ can be changed to Celtron for an extra cost
3.Standard configuration: WITHOUT a large deformation device and extensometer
4.Standard packing list
| Item | No. | specification | quantity | Remark |
| Main Product | 1 | Loading frame | 1PC | Total 1 Box |
| 2 | Computer for control | 1set | ||
| 3 | printer | 1PC | ||
| Accessories | 1 | Clamps for Tensile | 1set | |
| 2 | Clamps for Compression | 1set | ||
| Technical documents | 1 | Manual | 1PC | |
| 2 | Packing list | 1PC | ||
| 3 | software Disk | 1PC | ||
| 4 | Certificate | 1PC |

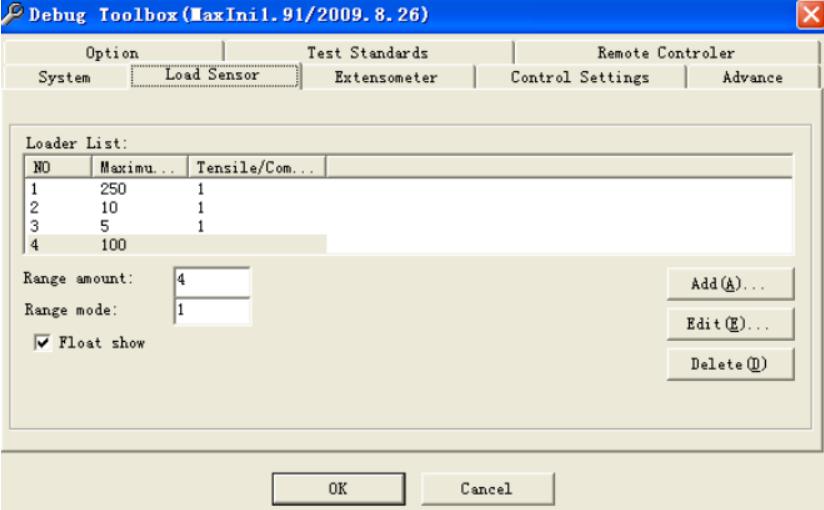

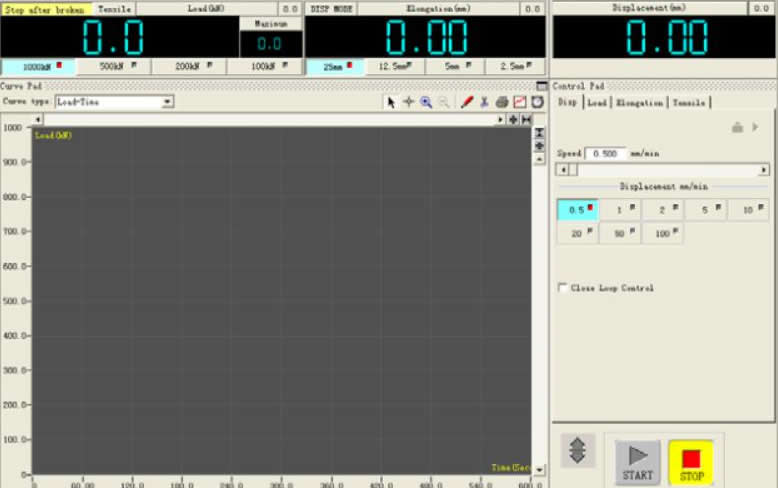

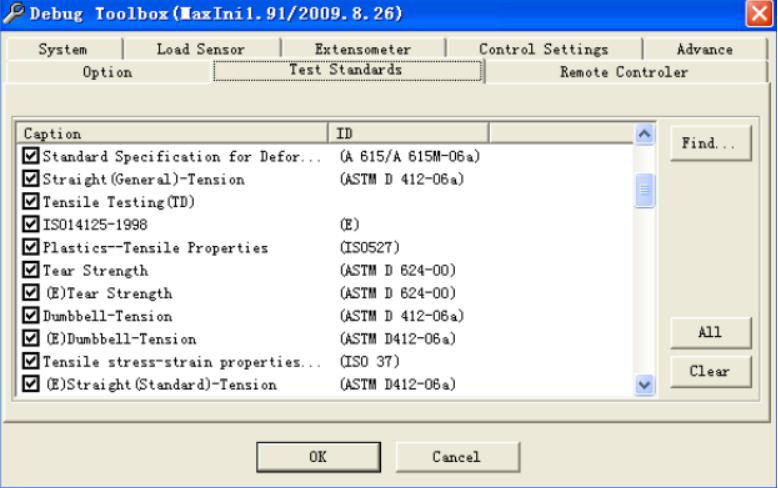

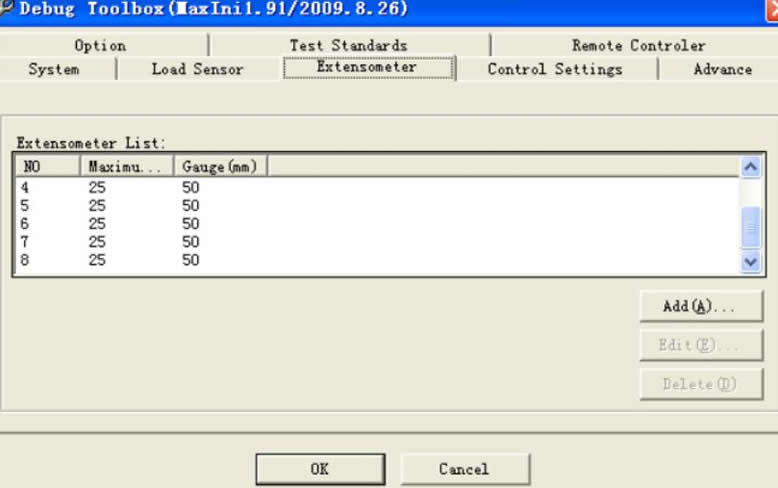

Screenshot of software operation
