Universal Automatic Testing Machine | Hydraulic Tensile Tester

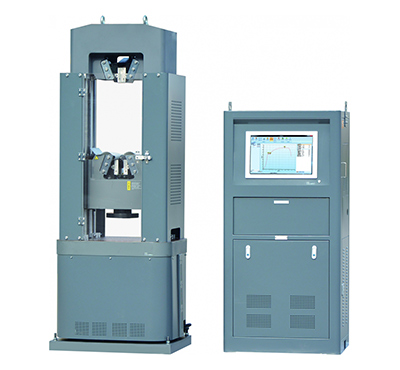

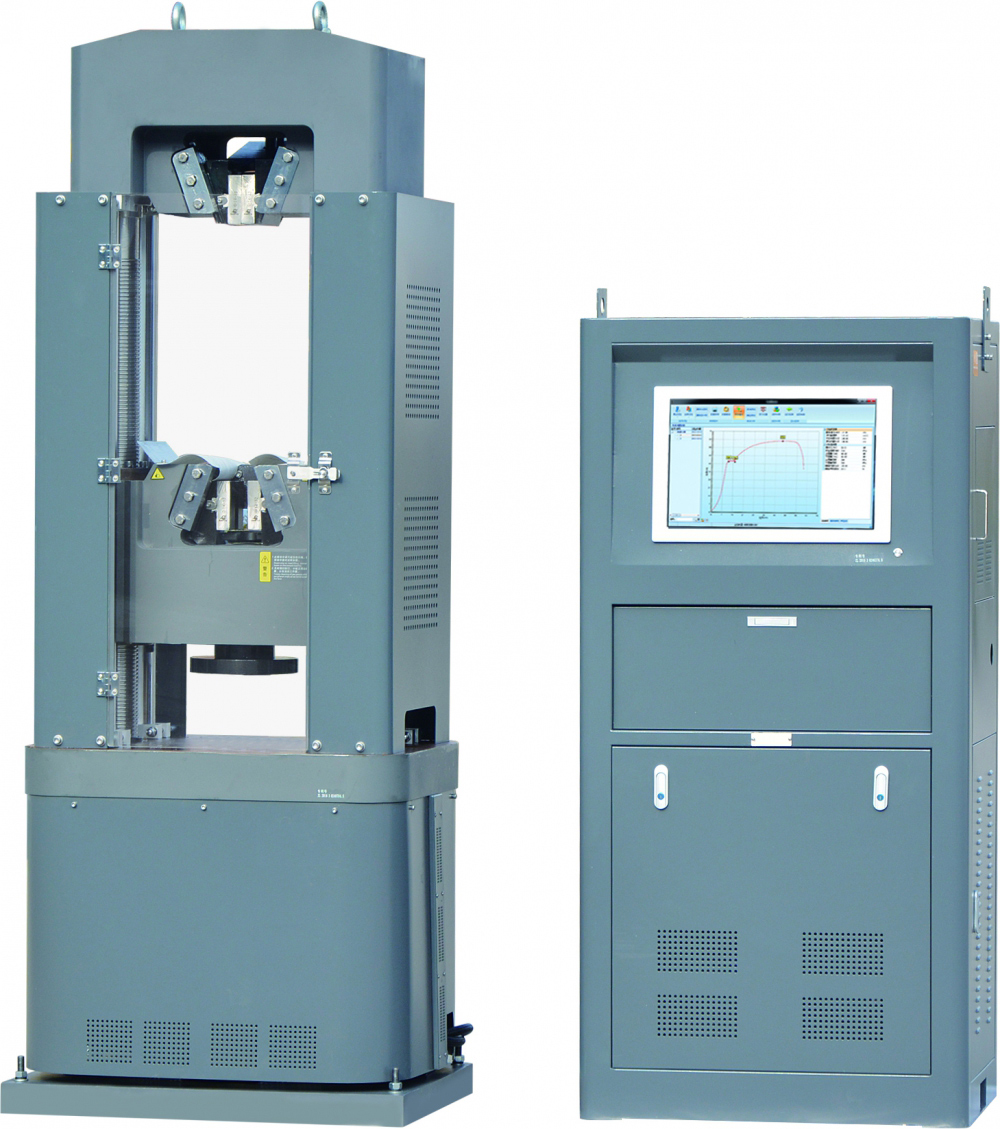

Universal automatic Hydraulic servo-controlled tensile testing machine

Model: TBTUTM-100CSI/300CSI/600CSI/1000CSI

This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.

Technical Parameters

	TBTUTM-100CSI	TBTUTM-300CSI
Capacity：	100KN	300KN
Accuracy degree:	Grade 1	Grade 1
Relative error:	±1%	±1%
Effective measurement range：	1%-100%F·S(full measurement)	1%-100%F·S(full measurement)
Deformation measurement range	1%-100%F·S	1%-100%F·S
Deformation indicate relative error	±1%	±1%
Displacement relative error	±1%	±1%
Displacement measurement resolution	0.001mm	0.001mm
Stress rate relative error	±2%	±2%
Displacement rate control relative error	±1%	±1%
The strain rate control adjustment range	0.00025/s-0.0025/s	0.00025/s-0.0025/s
The strain rate control relative error	±2%	±2%
Stress, deformation & displacement control range	0.3%-100%F·S	0.3%-100%F·S
Stress, deformation & displacement relative error	≦1%	≦1%
Middle beam lifting speed	320 mm/min	320 mm/min
Distance between upper and lower platen	500mm	600 mm
Tensile distance	600mm max	700 mm max
Effective distance between two columns	380mm	380mm
Piston stroke	200mm	200 mm
Piston loading max. speed	100mm/min	120 mm/min
Round specimen diameter	Φ6 mm -Φ22 mm	Φ10 mm -Φ32 mm
Flat specimen diameter	0 mm -15 mm	0 mm -20 mm
The maximum distance between the bending test	300mm	300 mm
Power supply	380VAC/220VAC	380VAC/220VAC

	TBTUTM-600CSI	TBTUTM-1000CSI
Capacity：	600KN	1000KN
Accuracy degree:	Grade 1	Grade 1
Relative error:	±1%	±1%
Effective measurement range：	1%-100%F·S(full measurement)	1%-100%F·S(full measurement)
Deformation measurement range	1%-100%F·S	1%-100%F·S
Deformation indicate relative error	±1%	±1%
Displacement relative error	±1%	±1%
Displacement measurement resolution	0.001mm	0.001mm
Stress rate relative error	±2%	±2%
Displacement rate control relative error	±1%	±1%
The strain rate control adjustment range	0.00025/s-0.0025/s	0.00025/s-0.0025/s
The strain rate control relative error	±2%	±2%
Stress, deformation & displacement control range	0.3%-100%F·S	0.3%-100%F·S
Stress, deformation & displacement relative error	≦1%	≦1%
Middle beam lifting speed	320 mm/min	320 mm/min
Distance between upper and lower platen	600mm	600 mm
Tensile distance	700mm max	700 mm max
Effective distance between two columns	375mm	455mm
Piston stroke	200mm	200 mm
Piston loading max. speed	120mm/min	100 mm/min
Round specimen diameter	Φ13 mm -Φ40 mm	Φ14 mm -Φ45 mm
Flat specimen diameter	0 mm -20 mm	0 mm -40 mm
The maximum distance between the bending test	300mm	300 mm
Power supply	380VAC/220VAC	380VAC/220VAC
