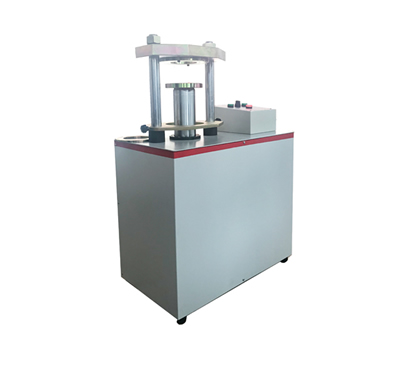

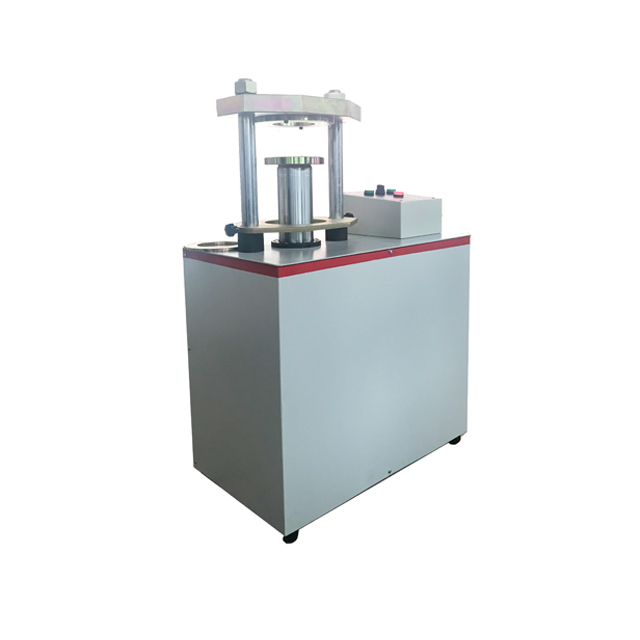

Electric Hydraulic Sample Extruder, TBTTM-300C

TBTTM-300C multifunctional hydraulic sample extruder is suitable for ejection of geotechnical compaction specimens, Marshall compaction specimens, and unconfined compression specimens.
The hydraulic power unit adopts G-gear-pump integrating design, configured with rigid frame structure, greatly improving the safety performance.
The hydraulic sample extruder features compact structure, large ejecting force, easy operation, stability and reliability.

Technical Parameters
Oil tank capacity rated capacity 8L
Lifting rate 90 - 150mm/min
Demoulding specifications
Φ50 (mainly used for lime soil and unconfined specimens)
Φ100, Φ150 (mainly used for soil compaction and unconfined specimens)
Φ101.6, Φ152.4 (mainly used for Marshall compaction test piece)
Other special specifications can be customized
Maximum demoulding height 240mm
Power supply 220VAC 50HZ
Dimension Around 690mm×410mm×1020mm
Electric Hydraulic Sample Extruder, TBTTM-300C

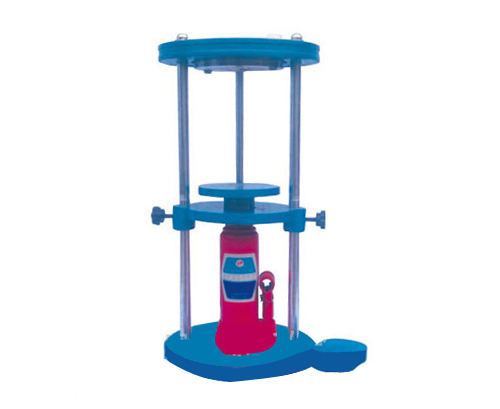

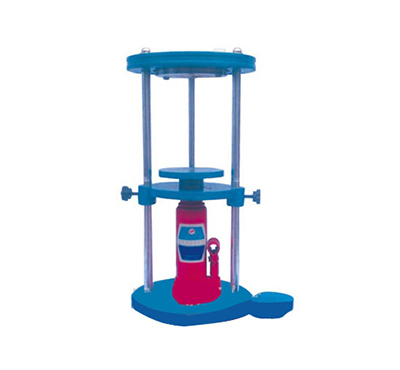

TYT-3 Sample Ejector

  • Capacity: 5 tons max.
  • Specimen size: Ø 152mm x 116mm, Ø 102mm x 116mm
  • Weight: 47kg
TYT-3 Sample Ejector
