Freeze Thaw Cabinet

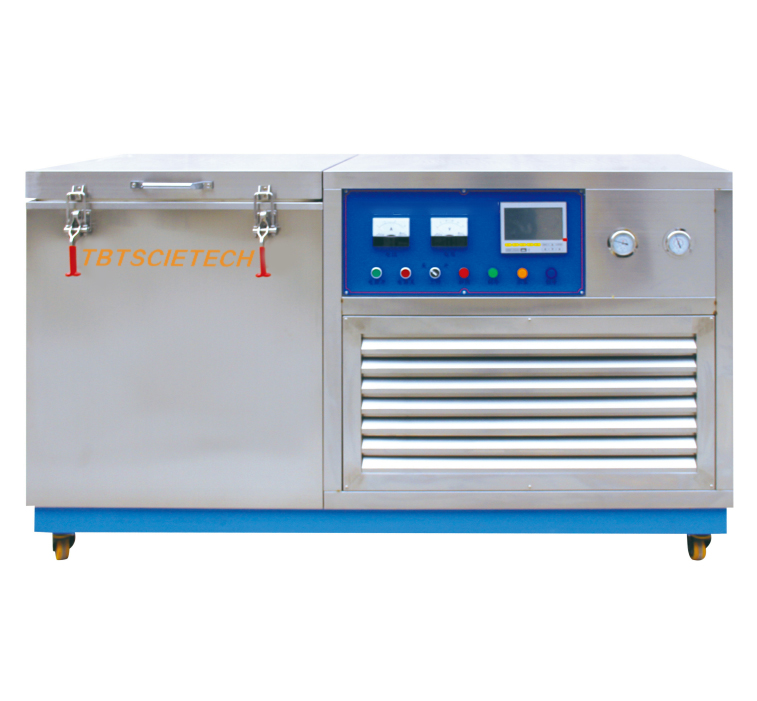

TBTTDR-16A Freeze Thaw Cabinet
TBTTDR-16A freeze thaw cabinet is used to measure the resistance of concrete to deterioration caused by repeated cycles of freezing and thawing. This freezing and thawing testing machine permits the evaluation of variables in concrete properties and conditioning.
Technical Parameters
| Accepted specimen | 16pcs |
| Specimen dimension | 100×100×400mm |
| Specimen container dimension | 120×120×500mm |
| Freezing and thawing circle | Around 2.5-4 hours |
| While thawing time is no less than 1/4 of the whole circle | |
| Freezing and thawing medium | Antifreeze fluid (-45℃) |

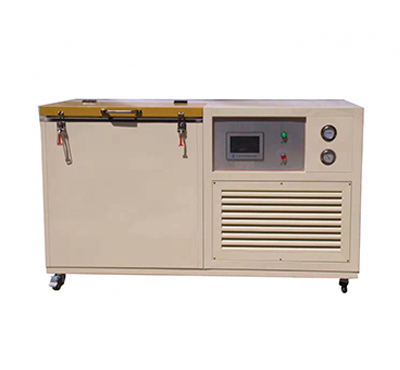

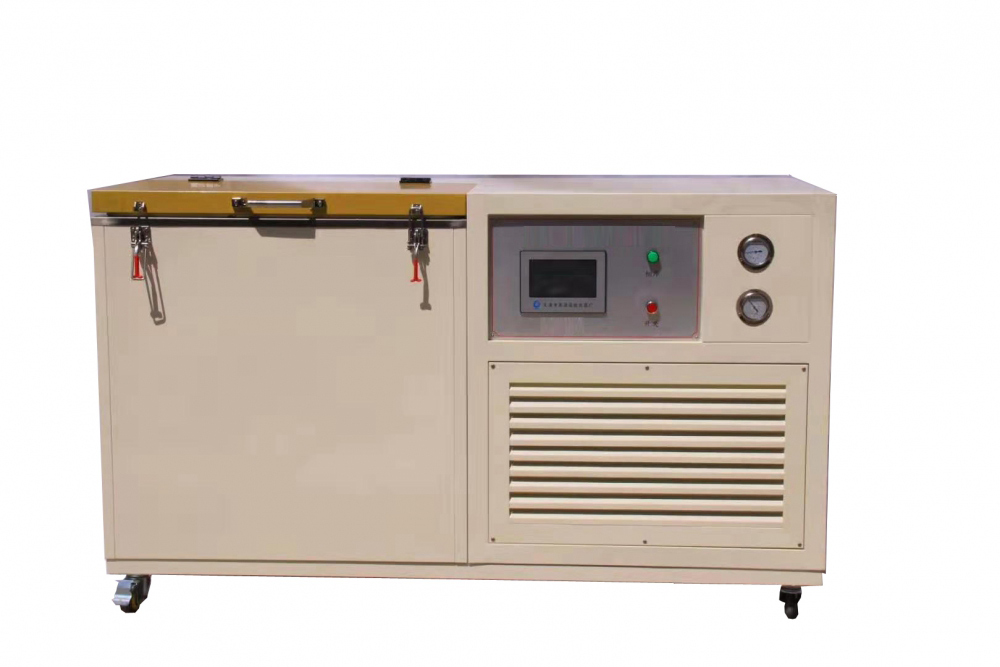

TBTTDR-10 Freeze Thaw Cabinet
TBTTDR-10 freeze thaw cabinet is suitable for the determination of concrete specimen under the water freezing and thawing conditions. This freezing and thawing testing machine measures the resistance of concrete to deterioration caused by repeated cycles of freezing and thawing in order to evaluate concrete performance.
Technical Parameters
| Accepted specimen | 10pcs |
| Specimen dimension | 100×100×400mm |
| Freezing and thawing circle | Around 2.5-4 hours |
| While thawing time is no less than 1/4 of the whole circle | |
| Freezing and thawing medium | Antifreeze fluid (-45℃) |
| Cooling compressor | Brand DANFOSS, 3HP |
| Heating power | 2.5kW |
| Max. working power | 3kW |
| Power supply | 3N-380V, 50Hz |
