Cement Mortar Mixer

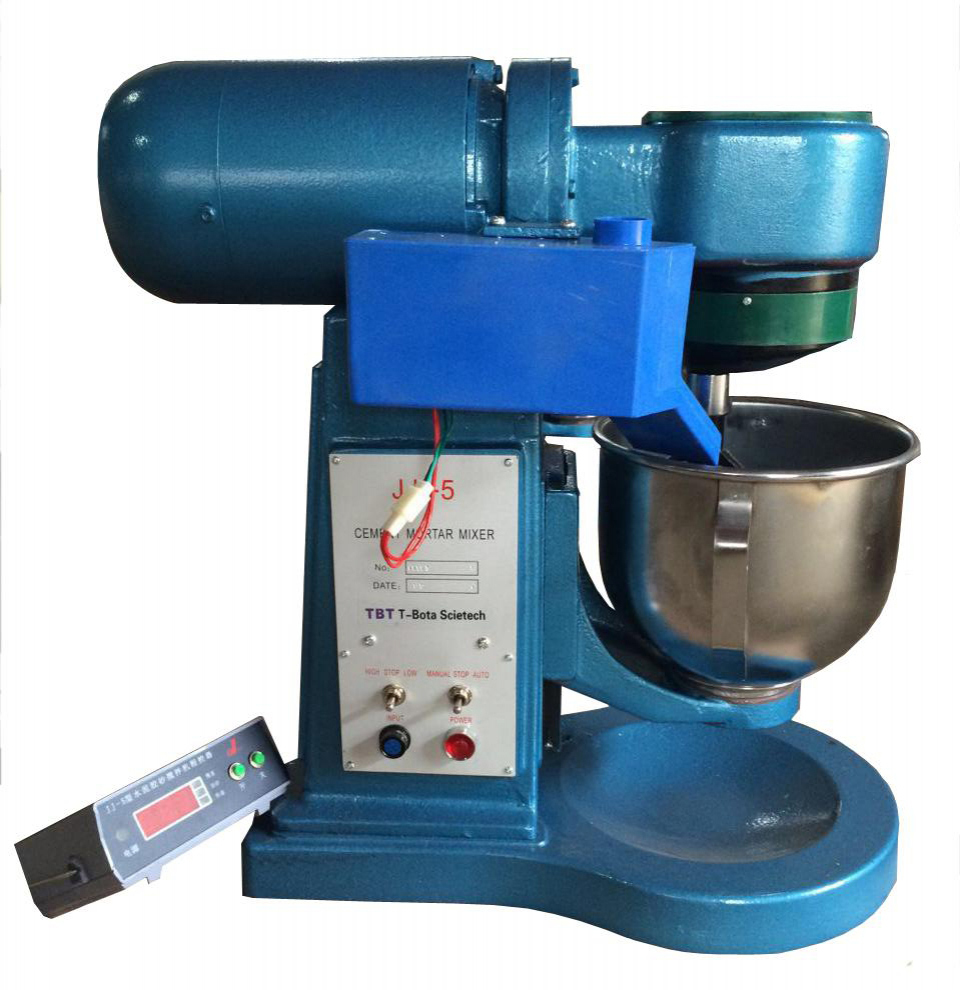

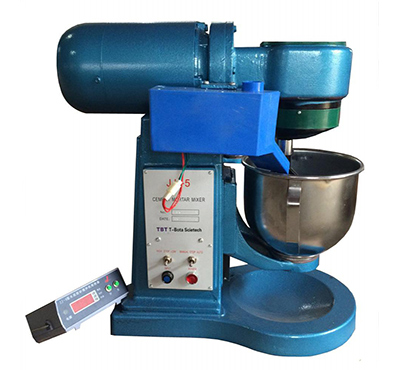

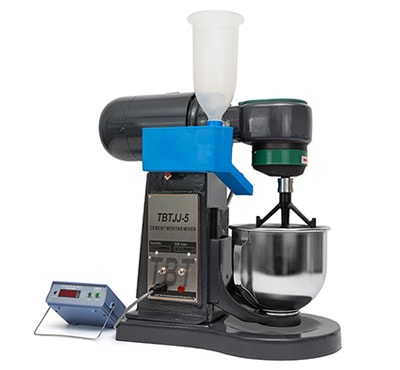

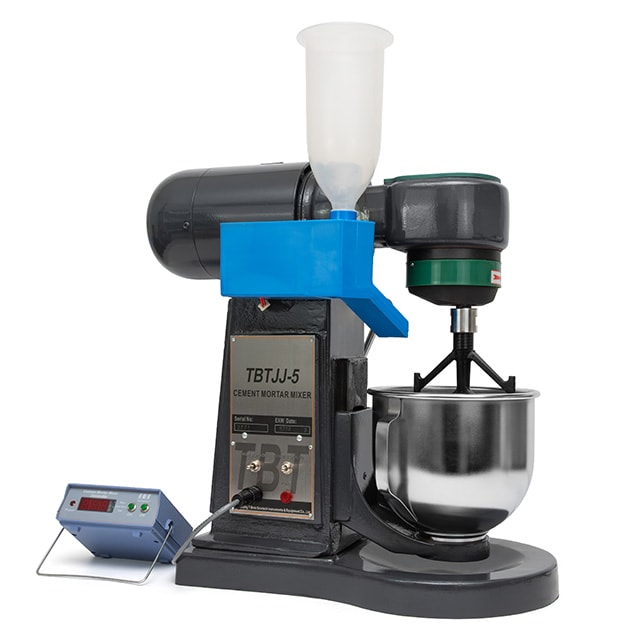

TBTJJ-5 mortar mixer is designed to mix cement, water and sand to prepare cement paste or mortar for specimens that used in normal consistency tests and setting time tests.
1. Mixing leaves
| Mixing blade width | 135mm | ||
| Mixing bowl capacity | 5L | ||
| Mixing blade speed | Rotation | Revolution | |
| Low speed | 140±5r/min | 62±5r/min | |
| High speed | 285±10r/min | 125±10r/min | |
| Power supply | 220V AC, 50Hz, 370W | ||
2. The shaft connecting screw between the stirring blade and the stirring leaf is M18x1.5.
3. The mixing pot volume is 5L and mixing pot wall thickness is 1.5mm.
4. The working gap between the stirring blade and the stirring pot is 3±1mm.
5. The motor is a vertical type split horsepower dual speed motor with a power of 0.55/0.37kw.
6. Net weight: 70kg

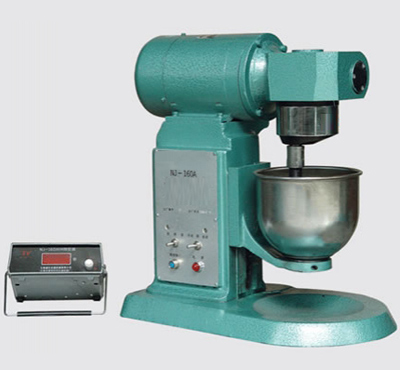

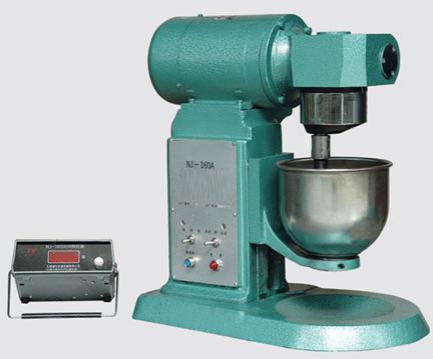

TBTNJ-160A cement mixer is used to mix cement and water to prepare homogeneous paste and specimen for normal consistency tests and setting time tests.
1. Rotation and time of stirred leaf
| Speed | Revolution(r/min) | Rotation(r/min) | Control time(s) |
| Low | 62±5 | 140±5 | 120±3 |
| Stop | 15 | ||
| High | 125±10 | 285±10 | 120±3 |
| Mixing bowl capacity | 2.5L | ||
| Power | 380V 50HZ 370W | ||
| Size | 472x280x466mm | ||
| Net weight | ≈45kg | ||
2. Stirring blade width: 111±0.15mm
3. Shaft connecting screw for mixing leaf & blade: M16x1
4. Stirring pot: max. inner diameter 160±1mm, max. depth 139±2mm
5. Stirring pot wall thickness: 1mm
6. Working gap between stirring blade and stirring pot: 2±1mm
7. Outer size: 472x280x458mm
8. Net weight: 60kg
