Universal Testing Machine with LCD screen digital display

Model: TBTUTM-100B,TBTUTM-300B,TBTUTM-600B,TBTUTM-1000B

The testing machine is mainly designed for metal of tension test, compression test and bending test, also for non-metal of compression test, such as concrete and stone

Technical Parameters
Model TBTUTM-100B TBTUTM-300B TBTUTM-600B TBTUTM-1000B
Max. Capacity(KN) 100 300 600 1000
Range 4%-100%F.S.(Full range, without gear）
Reading accuracy Grade 1
Error ±1%
Column Number 4 4 4 6
Width between two column 345 430 515 510
Max tensile space（mm) 500 600 600 600
Max compression space(mm) 500 600 600 600
Bending test Distance between two points(mm) 100-270 100-350 100-400 100-400
Round specimen clamp diameter(mm) Ø6-Ø22 Ø10-Ø32 Ø13-Ø40 Ø20-Ø40
Flat specimen clamp thickness (mm) 0-15 0-15 0-15 0-40
Stroke (mm) 150 200
Pistons rise fastest speed(mm/min） 100 80
Beam rising speed (mm/min) 310 250 250 310
Displacement reading relative error ±1%
Motor capacity (KW) 2 2.5
Main unit dimension (mm) 665×490×1600 740×460×1900 850×560×2000 960×620×2100
Oil source cabinet dimension(mm) 540×540×1300
Main unit weight 600 1200 1750 2200
Oil source cabinet weight 210

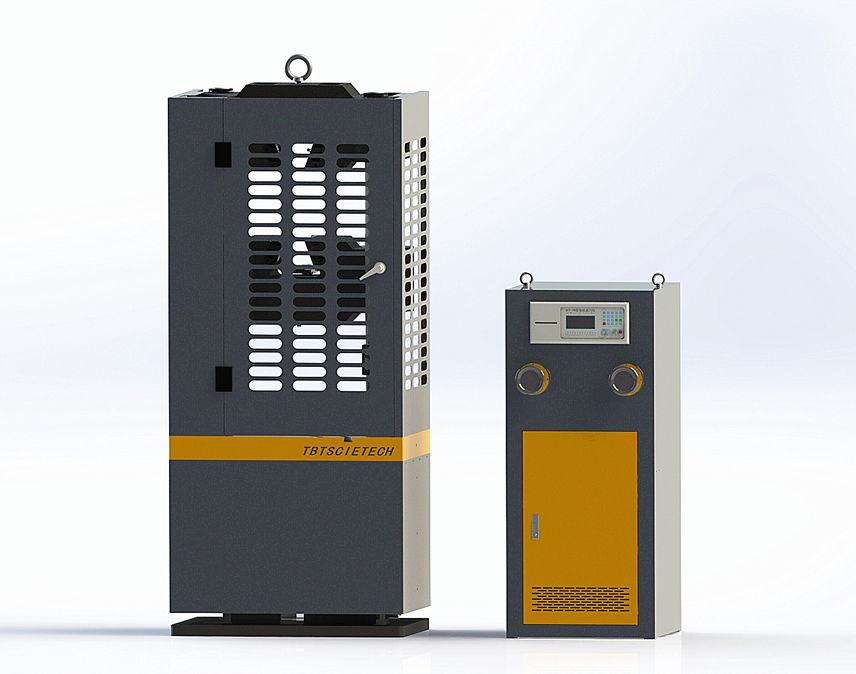

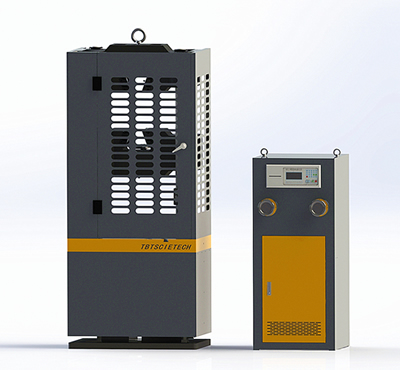

TBTUTM-1000B Series Universal Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
