Cement Autoclave

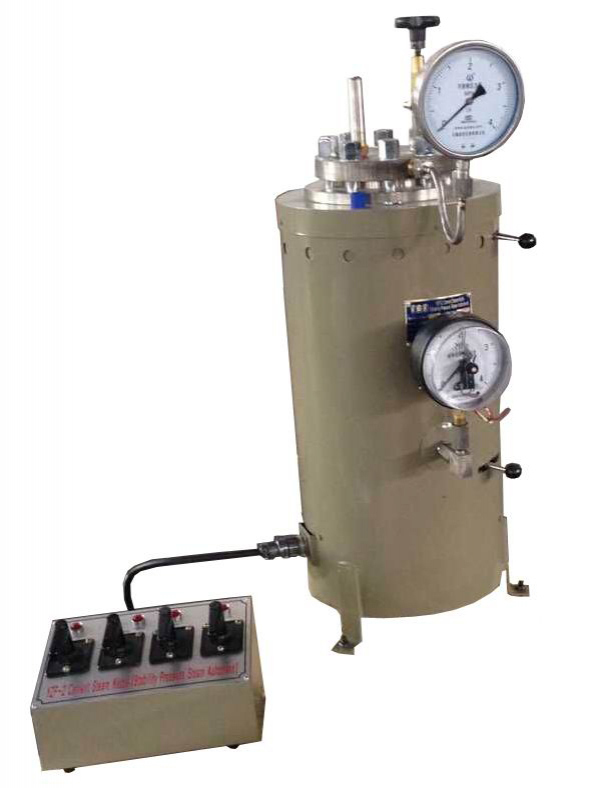

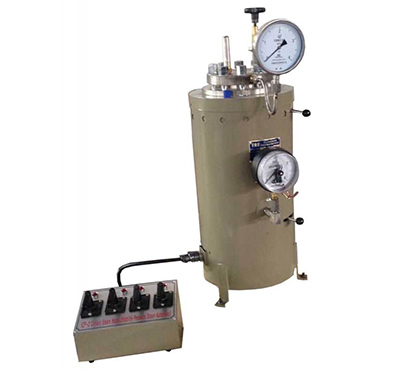

TBTYZF-1 Cement Autoclave
TBTYZF-1 cement autoclave is used for determining the soundness of cement.
This cement autoclave is available in analogue style, or digital style. The control panel can enclose a pressure sensor to collect data and visualize the inside pressure and temperature.
Technical Parameters
| Max. pressure inside the vessel | 2~2.2Mpa |
| Max. temperature | 216℃ |
| Heating capacity | 0.6kW/1.2kW |
| Distilled water volume | 1000ml |
| Power supply | 220V |
| Weight | 130kg |

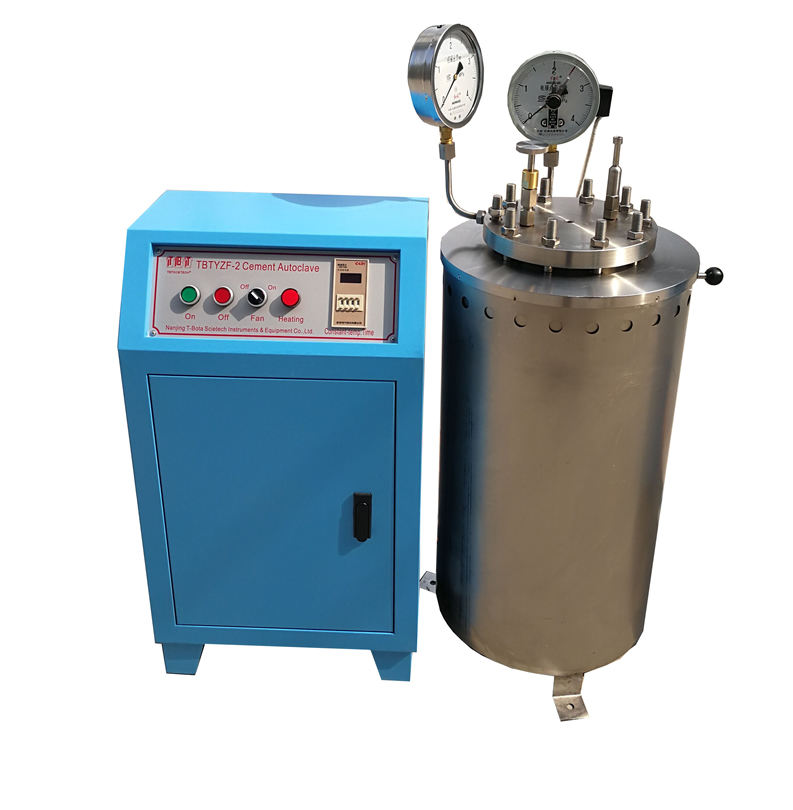

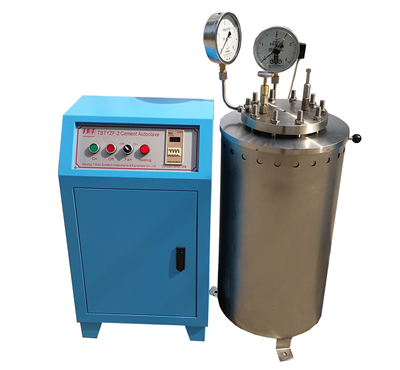

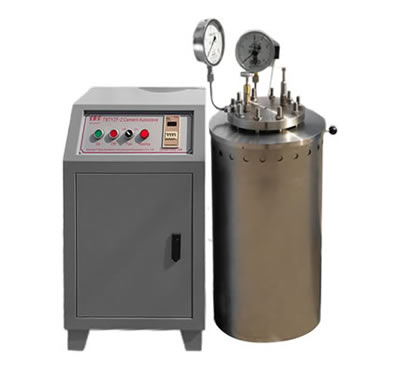

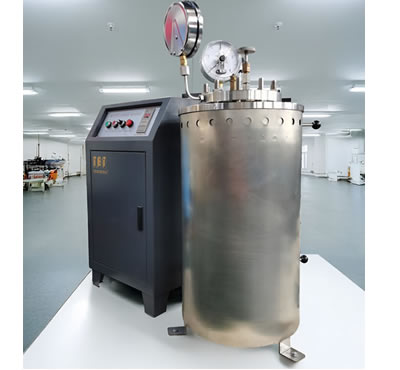

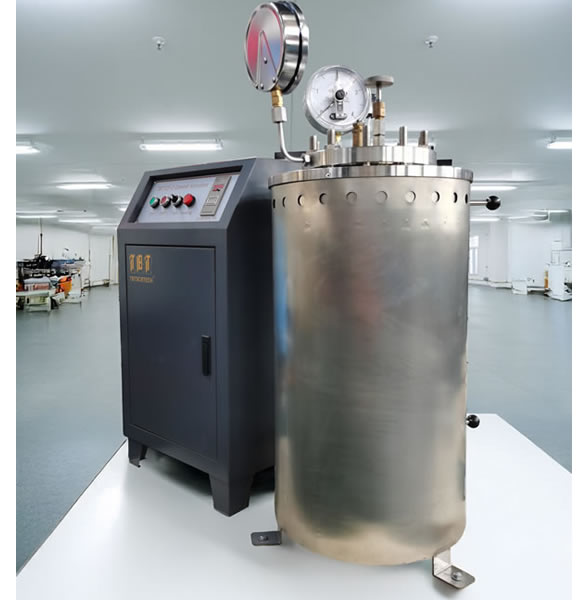

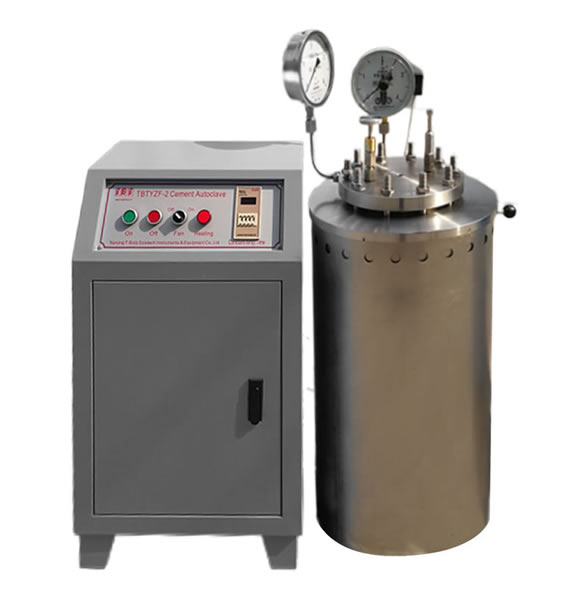

TBTYZF-2 Cement Autoclave
TBTYZF-2 cement autoclave is intended for determining the cement soundness to evaluate the stability of cement. The main material is stainless steel which has great resistance to high temperature, high pressure and steam.
Technical Parameters
| Vessel volume | 8L |
| Inside diameter of vessel | Φ149mm |
| Max. working pressure | 2Mpa (adjustable) |
| Standard pressure loading time (0~2±0.05Mpa; room temperature~215.7 ± 1.3℃) | 45~75min |
| Pressure range | ≯±0.05Mpa |
| Holding time setting | 3h |
| Safe temperature setting | 220℃ |
| Power supply | 220V |
| Power consumption | 1200+600W |

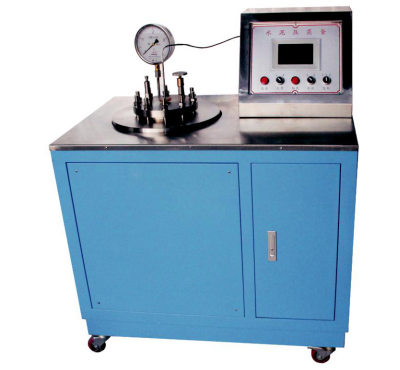

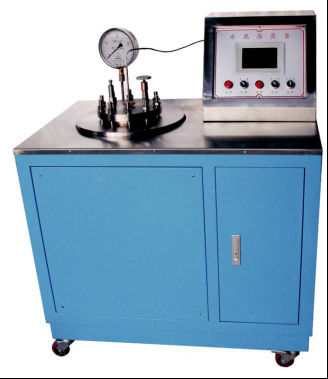

TBTYZF-2D Cement Autoclave
TBTYZF-2D cement autoclave is one-piece digital displayed autoclave that is used for determining the soundness of cement. It is digital style with pressure sensor to collect data and visualize the inside pressure and temperature.
Technical Parameters
| Vessel volume | 8L |
| Inside diameter of vessel | Φ149mm |
| Max. working pressure | 2Mpa (adjustable) |
| Standard pressure loading time (0~2±0.05Mpa; room temperature~215.7±1.3℃) | ≈45min |
| Safety valve opening pressure | 3.0Mpa |
| Pressure range | ≯±0.05Mpa |
| Holding time setting | 1~99h |
| Power supply | 220V |
| Power consumption | 1200+600W |
| Dimension | 1000x660x1320mm |
| Weight | Around 75kg |
