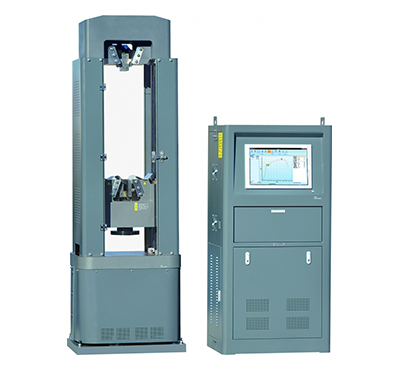

Universal Testing Machine with PC & servo control

Model: TBTUTM-CSIG Series

TBTUTM-CSIG series machines are mainly used for metal, non-metal materials tensile, compression, bending, shear and other mechanical properties.

Technical Parameters

	TBTUTM-600CSIG	TBTUTM-1000CSIG
Capacity：	600KN	1000KN
Accuracy degree:	Grade 1	Grade 1
Relative error:	±1%	±1%
Effective measurement range：	1%-100%F·S(full measurement)	1%-100%F·S(full measurement)
Deformation measurement range	1%-100%F·S	1%-100%F·S
Deformation indicate relative error	±1%	±1%
Displacement relative error	±1%	±1%
Displacement measurement resolution	0.001mm	0.001mm
Stress rate relative error	±2%	±2%
Displacement rate control relative error	±1%	±1%
The strain rate control adjustment range	0.00025/s-0.0025/s	0.00025/s-0.0025/s
The strain rate control relative error	±2%	±2%
Stress, deformation & displacement control range	0.3%-100%F·S	0.3%-100%F·S
Stress, deformation & displacement relative error	≦1%	≦1%
Middle beam lifting speed	320 mm/min	320 mm/min
Distance between upper and lower platen	900mm	900 mm
Tensile distance	900mm max	900 mm max
Effective distance between two columns	375mm	455mm
Piston stroke	200mm	200 mm
Piston loading max. speed	120mm/min	100 mm/min
Round specimen diameter	Φ13 mm -Φ40 mm	Φ14 mm -Φ45 mm
Flat specimen diameter	0 mm -20 mm	0 mm -40 mm
Steel strand clamp diameter	Φ8 mm –Φ18 mm	Φ8 mm –Φ18 mm
The maximum distance between the bending test	300mm	300 mm
Total power	2.2KW	2.2KW
Power supply	380VAC	380VAC

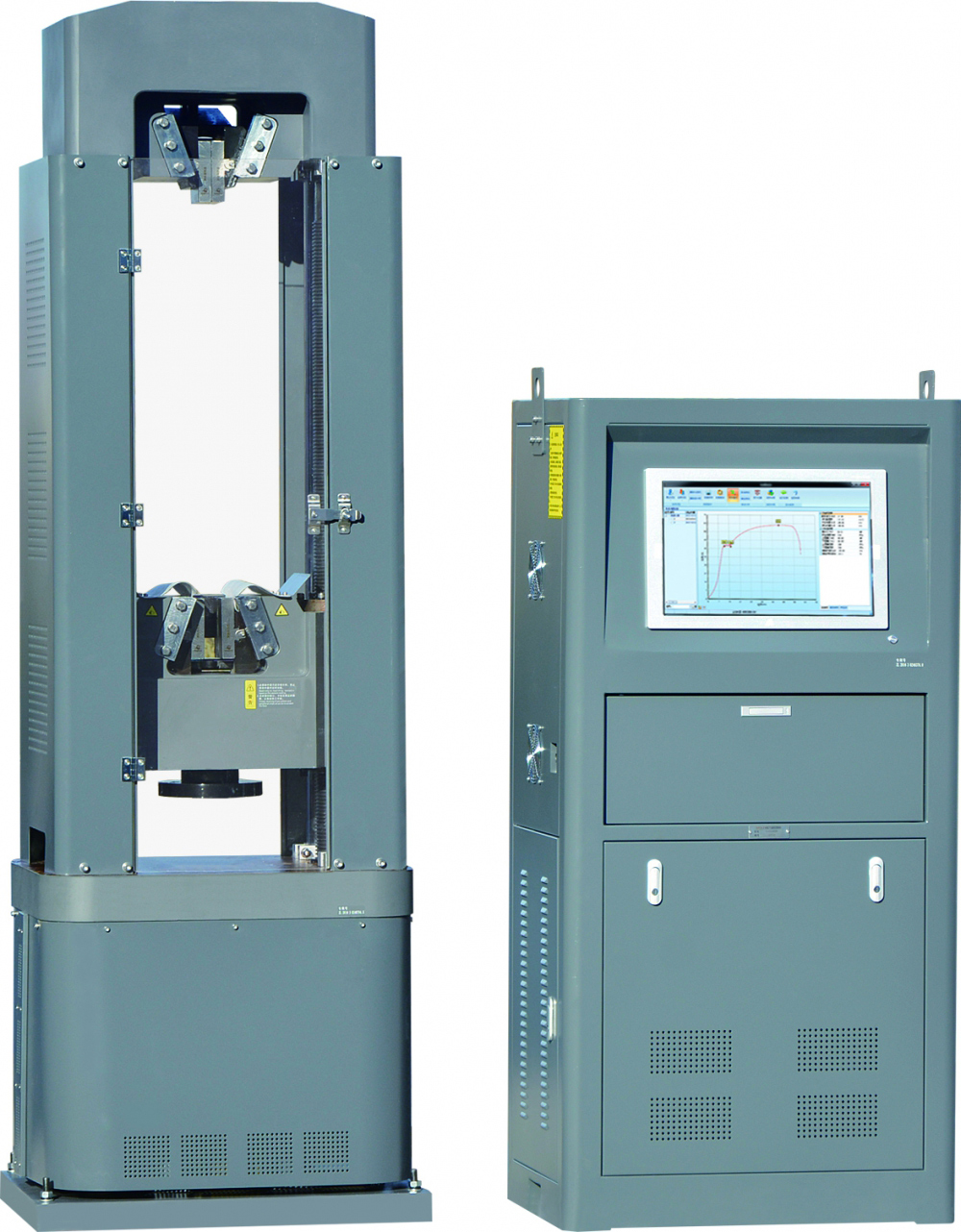

TBTUTM-CSIG series of Universal Testing Machine
