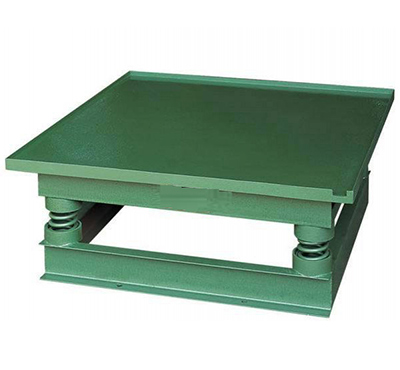

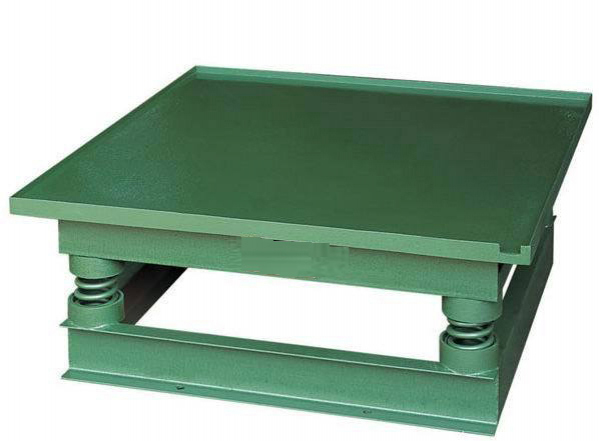

ZT-1000,800,500 Vibrating Table

ZT-1000,800,500 vibrating tables are widely used to make compacted concrete specimen in laboratories. The vibrating table is suitable for making dry and hard concrete specimen with concrete aggregate particles not larger than 40mm and specimen height no more than 200mm.

Technical Parameters

Table size	1000×1000mm	800×800mm	500×500mm
Amplitude (without load)	0.5±0.2mm	0.5±0.2mm	0.5±0.2mm
Vibrating frequency	2860r/min	2860r/min	2860r/min
Power	380V 50Hz 1.5kW	380V 50Hz 1.0kW	380V 50Hz 0.75kW

Inquiry
