Fatigue Test Machine

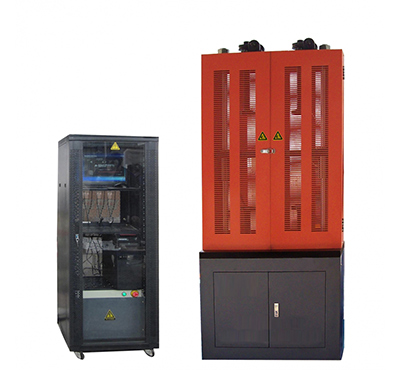

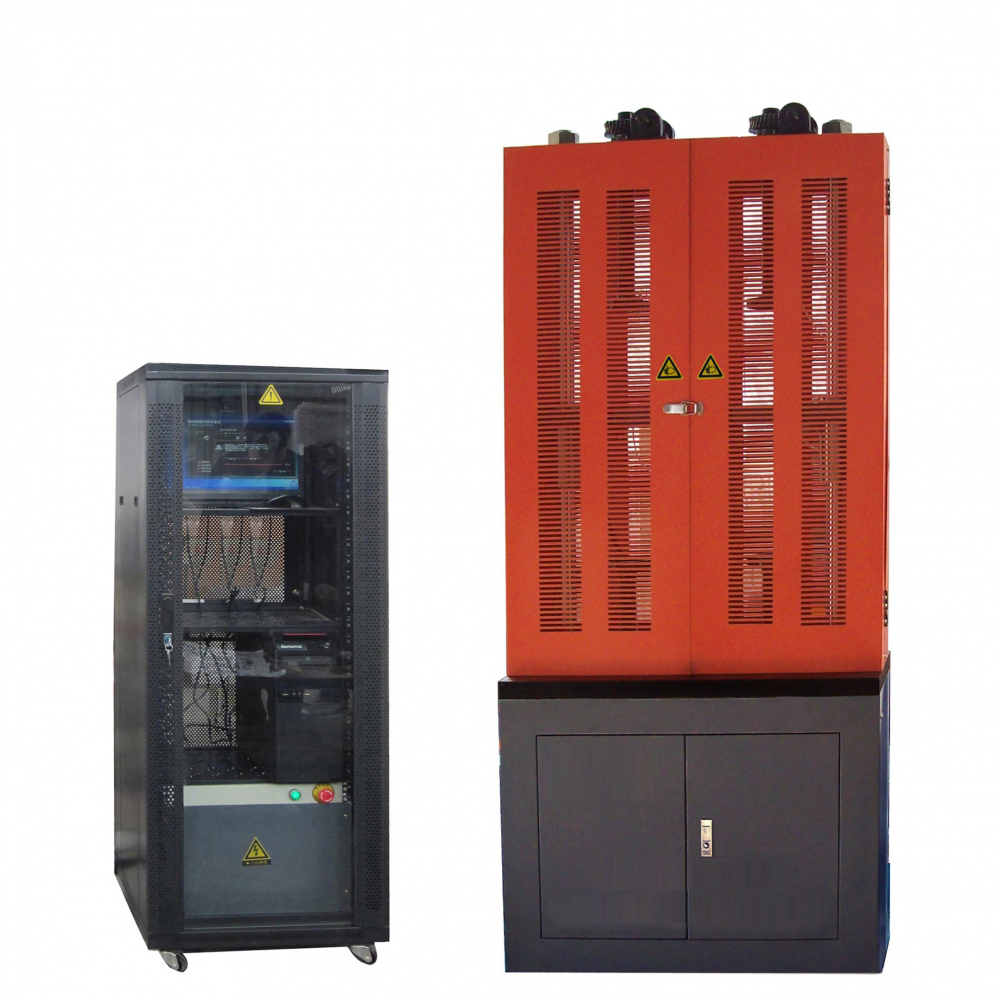

TBTTPJ Series Fatigue Testing Machine

TBTTPJ fatigue testing machine is intended for dynamic test, cyclic life test at ambient temperature and other fatigue tests for various springs (high strength, high stress, special materials) and elastic components.

Technical Parameters
TPJ-1kN/2kN/5kN/10kN/20kN/50kN Two-station/Three-station/Four-station/Multi-station Spring fatigue Testing Machine
1 Max. load capacity 1kN 2kN 5kN 10kN 20kN 50kN
2 Frequency 1-5Hz 0.5-2.5Hz
3 Amplitude 0-±50mmmm (can be customized)
4 Stroke 0-100mm (can be customized)
5 Counter capacity 9×109 times
6 Spring diameter OD≤Φ90mm OD≤Φ150mm
7 Free length of spring 150mm 390mm
8 Vertical test space 200mm (can be customized) 450mm (can be customized)
9 Size of working table Designed as spring size and working position
10 Position number Two-station, three-station, four-station, multi-station
11 Working power 380V, 50Hz
12 Power of main power 8kW 11kW 15kW
TBTTPJ Fatigue Testing Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
