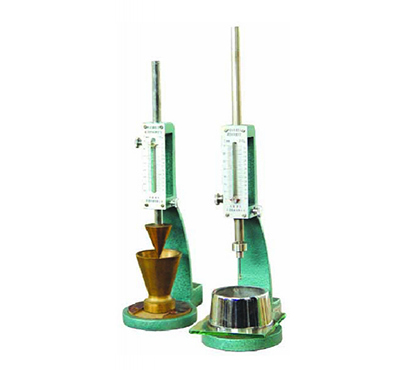

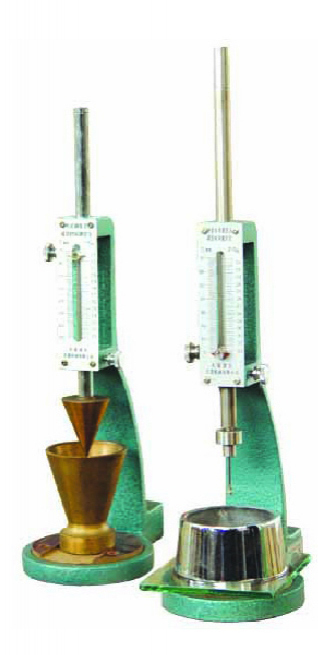

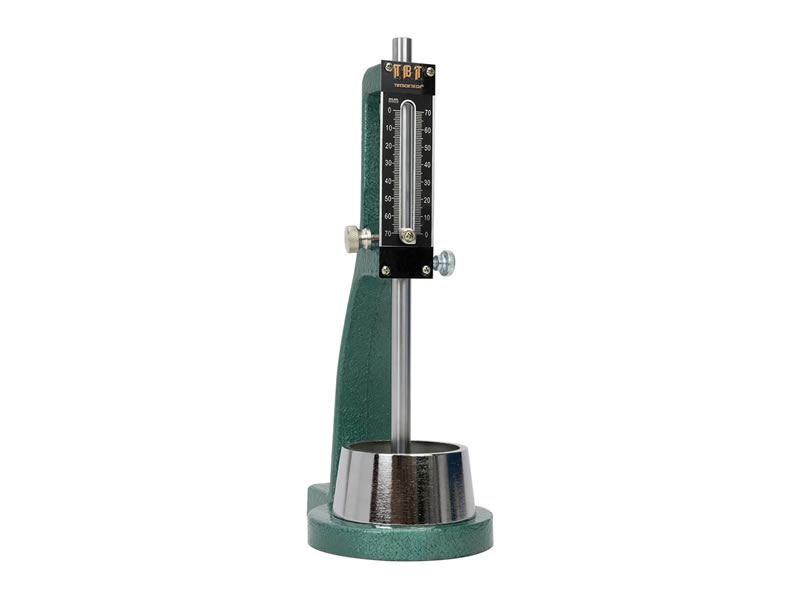

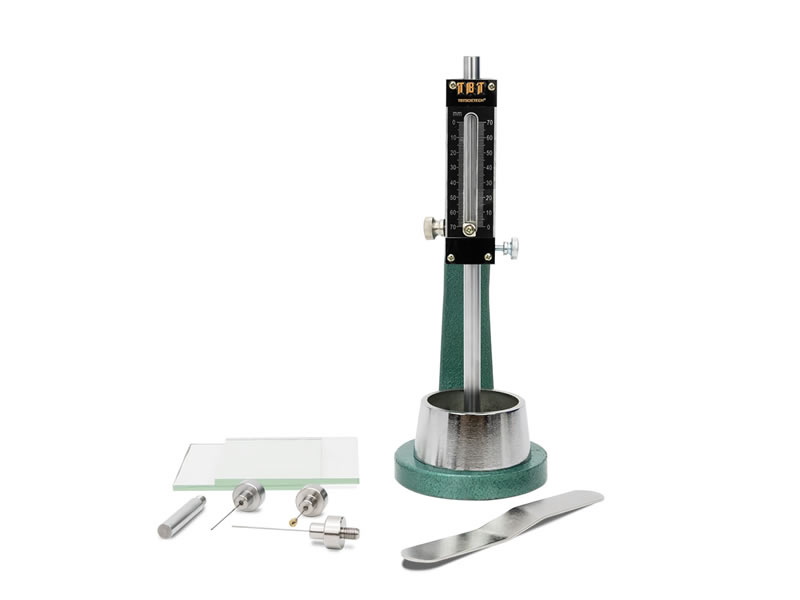

TBTVC-1 standard vicat apparatus is mainly used to determine consistency and initial/final setting time of cements and mortar pastes. This vicat apparatus is suitable for the measurement of Portland cement, slag cement, pozzolana cement and other cement materials.
| Total weight of sliding unit | 300g |
| Max. stroke of sliding unit | 70mm |
| Diameter of test rod | 10mm |
| Diameter of test needle | 1.13mm |
| Overall dimension (LxWxH) | 170x110x300mm |
| Net weight | 3.8kg |
