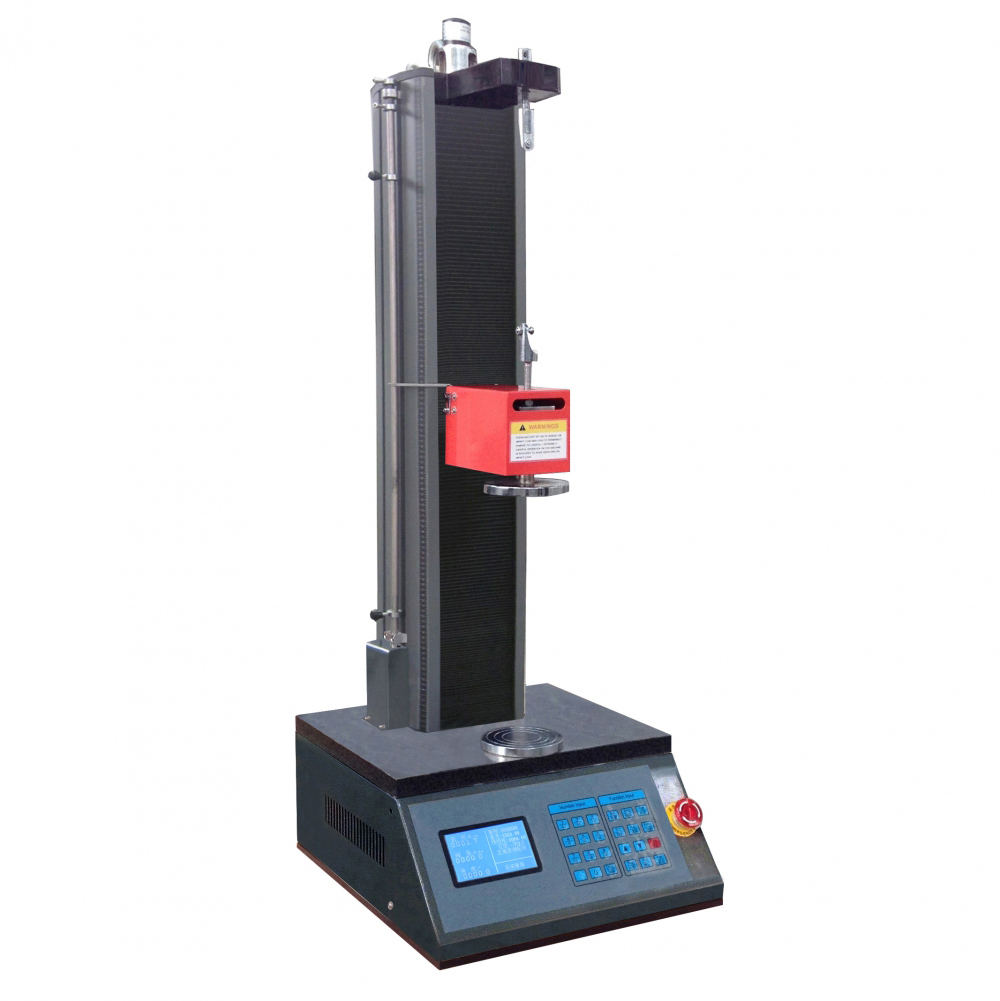

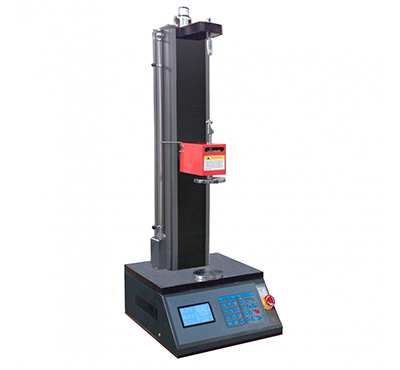

TBTTLS-5 Spring Fatigue Test Machine

Model: TBTTLS-5

TBTTLS-5 spring fatigue test machine can adjust spring amplitude and frequency according to the technical requirements of spring. This test machine also can preset automatic shutdown in order to test frequency. It features simple operation, stable running and reliable performance. All historical data records are saved for checking.

The spring fatigue test machine is available in both digital control and PC control.

Technical Parameters

Max. test force: 5000N, min. reading: 0.1N
Relative accuracy of indicating value of load: ±1.0%
Relative error of repeatability of indicating value of load: ≤1.0%
Effective test space: 500mm
Min. reading of displacement: 0.01mm
Diameter of upper and lower pressure platen: Φ110mm
Moving speed of crosshead: 0.2-500mm/min
Display and operation mode: dot-matrix LCD display and keyboard operation
Voltage: 220VAC, 50Hz, power: 0.4KW
Dimension: 410x470x1150mm
Weight: approx. 105kg
