Concrete Water Permeability Apparatus

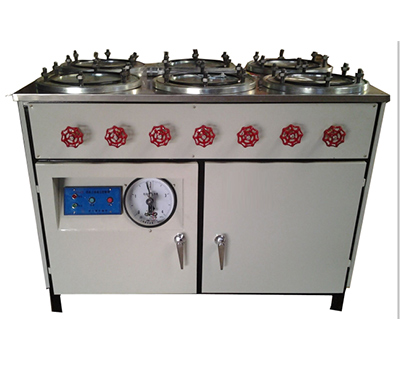

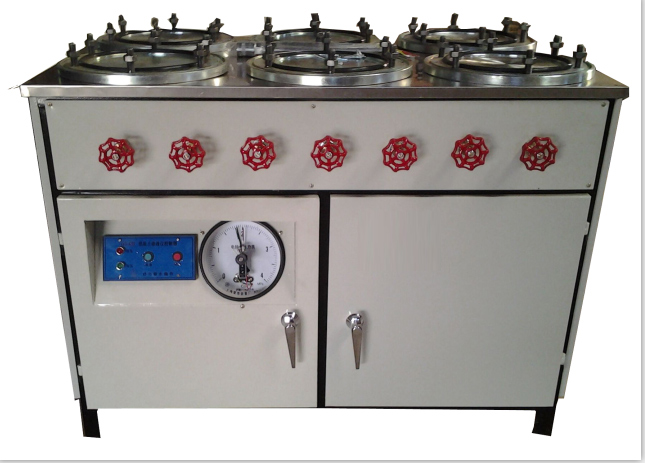

TBTCPT-4M Concrete Water Permeability Testing Machine Analog
TBTCPT-4M concrete water permeability apparatus is a gauge type instrument used to test the impermeability of concrete and to determine the impermeability grade.
Technical Parameters
| Model | TBTCPT-4M |
| Max. pressure | 4Mpa |
| Test specimen in one time | 6pcs |
| Mode | Constant pressure/constant pressure with increasing pressure |
| Power | 220V 50Hz 120W |
| Net weight | About 200kg |

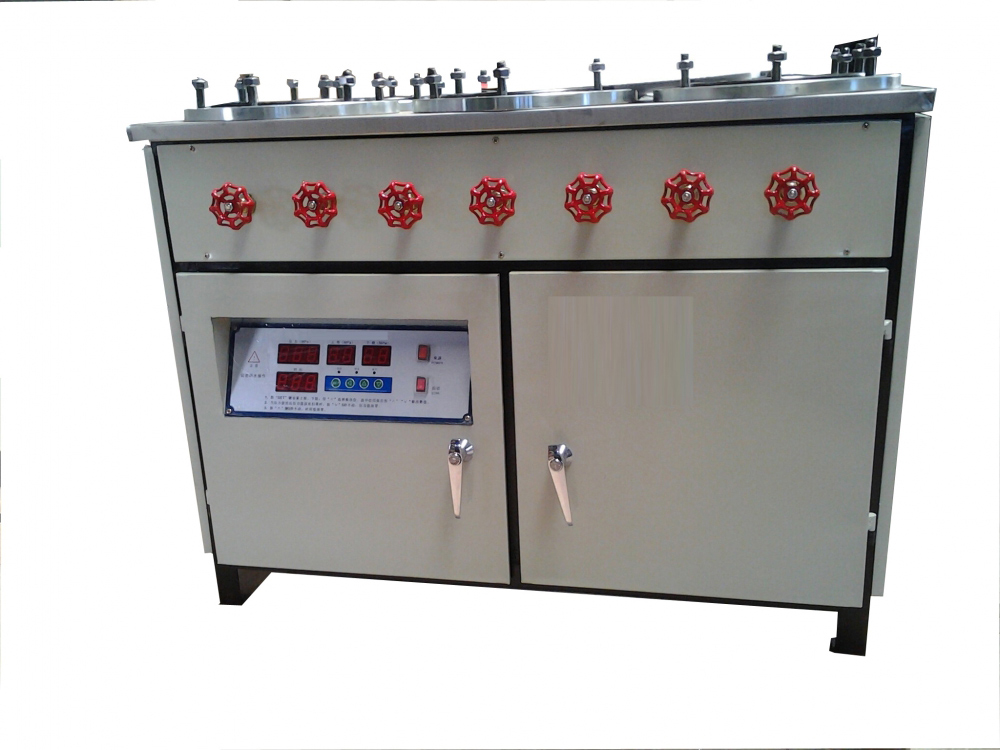

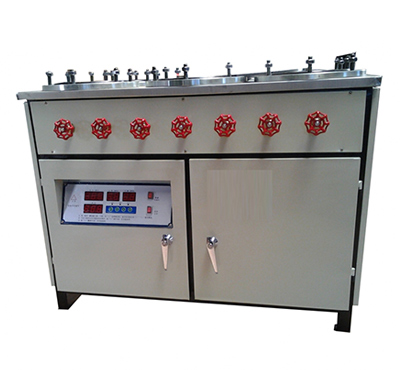

TBTCPT-4D Concrete Water Permeability Testing Machine Digital Display
TBTCPT-4D Concrete Water Permeability Testing Machine Digital Display is mainly used for the impermeability test of concrete and the determination of the impermeability grade. It can also be used to test and inspect building material permeability and quality, which is widely applied to production, construction, design, teaching and research departments.
Technical Parameters
| 1. Max. working pressure | 4MPa |
| 2. Working way | Automatic voltage regulator, manual voltage regulator |
| 3. Test specimen in one time | 6 pcs |
| 4. Specimen dimension | |
| Mold cavity upper diameter | φ174.8mm |
| Mold cavity lower diameter | φ185mm |
| Height | 153mm |
| 5. Flow of piston pump | 0.16L/min |
| 6. Motor power | 120W, 380V-50HZ |
| 7. Dimensions | 1150×800×950mm |
| 8. Weight | ≈350kg |
