Electrical density Gauge EDG | Material Testing Device

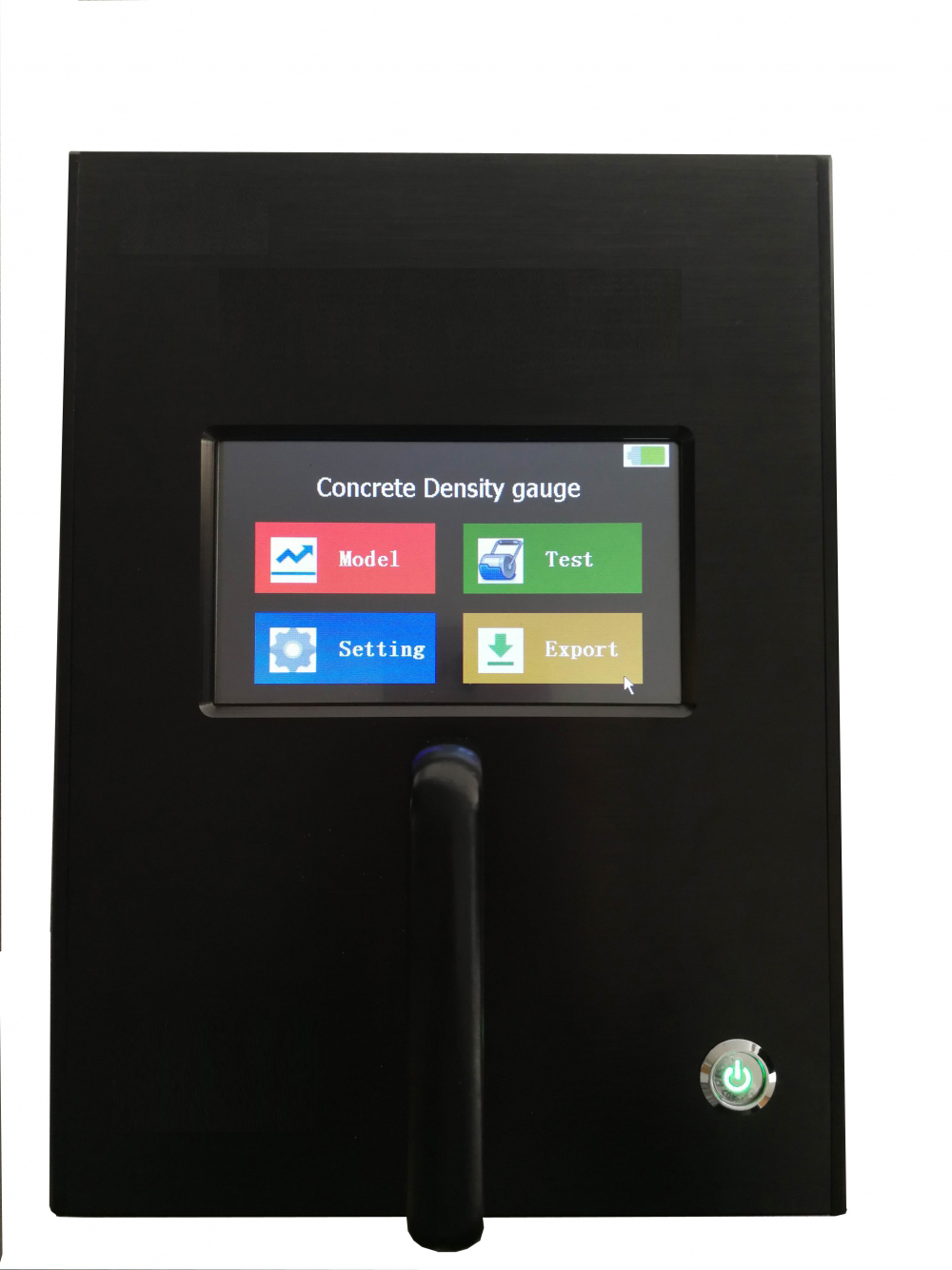

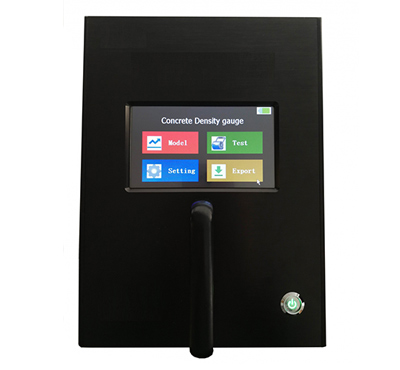

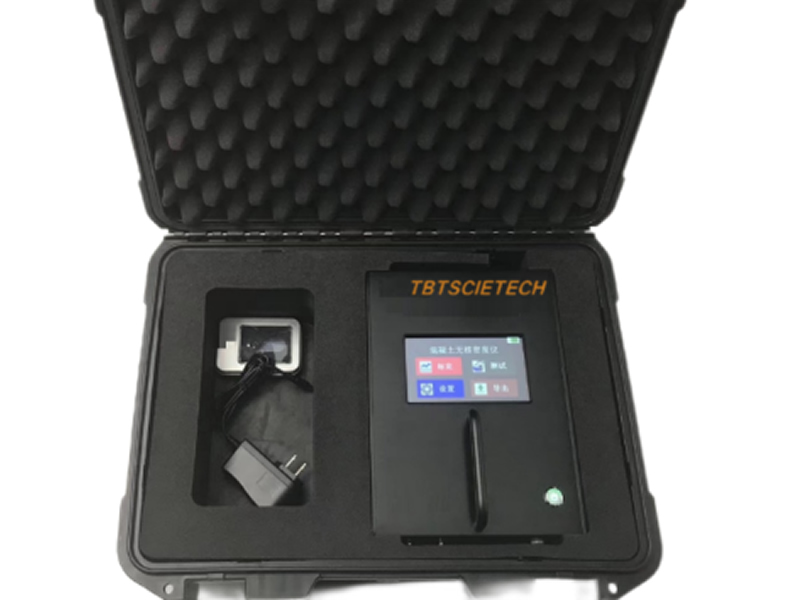

TBTEDG-1C Electrical density Gauge EDG

TBTEDG-1C electrical density gauge can quickly measure water stability, density and compaction degree of compacted concrete.

Technical Parameters

Operating temperature: 0~70°C
Measuring depth: 2~30cm
Temperature sensor range: 0~350°C
Display content: density/compaction
Measuring time: <3second
Measuring accuracy: 3%
Main unit dimension: around 256x189x75mm
Equipped with 5.1inch touch screen, 32G storage capacity which can store 1million testing data
Power supply: 12V 5000mAh Li-battery (for continuous operation approx. 20 hours)

Inquiry
