Metallographic Equipments

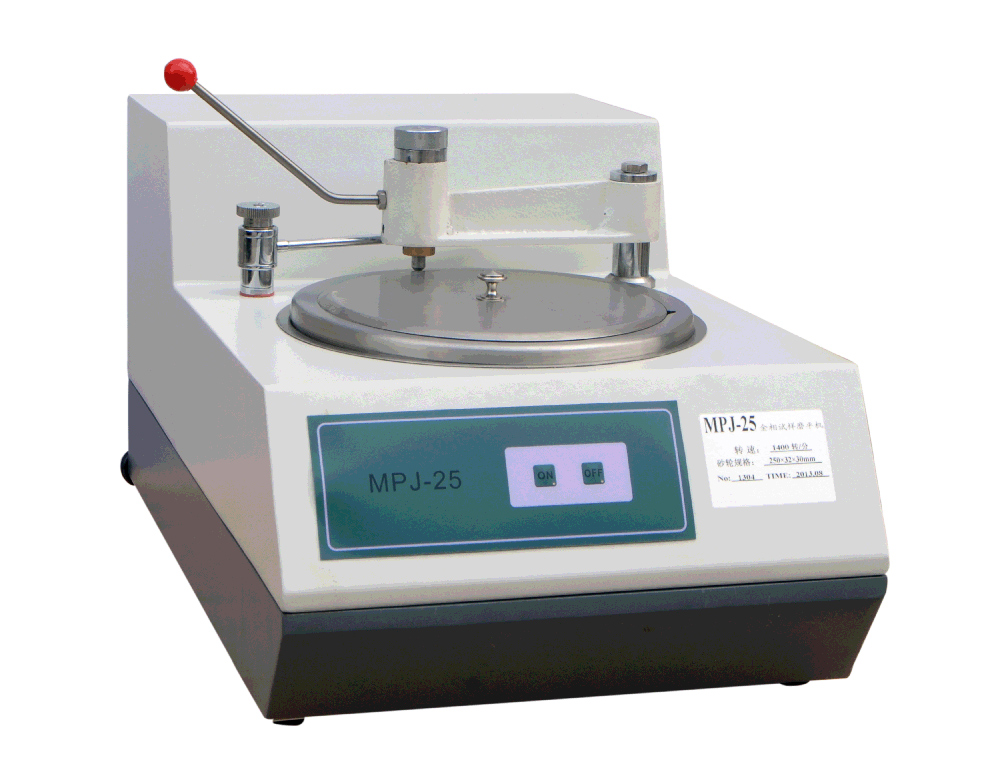

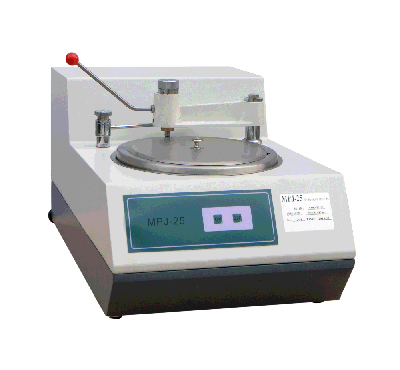

MPJ-25 Grinding Machine
Technical Parameters
| Rotating speed | 1400r/min |
| Abrasive wheel size | 250×30×32mm |
| Electromotor | AQ28024, 750W, 380V, 50Hz |
| Dimension | 730×420×360mm |

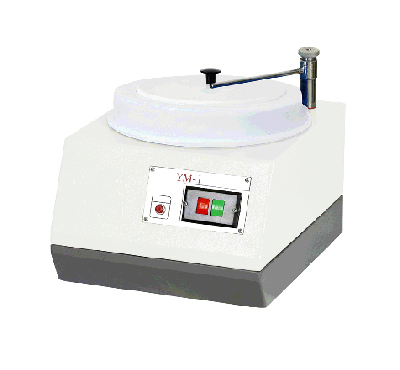

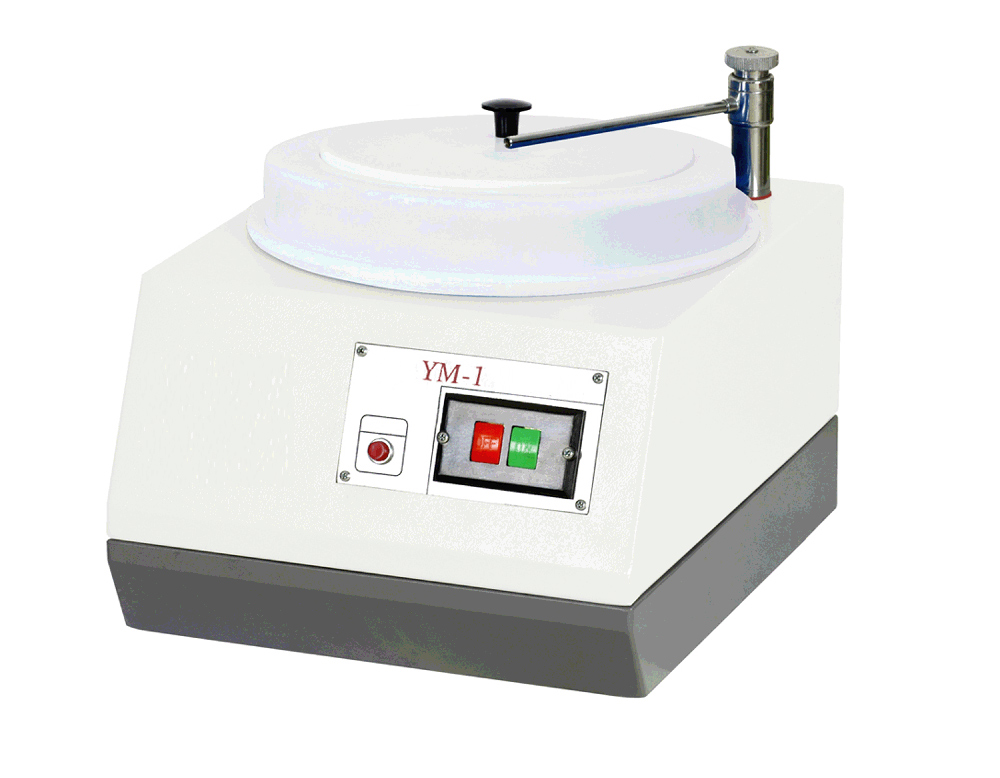

YM-1 Grinding Machine
YM-1 grinding machine is designed to meet the customer's individual needs of various types of materials.
Technical Parameters
| Grinding disc diameter | 230mm |
| Abrasive paper diameter | 230mm |
| Rotating speed | 900r/min |
| Electromotor | YS7118, 0.2kW, 380V, 50Hz |
| Dimension | 460×340×330mm |
| Weight | 22kg |

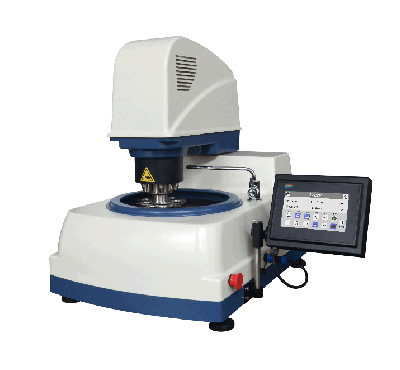

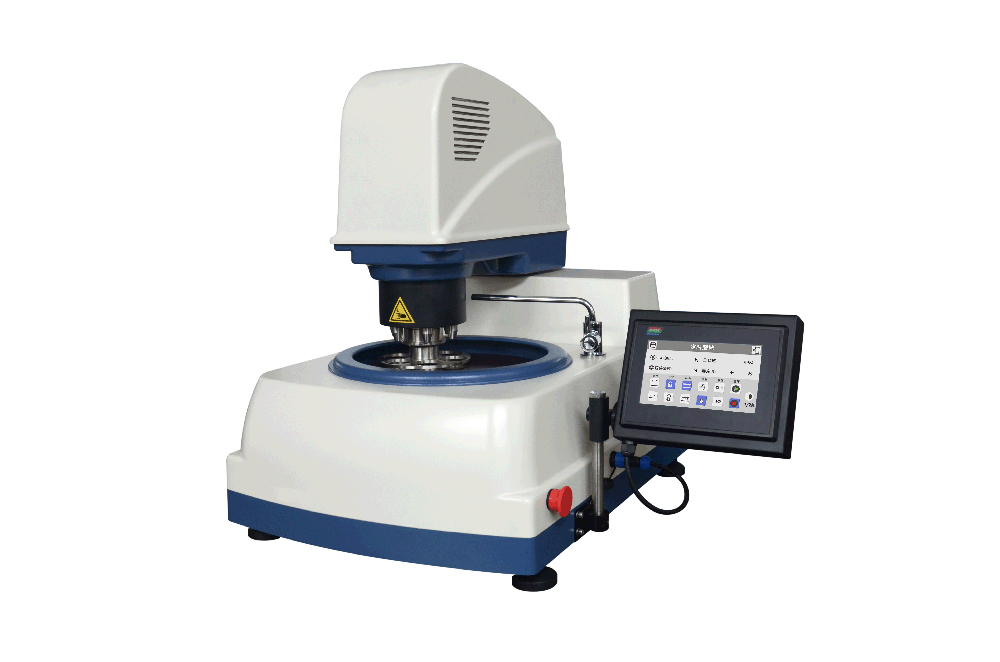

YMPZ-1-300 Grinding and Polishing Machine
YMPZ-1-300 grinding and polishing machine can effectively replace previously manual grinding and polishing processes, which greatly saves labor, improves processing quality, and elevates sample preparation efficiency.
Technical Parameters
| Disc diameter | 300mm |
| Abrasive paper diameter | 300mm |
| Disc speed | Stepless speed 100~1000r/min |
| Disc rotational direction | Clockwise or counterclockwise |
| Disc electromotor | DC brushless motor, 220V, 1.2kW |
| Head electromotor | Stepper motor, 200W |
| Head speed | Stepless speed 20~120r/min |
| Timing set | 0~99min |
| Sample Holding Qty. | 6pcs |
| Sample holder | Φ25mm, Φ30mm, Φ40mm |
| Specification | Custom specification is acceptable |
| Pressure method | Individual pressure or central pressure |
| Individual pressure force | 0~50N |
| Central pressure force | 0~160N |
| Control and display | 7 inch LCD touch screen |
| Power supply | 220V, 50Hz, 8A |
| Dimension | 800×800×760mm |
| Net weight | 96kg |
