Concrete Creep Testing Rig | Concrete Testing Equipment

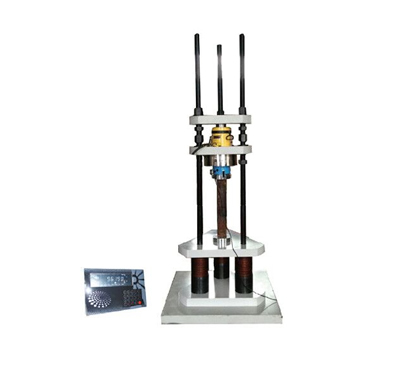

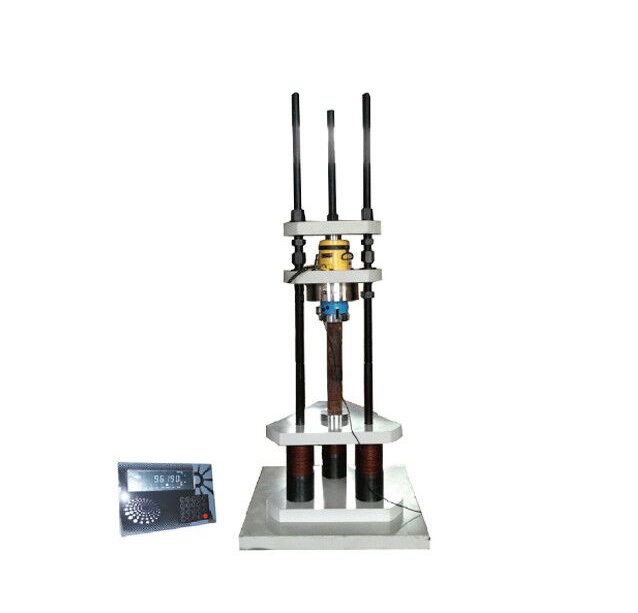

TBTXBJ-500KN / 1000KN Concrete Creep Testing Rig

Concrete creep testing machine is designed to determine concrete cylinder and cuboid parts under a constant pressure for a set period. It is also suitable for concrete creep deformation test under single-direction pressure at constant temperature in a humid-free environment.

Technical Parameters

Capacity	500kN/1000kN
Measurement range	0-500kN/0-1000kN
Relative reading error	±1%
Spring height	300mm
Spring compression stroke	52mm (or customized)
Max. distance between upper platen and lower platen (Compression space)	1500mm (or customized)
Power supply	220V, 50Hz
Overall dimension (without packing)	750×750×2800mm
Net weight	About 800kg

Note: all platens are produced by CNC machine with surface treatment. All platens and columns are made of No. 45 steel.
