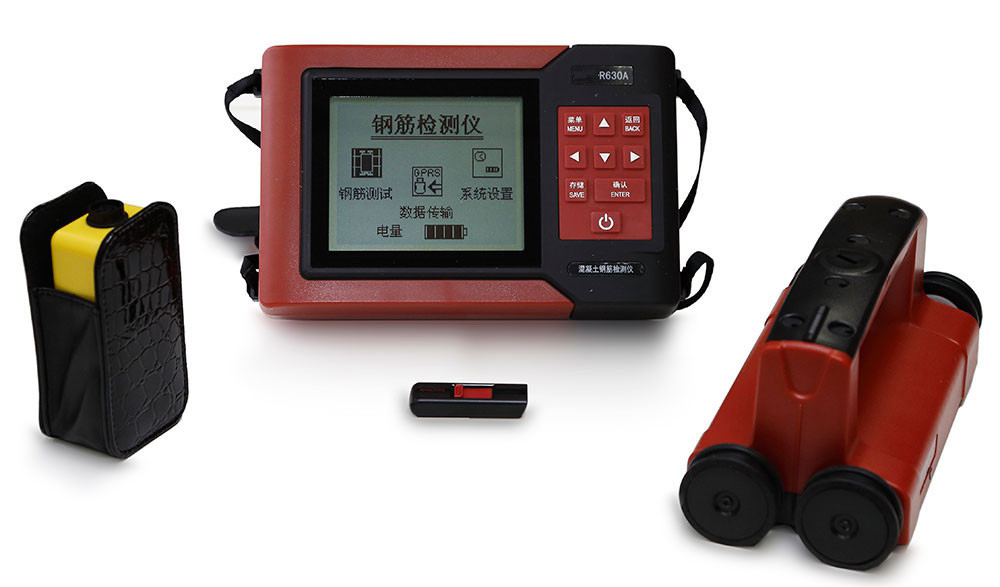

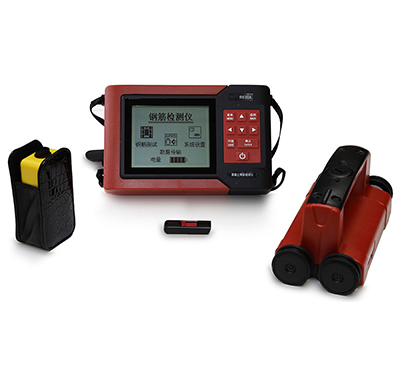

R630A rebar locator is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation, and distribution of rebar by using an electromagnetic induction method. The rebar locator also can be used to test the distribution of magnetic and conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.
|Measuring range||Ф6mm~Ф50mm||Max. allowed error||±1 rebar standard|
|Protective layer thickness range (mm)||First range||Second range||Data transmission||GPRS wireless transmission, thumb drive storage available|
|3~98||3~196||Power||Built-in chargeable lithium battery|
|Max. allowed error for protective layer thickness||±1mm||3~56||3~79||Battery time||>38hrs|

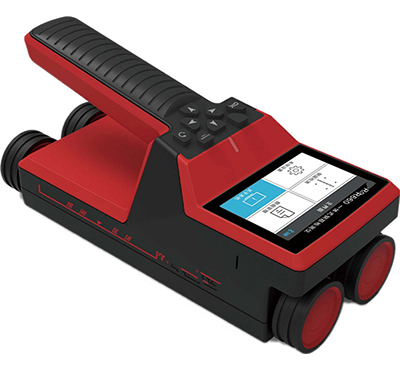

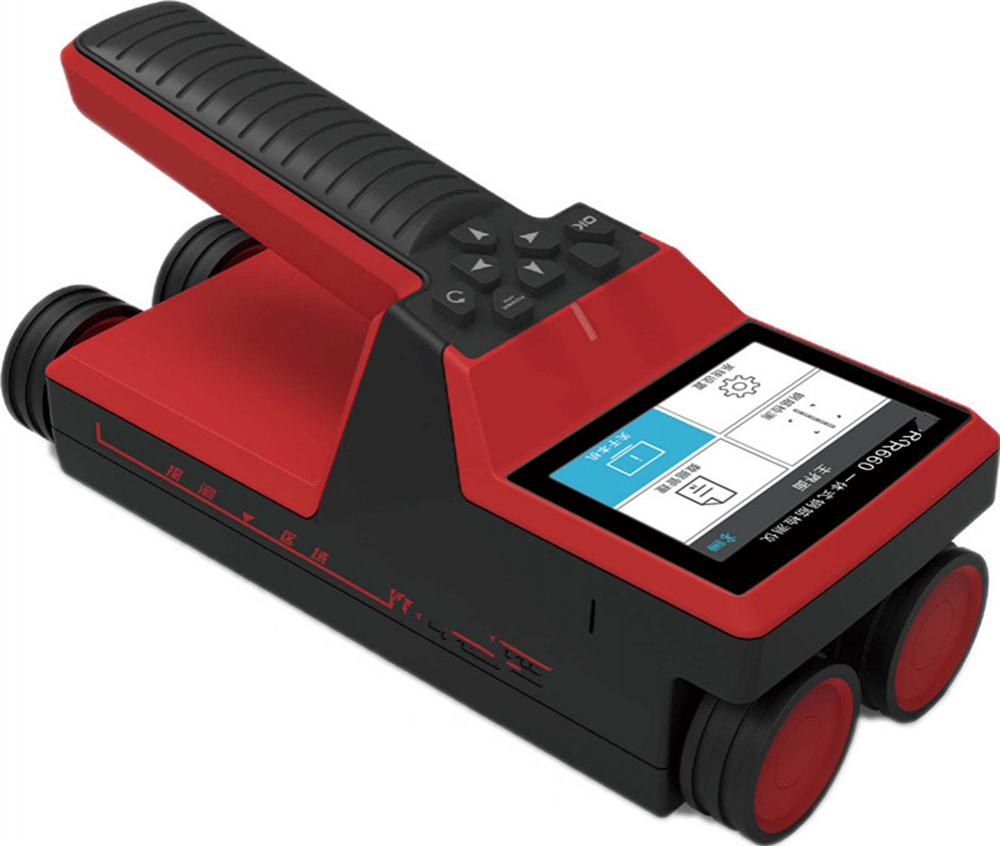

R660 rebar locator is designed to determine the location, distribution, direction, and diameter of rebar and thickness of concrete, covering almost all concrete structure projects such as bridges, tunnels, walls, etc.
|Thickness measuring range||Small range: 2~100mm|
|Large range: 2~200mm|
|Power supply||Built-in lithium battery|
|Continuous operating time||≥10hours|
|Display screen||320x240 half-transparent and half-reflecting color display screen|
|Storage capacity||Up to 3,584 objects|
|Operating mode||Film button|
|Communication interface||USB transmission interface and Bluetooth transmission interface|

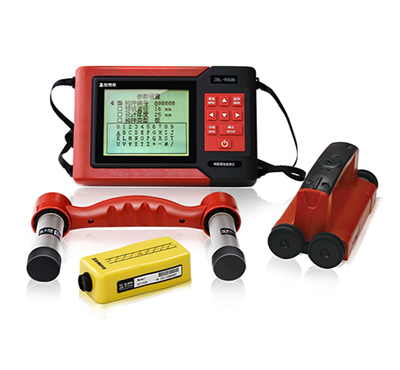

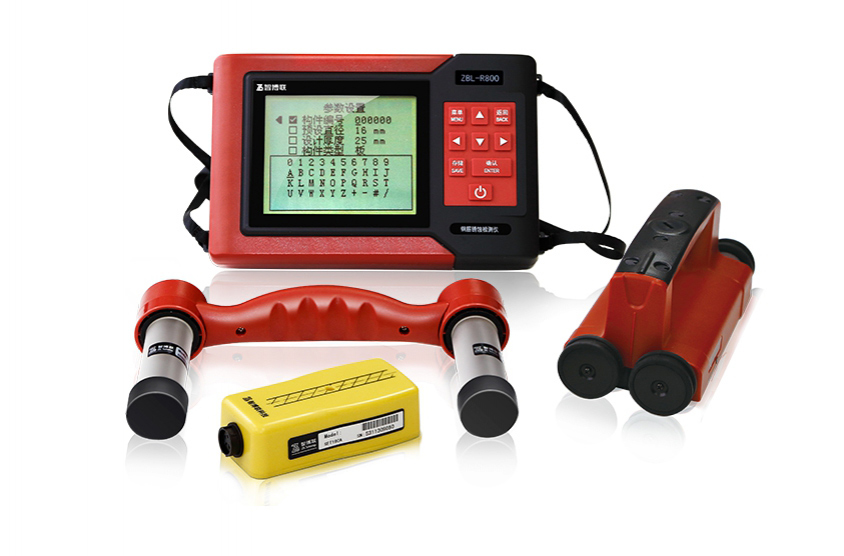

R800 rebar locator is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layer, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of rebar.
|Measuring range of rebar diameter||Ø6mm~50mm||Corrosion detection method||Single electrode||Double electrode|
|Rebar cover meter |
|First range||Second range||Measuring range||±1000mV||0~1000 mV|
|Max. allowed error |
|±1mm||6~56||3~77||Tested points interval X||0~100 adjustable||20 fixed|
|±2mm||58~69||80~118||Tested points interval Y||0~100 adjustable||0~100 adjustable|
|±4mm||70~98||120~196||Power||Built-in chargeable lithium battery|
|Max. allowed error for diameter measurement||±1 rebar standard level||Battery time||>38hours|
|USB port||Thumb drive storage available||Weight||0.9kg|
