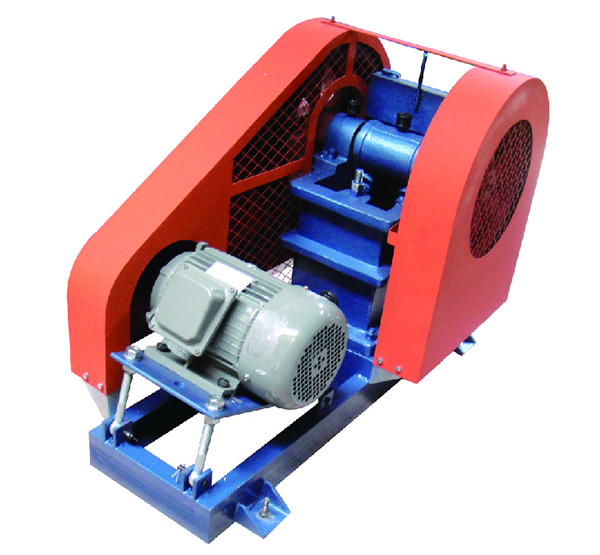

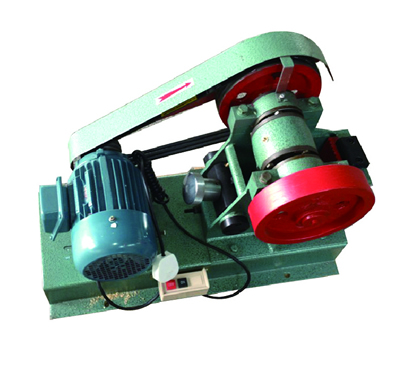

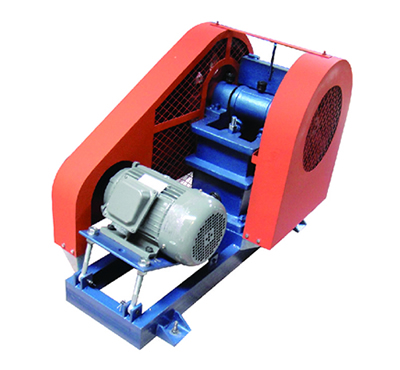

PE60x100, PE 100x150, PE 125x150 Jaw Crushers

PE series jaw crushers are widely used to crush cement clinker, ore or rock specimens in laboratories. Jaw plates are made of Manganese steels for wear resistance.

If feed particle size is larger than 60mm, please choose 100x150 jaw crushers.

If feed particle size is smaller than 60mm, please choose 125x100 jaw crushers.

Model 150*200, 250*400 are available

Technical Parameters
Model PE 60x100 PE 100x150 PE 125x150
Inlet size 100x60mm 100×150mm 125x150mm
Feed particle size ≤45mm ≤80mm 100mm
Final particle size 3~15mm 5mm 6mm
Capacity 45~550kg/h 0.5~1.5T/h 0.5~3T/h
Motor power 1.5kW 3kW 4kW
Dimensions 1050x430x820mm 1050×500×700mm 1200×550×900mm
Weight Around 225kg 260kg 410kg
PE 60x100, 100x150, 125x150 Jaw Crushers
PE 60x100, 100x150, 125x150 Jaw Crushers PE 60x100, 100x150, 125x150 Jaw Crushers
