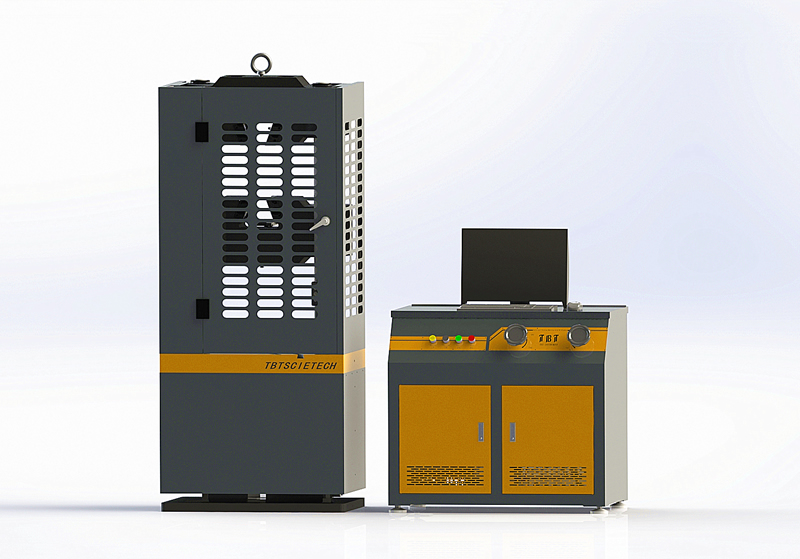

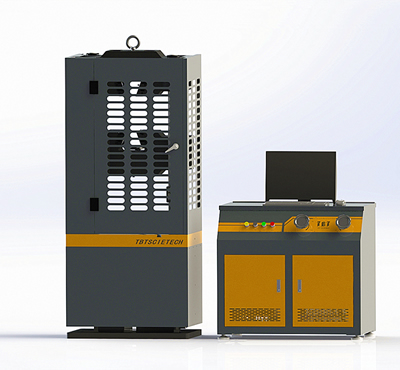

TBTUTM-A Series of Universal testing machine

Model:TBTUTM-100A/300A/600A/1000A

The testing machine is mainly designed for the tensile test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

Technical Parameters

Model	TBTUTM-100A	TBTUTM-300A	TBTUTM-600A	TBTUTM-1000A
Max. capacity（KN)	100	300	600	1000
Range	4%-100%F.S.(full range, without gear）
Reading accuracy	Grade 1
Error	±1%
Resolution (F.S.)	1/200000F.S.
Column Number	4	4	4	6
Width between two column	345	430	515	510
Max tensile space（mm)	500	600	600	600
Max compression space(mm)	500	600	600	600
Bending test Distance between two points(mm)	100-270	100-350	100-400	100-400
Round specimen clamp diameter(mm)	Ø6-Ø22	Ø10-Ø32	Ø13-Ø40	Ø20-Ø40
Flat specimen clamp thickness (mm)	0-15	0-15	0-15	0-40
Stroke (mm)	150		200
Pistons rise fastest speed(mm/min）	100	80
Beam rising speed (mm/min)	310	250	250	310
Displacement reading relative error	±1%
Deformation reading relative error	±1%
Motor capacity (KW)	2		2.5
Main unit dimension (mm)	665×490×1600	740×460×1900	850×560×2000	960×620×2100
Oil source cabinet dimension(mm)	1000×600×910
Main unit net weight (kg)	600	1200	1750	2200
Oil source cabinet net weight（kg)	250
