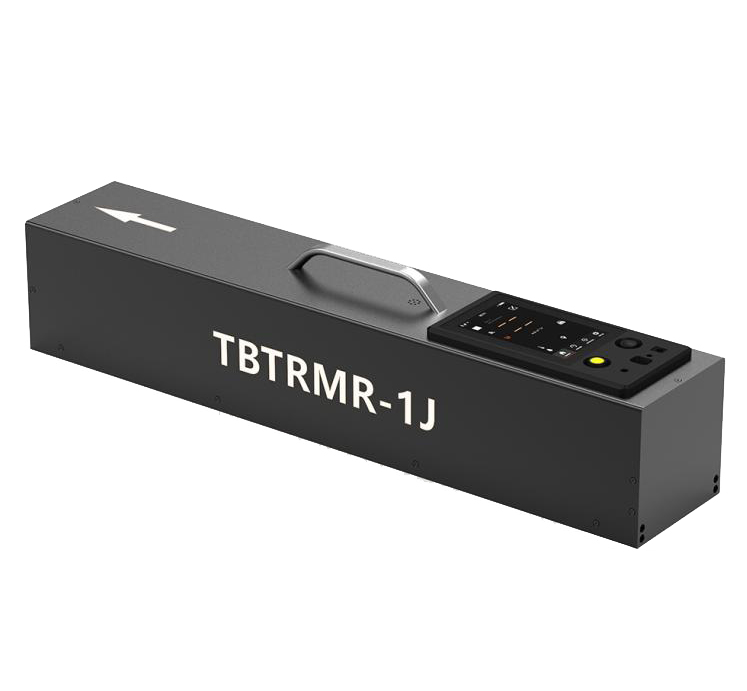

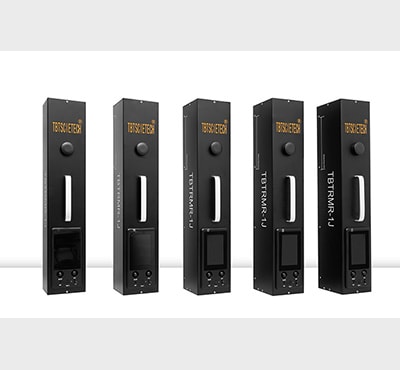

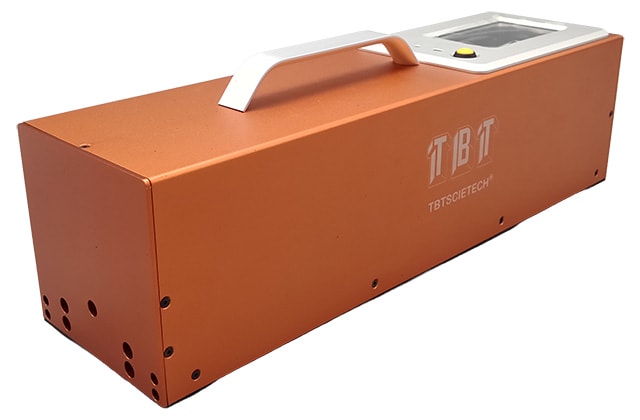

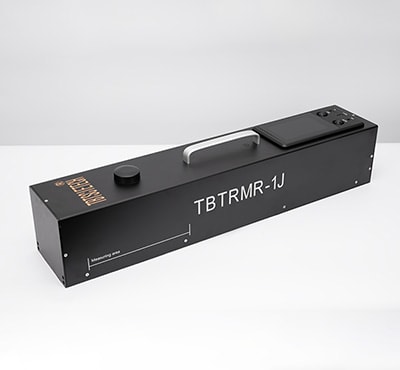

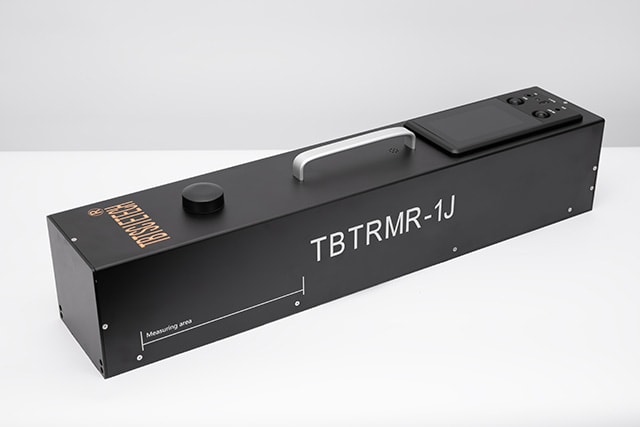

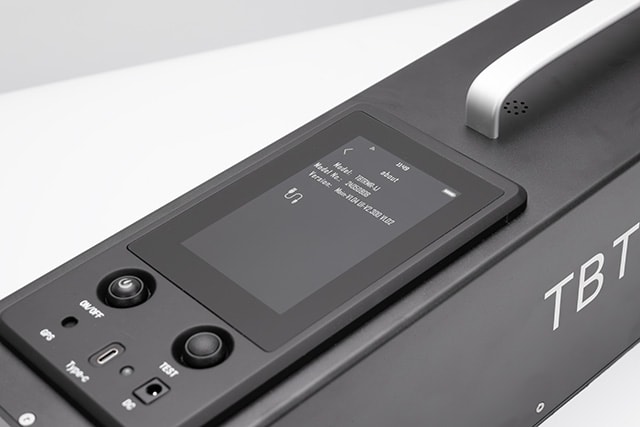

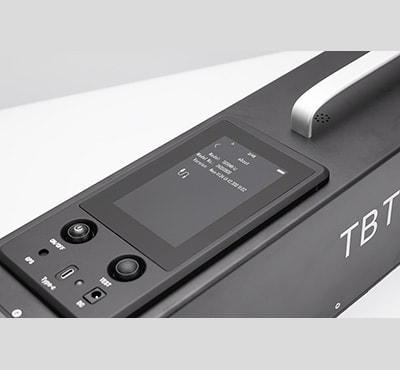

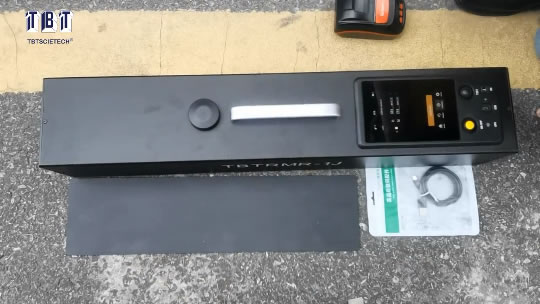

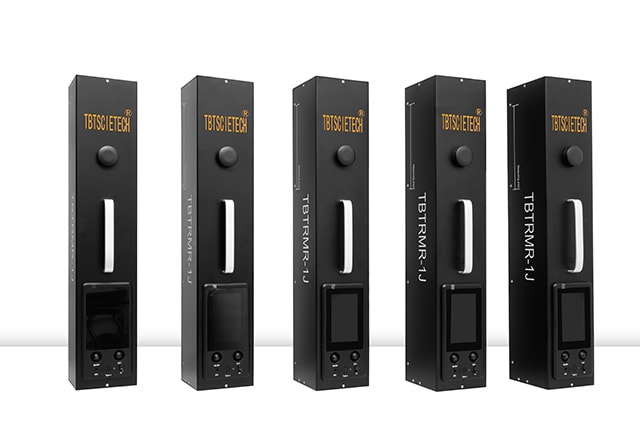

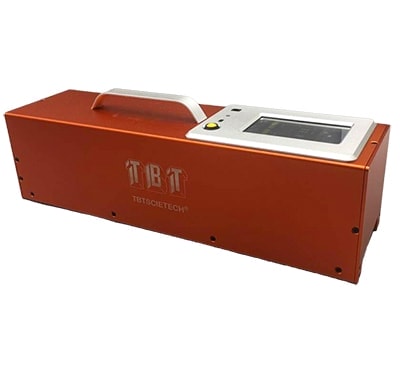

TBTRMR-1J Road Marking Retroreflectometer is a portable on-site measuring instrument that is used for measuring the retroreflection characteristic of road marking, the weight is 5kg.
The purpose of this road marking instrument is to simulate the brightness of road markings that can be seen by drivers under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night in daytime, namely, RL & QD value.
|Measurement items||Retroreflective coefficient ( mcd.m-2.lx-1 )|
|Angle of incidence||88.76°, Complementary angle is 1.24°|
|Light source color temperature||2856±50K|
|Error of repeatable measurement||≤2%|
|Continuous working time of battery||＞30h|
|Data storage space||More than 100,000 data|
|Built-in battery capacity:||12V / 5.2Ah|
|Ambient humidity||＜98%, no frost|
|Measurement||Around 700mm x 140mm x 140mm|

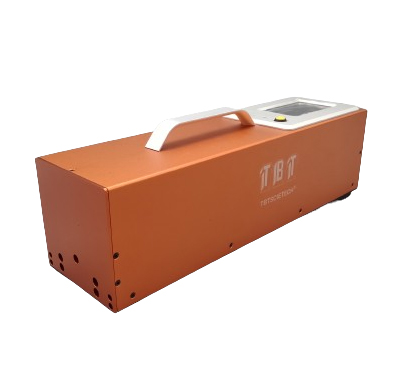

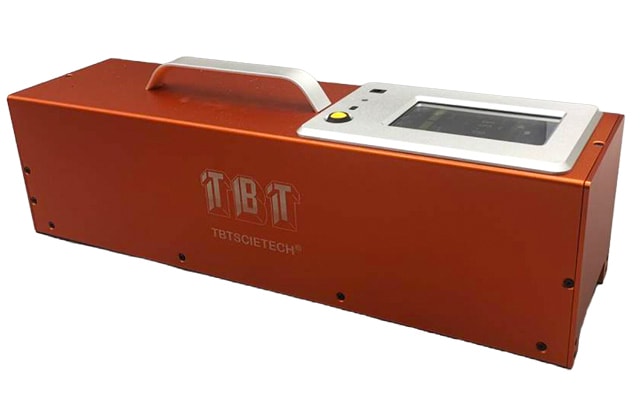

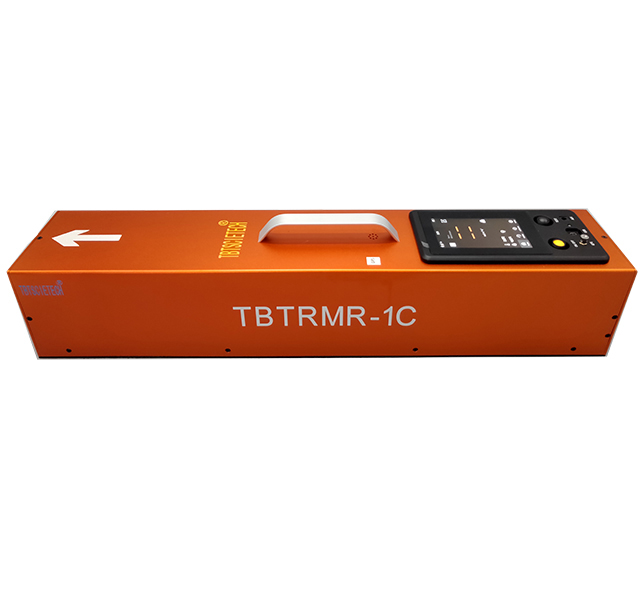

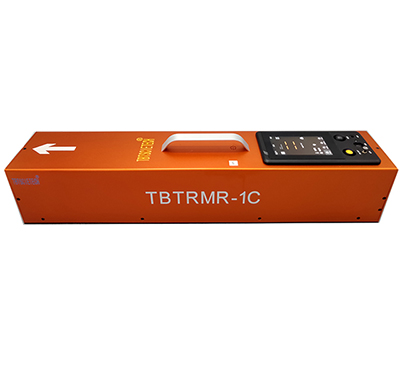

TBTRMR-1 marking retroreflectometer is a portable on-site measuring instrument, used for measuring the retroreflection characteristic of road marking.TBTRMR-1 instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of motor vehicles at night, and the measured parameter is the coefficient of retrorefection brightness at night, namely, RL value.

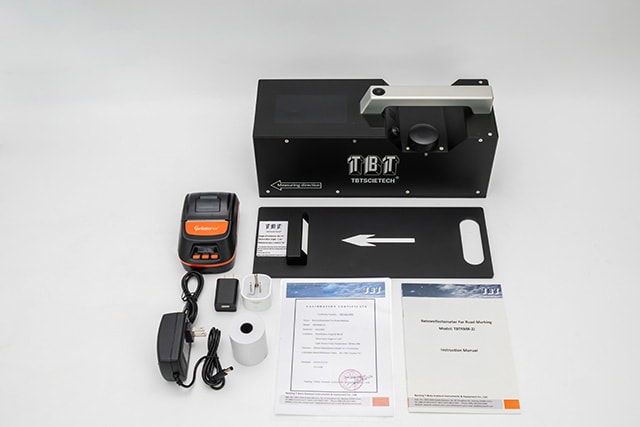

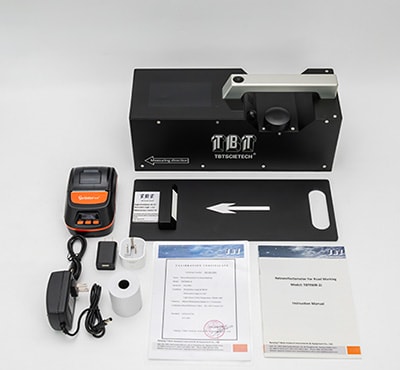

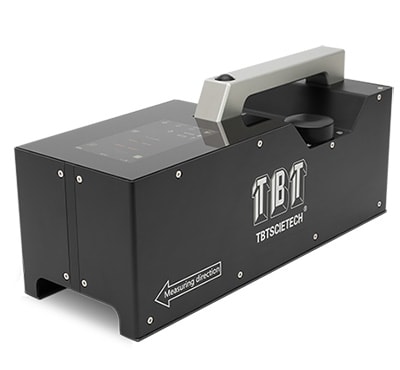

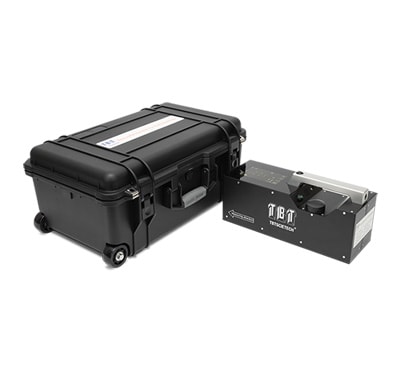

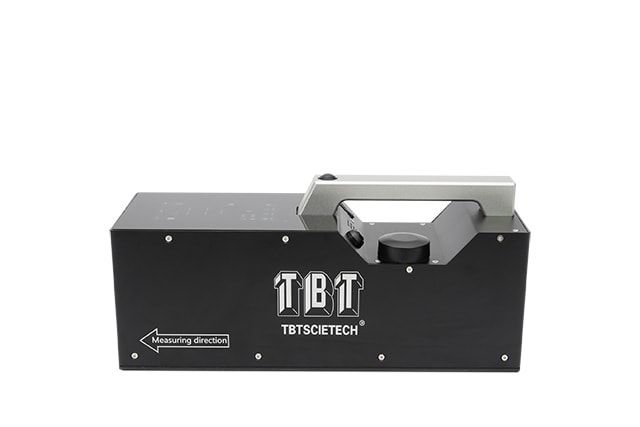

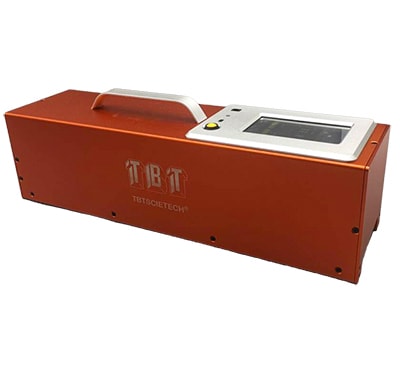

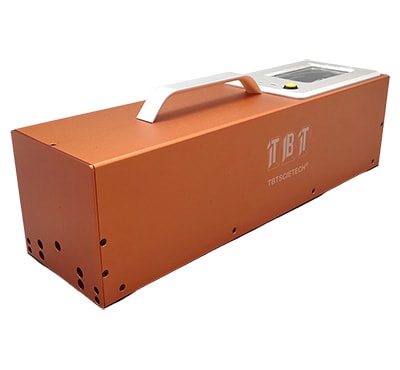

TBTRMR-2J road marking retroreflectometer is an open-optical-path designed small size portable on-site measuring instrument, the weight is 3.5kg.
Main use is to measure the in-night brightness of road marking made of retroreflective material simulating under illumination from the headlights of vehicles driving on road, i.e, the in-night brightness observed by the driver in vehicle. The measured parameter is the nighttime retroreflective brightness coefficient, namely RL value.
This instrument test result accurate and repeatable, simple to operate, can be used in laboratory or field.
Conforms to Standards:
GB/T 26377-2010, GB/T16311-2009, JJG 059-2004, JTG F80-1-2017
Open-optical-path design. Suitable for measuring under 3 conditions:
dry RL, Wet and continuous Rainfall .
Fast measurement (measuring retroreflective brightness coefficient in 2 seconds).
Automatic calculating the average of results of multiple measurements.
Calibration system in line with international standards, only calibrate white color.
Long standby and fast recharging.
5-inch daylight screen.
Data storage more than 100,000 pcs.
GPS accurate positioning.
USB data interface, test report is exported to computer as database.
Measurement data real-time voice broadcast.
The Bluetooth printer prints the test results on spot.
Touching keyboard to edit.
Display temperature and humidity real time.
|Measurement items:||retroreflective coefficient ( mcd.m-2.lx-1 )|
|Angle of incidence:||88.76°, Complementary angle is 1.24°|
|Light source color temperature:||2856±50K|
|Measuring aperture area:||200mm x 95mm|
|Error of repeatable measurement:||2%|
|Continuous working time of battery:||＞30h|
|Data storage space:||8GB|
|Built-in battery capacity:||12V, 5.2Ah|
|Working temperature & humidity:||-15℃～60℃, ＜98%, no frost|
|Size:||360mm x 135mm x 125mm|

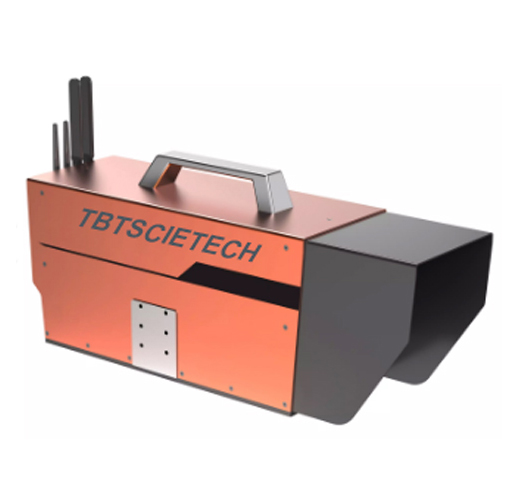

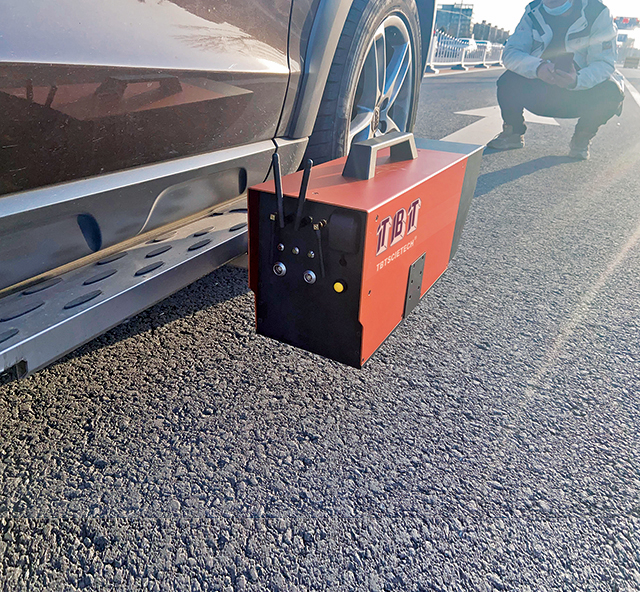

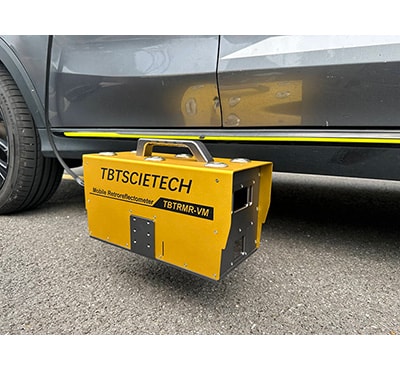

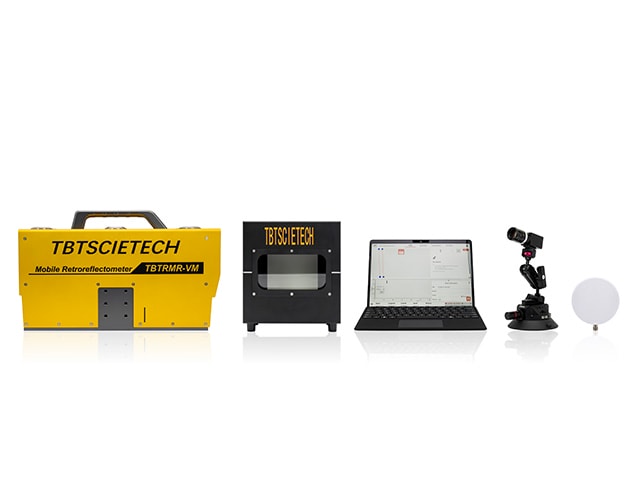

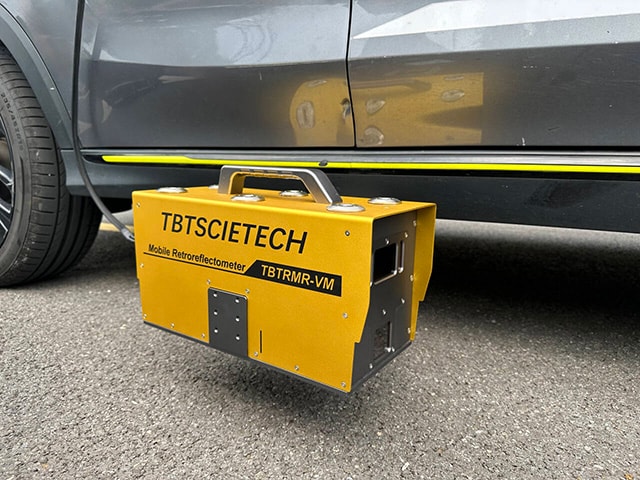

Road marking’s visibility, the retroreflectivity is correlated with roadway safety, it directly presented as the night visibility (RL) of pavement markings. The TBTRMR-VM vehicle-mounted marking retroreflectometer allows a constant and efficient assessment of the state of road markings while maintaining traffic flow. The detection accuracy is consistent with the handheld retroreflective readings.
The major components of the system are the host, computer processing system, and DMI (distance measuring wheel). The host is consist of optical measurement system, control system, imaging driver assistance system, height / tilt compensation system and Beidou positioning antenna.
|Simulated observation distance||30m|
|Measurement range length||500mm|
|Light source||Infrared laser|
|Measurement Rate||300 pictures/s of a line|
|Entrance & Illumination angle||88.76±0.01°（ASTM E1710）|
|Observation angle||1.05±0.01°（ASTM E1710）|
|RL measuring range||0~2000 mcd/（m2·lx）|
|Light source life||＞10000 hours|
|Positioning system||BDS / GPS|
|Host unit size||570 x 164 x 209(mm)|
|Distance measurement error||1‰|
|Support vehicle speed||0-120km/h|
|Data export format||database|
|Power supply||Built-in lithium battery|

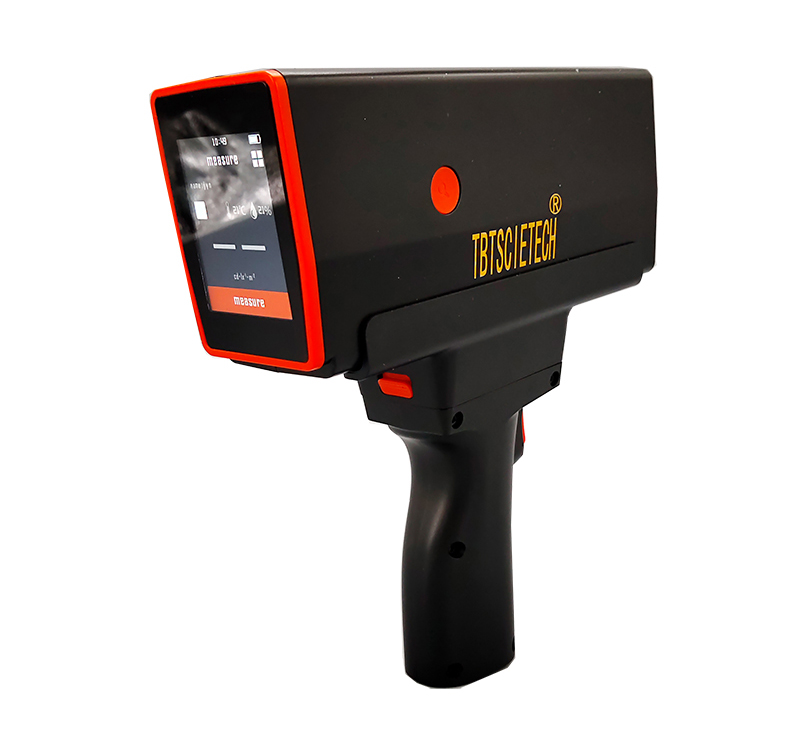

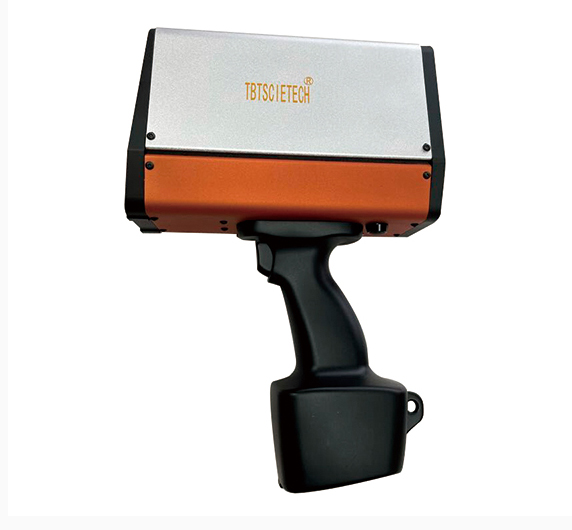

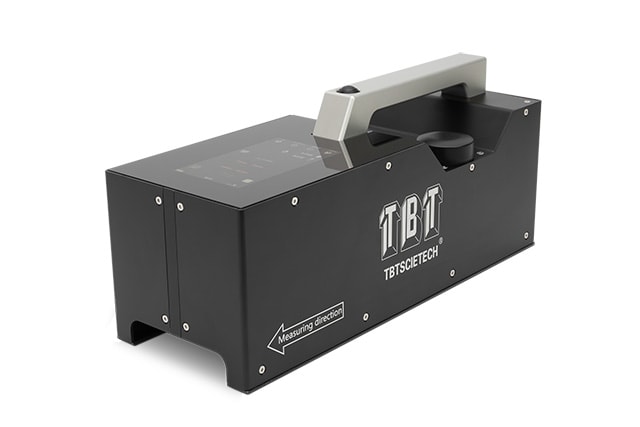

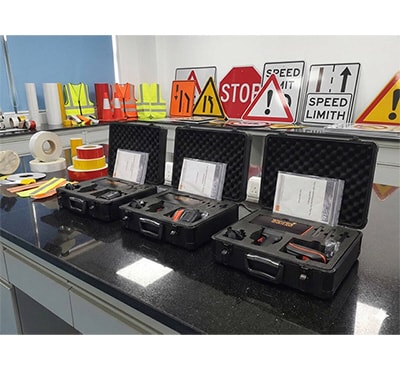

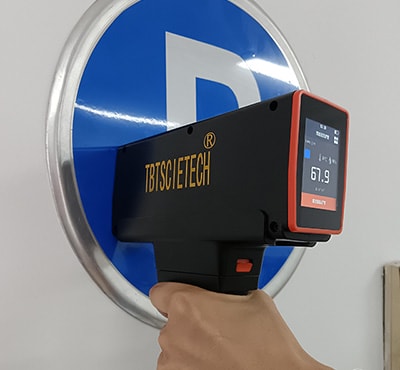

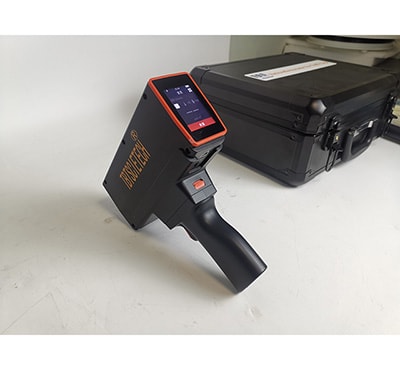

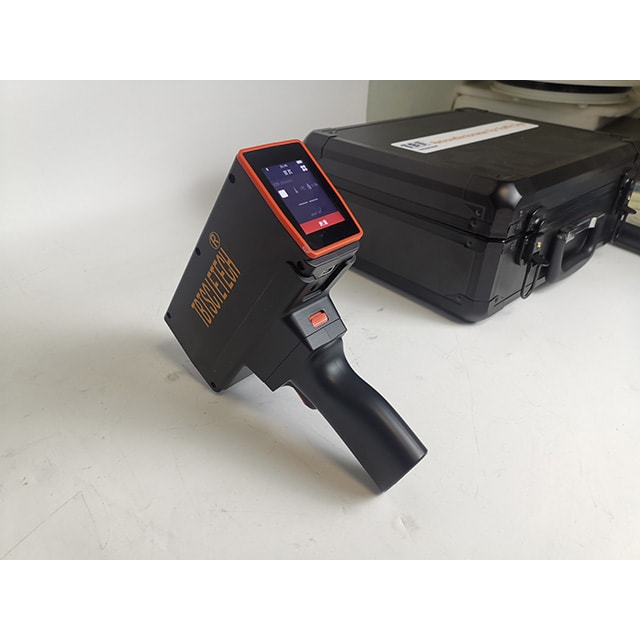

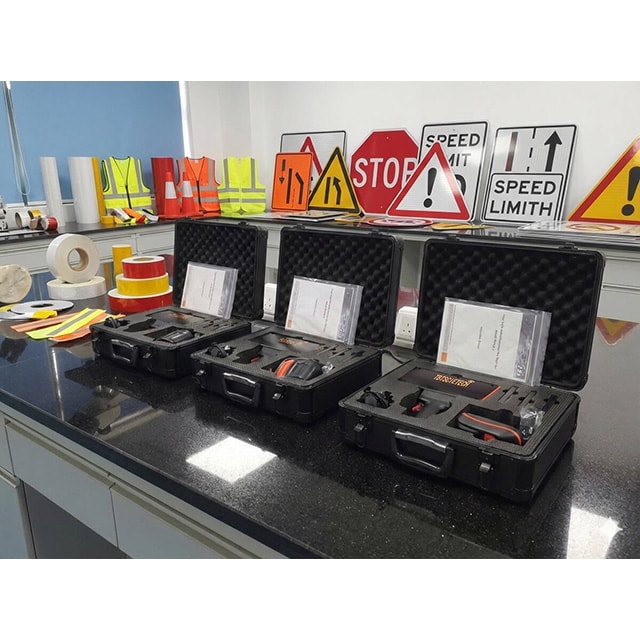

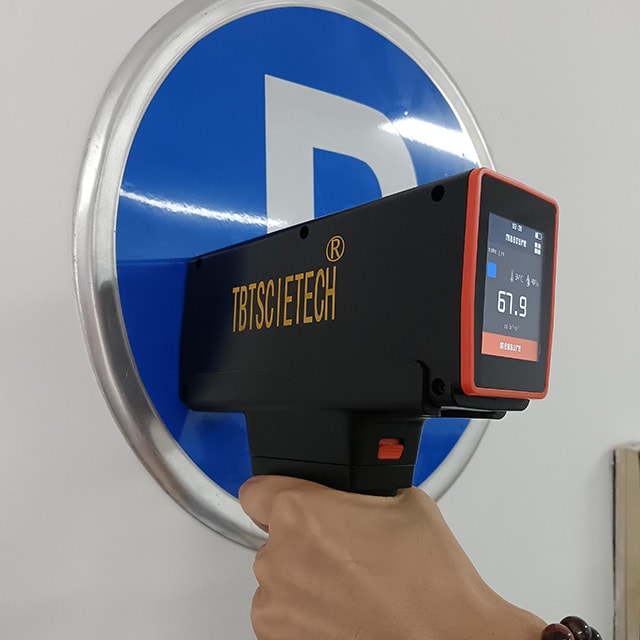

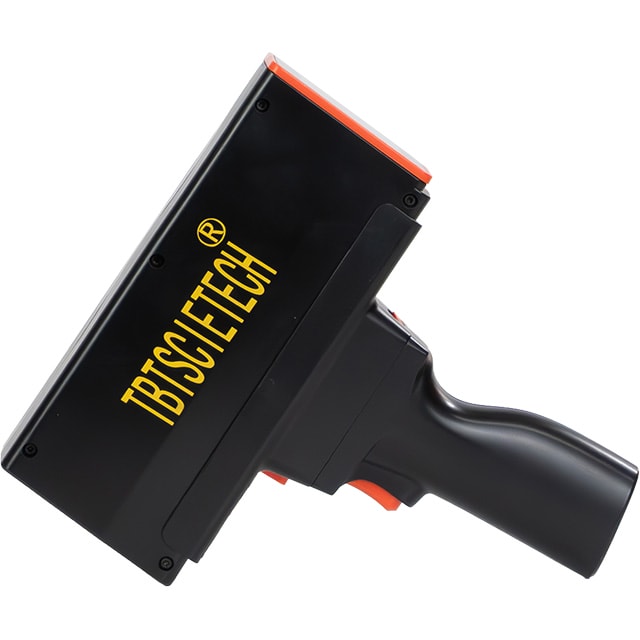

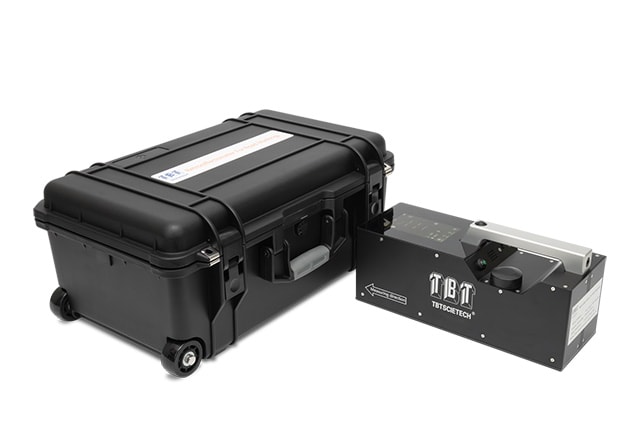

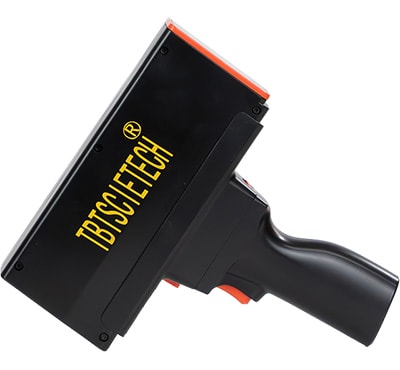

TBTTSR-1 retroreflectometer is designed for retroreflectivity measurements of retroreflective materials, including road traffic signs, high-visibility clothing, licence plates and reflective tapes.

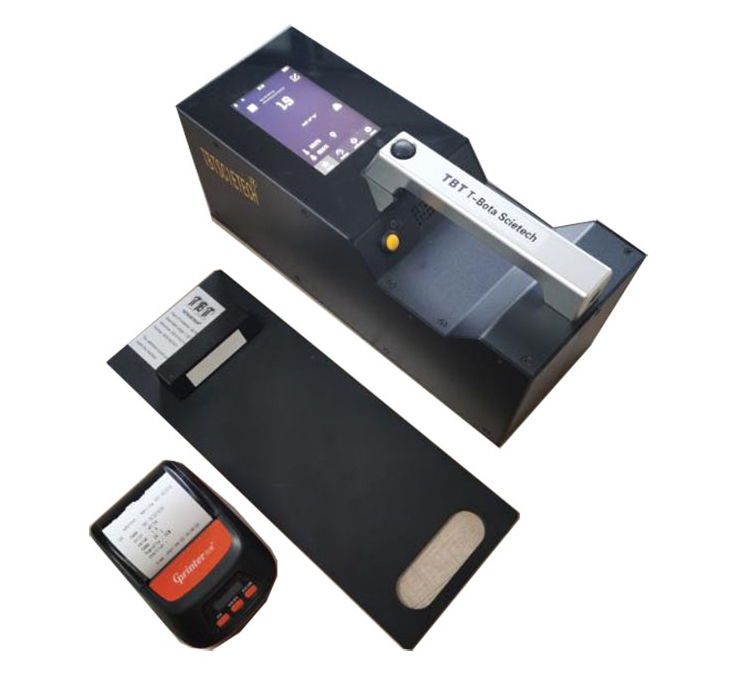

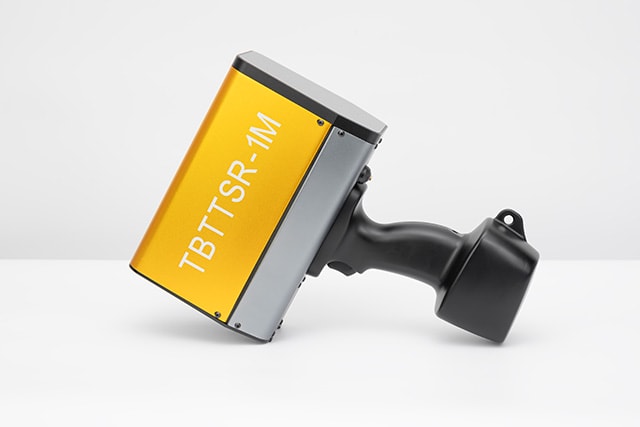

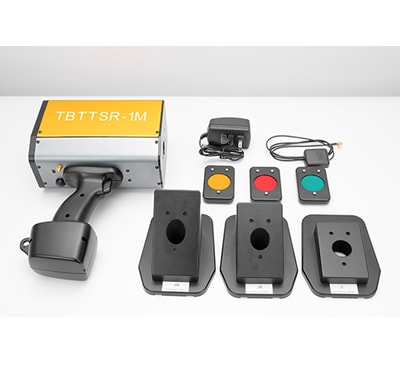

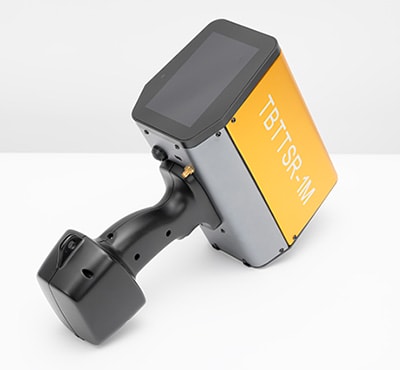

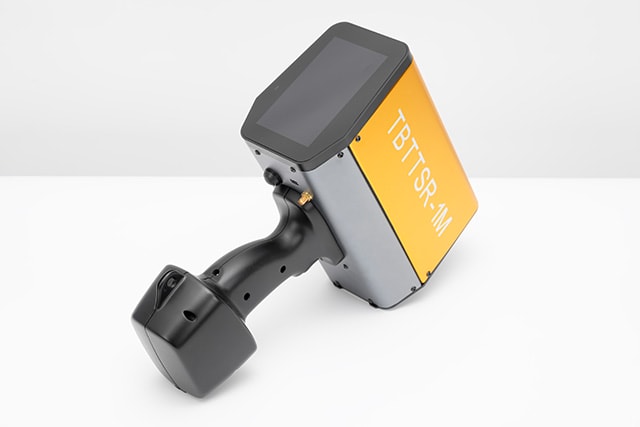

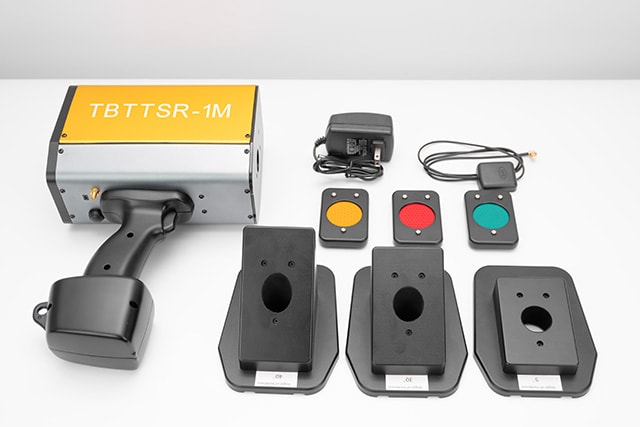

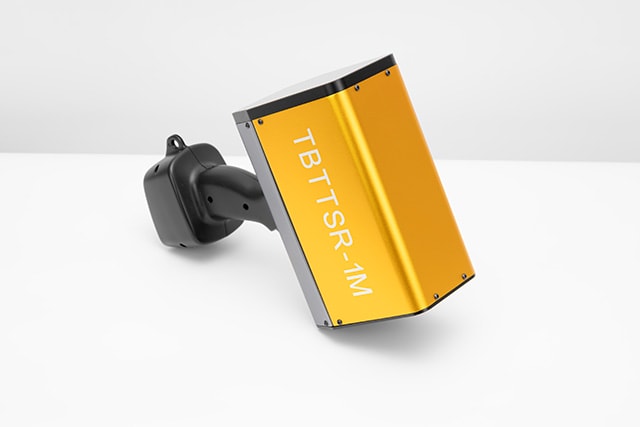

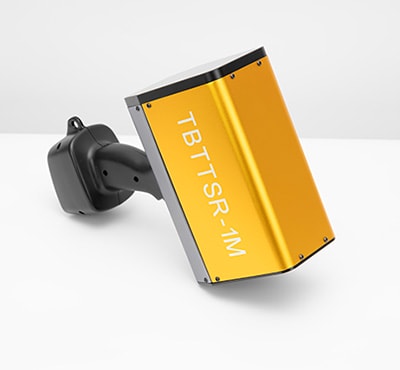

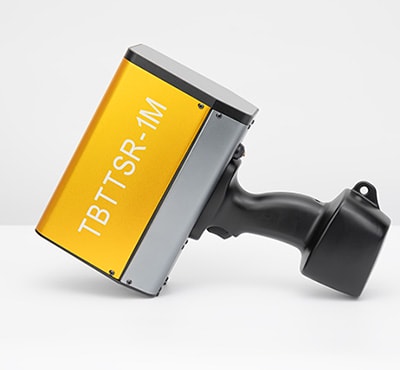

TBTTSR-1M is a portable multi-angle detector for measuring night visible photometric properties (coefficient of retroreflection RA and R’) of retroreflective materials on spot. It is a convenient instrument used to test traffic signs for highway, railway, aviation or reflective markings on trucks, to ensure retroreflective markings meet the requirements of relevant standards.
The instrument is designed conforming to China's national standard GB / T 18833-2012, GB / T 26377-2010-2012 , GB / T 21861-2014 and JJG 059-2004".
