Flaw Detectors

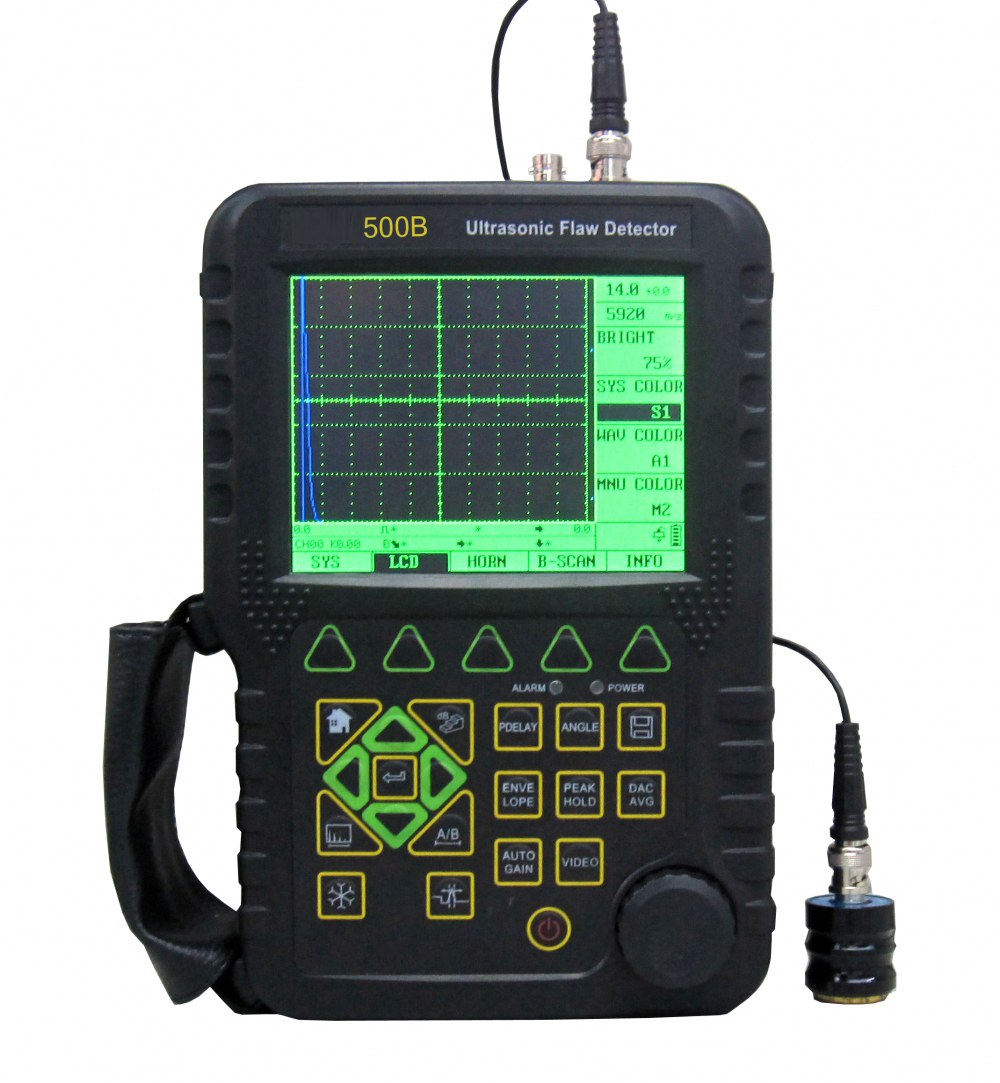

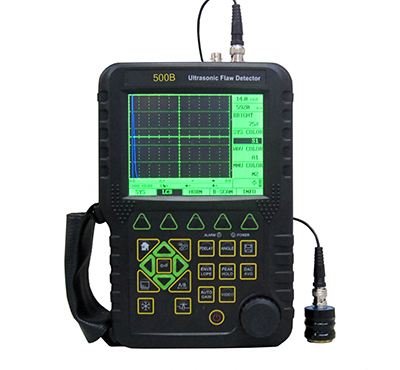

TBT-UTT550B portable ultrasonic flaw detector has the measuring range of 0-6000mm which can meet the defect detection needs of manufacturer and steel requirements of metallurgical industry, metal processing industry, and chemical industry. The low-power consumption design and large-capacity lithium battery guarantee that the ultrasonic flaw detector can be used for a few months.
- Measuring range: 0~9999mm at steel velocity
- Bandwidth: 0.2 to 15MHz (automatic matching according to the probe frequency)
- Material velocity: 1000-15000m/s
- Dynamic range: ≥36dB
- Vertical linear error: ≤2.0%
- Horizontal linear error: ≤0.1%
- Resolution: >40dB (5P14)
- Sensitivity leavings: 62dB (deep flat-bottom hole 200mm Ф2)
- Rejection: 0~80% linear without affecting the linearity and gain
- Noise level: ≤8%
- Probe type: straight beam probe, angle beam probe, dual element probe, through-transmit probe
- Gates: wave-getting gate, wave-losing gate, single gate reading, dual gate reading
- Alarm: beep alarm and LED light alarm
- Power supply: DC 9V
- Working time: ＞10 hours
- Overall dimension: 263×170×61mm
- Operating temperature: -10℃~50℃
- Relative humidity: 20~95%
- Pulse energy: 200V, 300V, 400V, 500V selectable (suitable for various probes)
- Pulse width: 30~510ns with continuous adjustments to different frequency probes
- Probe damping: 200Ω, 500Ω selectable for meeting different requirements of resolution and sensitivity
- Sampling: 10 digits AD converter at the sampling speed of 400MHz, waveform of highly fidelity
- Rectification: positive half wave, negative half wave, full wave, RF
- Gate reading: optional for single gate and double gate reading mode; peak readings within the gate
- Gain: 0~110dB adjustable in selectable steps of 0.1 dB, 1 dB, 2dB and 6dB
- Probe connections: BNC or LEMO
- Note: all above indicators are got with 2.5 MHz probe and full wave detecting method.

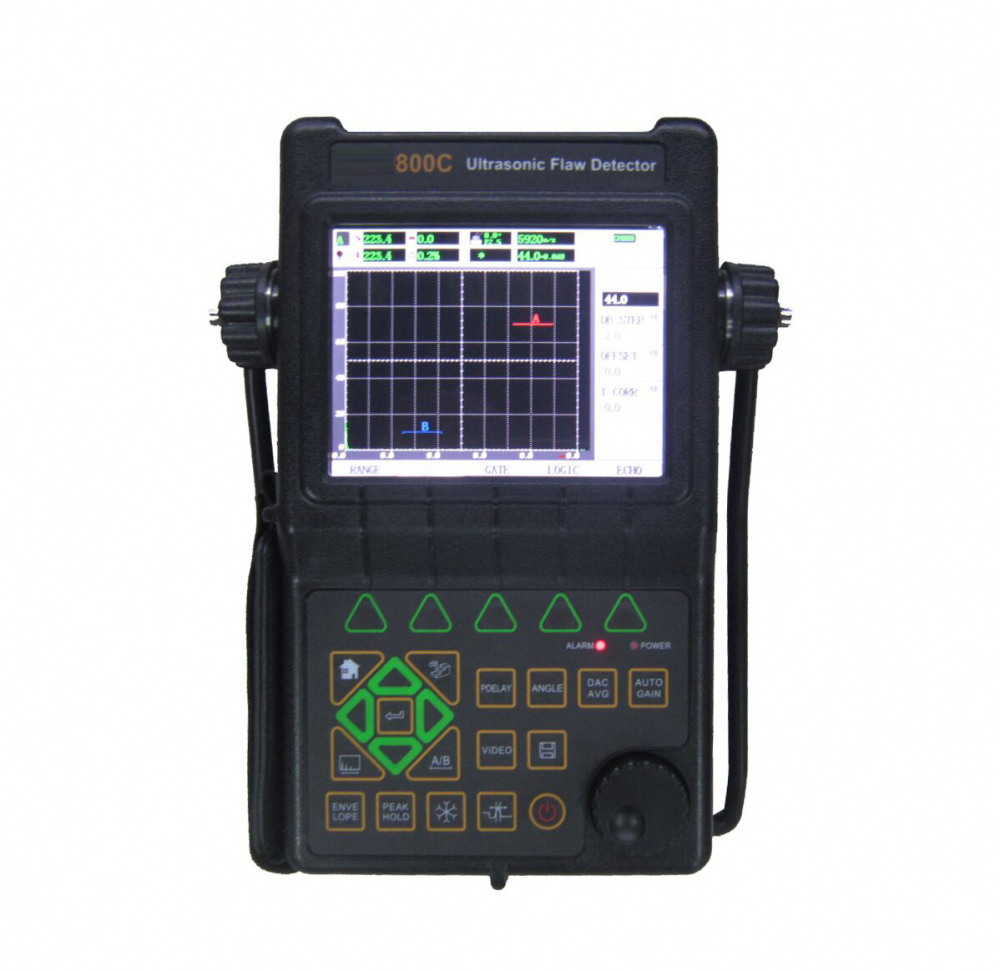

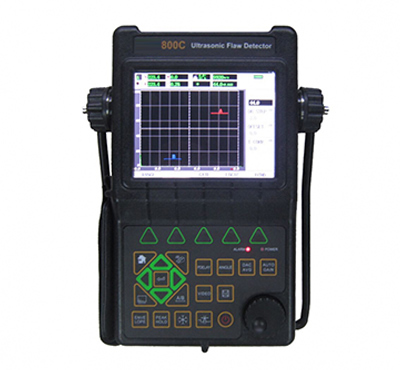

TBT-UTT800C ultrasonic flaw detector is convenient for operation with powerful functions provided. The ultrasonic flaw detector can quickly and accurately detect various defects inside the workpiece. The digital TFT 640x480 LCD display shows data with the adjustable brightness.
The operation interface is user-friendly and wave graph displays exquisitely so that all defects will be clearly found in the full screen. Curve making, probe calibration and other operations can be worked automatically. With the core processing CPU frequency of 400MHz, this portable ultrasonic flaw detector quickly makes complex calculation and intelligent defect analysis. Low-power design with high-capacity lithium battery can support more than 10 hours of continuous operation.
- Measuring range: 0~9999mm at steel velocity
- Material velocity: 1000~9999m/s
- Display delay: -20 to 3400µs
- Probe delay/zero offset: 0~99.99µs
- Sensitivity: max. 110dB in selectable resolutions of 0.1, 1.0, 2.0, 6.0 dB and locked
- Test mode: pulse echo, dual element and thru-transmission
- Pulser: tunable square wave pulser
- Pulse repetition frequency: 10~1000Hz
- Pulse energy: 200V, 300V, 400V, 500V, 600V
- Bandwidth (amplifier bandpass): 0.5~15MHz
- Gate monitor: two independent flaw gates controllable over entire sweep range
- Rectification: positive half wave, negative half wave, full wave, RF
- System Linearity: horizontal: +/-0.2%FSW, vertical: 0.25%FSH, amplifier accuracy: +/-1dB
- Rejection (suppression): 0~80% full screen height
- Units: inch or millimeter
- Transducer connection: BNC or LEMO
- Power: AC mains, 100~240V AC, 50~60Hz
- Operating temperature: -10℃~50℃
- Storage temperature: -30℃~50℃

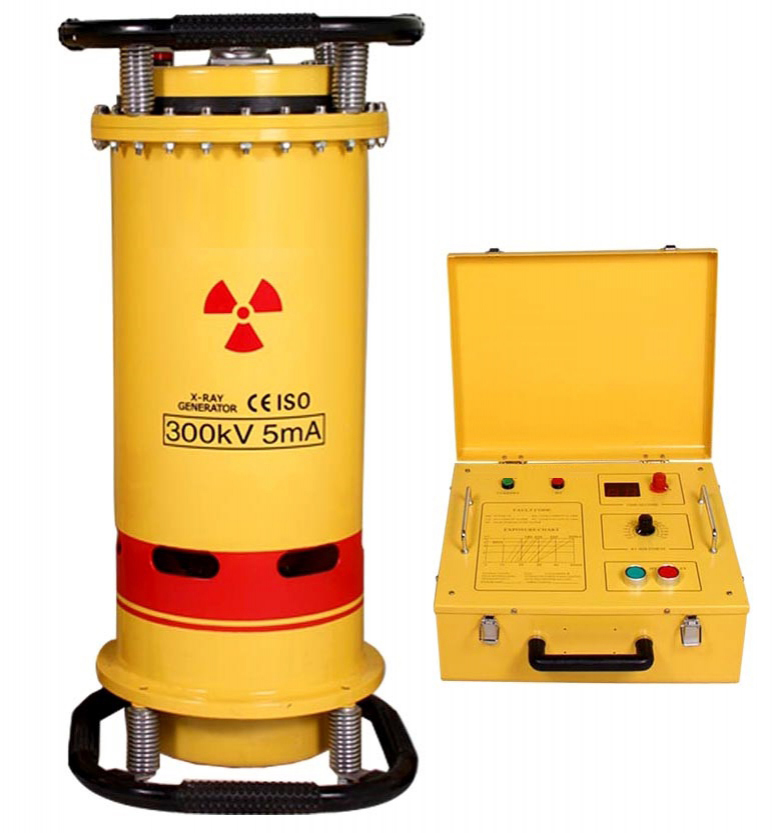

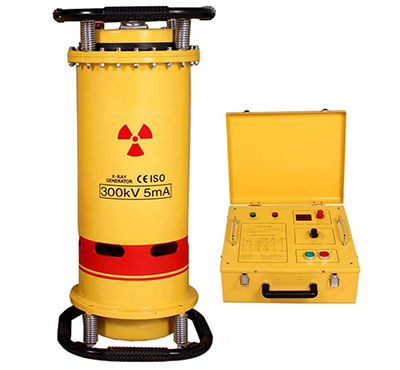

Portable X-ray flaw detector is designed to inspect welding quality of materials, parts and components such as hulls, pipes, high-pressure vessels, boilers, airplanes, vehicles and bridges, as well as quality of various light metal, rubber, ceramic and other processed parts. The X-ray transillumination method is used to show processed parts and internal defects of welding from the X-ray film to evaluate product quality.
| Model | Output voltage (kV) | Input capacity (kW) | Focus size (mmxmm) | Radiation coverage angle | Max. penetration depth (mm) | Generator weight (kg) | Controller weight (kg) | Generator dimension (mm) |

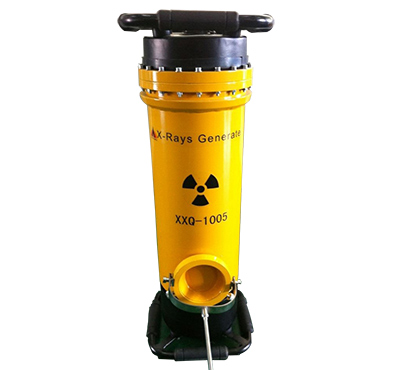

| XXQ-1005 | 40~100 | >1.0 | 1.0x1.0 | 40+5° | 8 | 10 | 12 | 160×180×540 |
| XXQ-1605 | 60~160 | >1.5 | 1.5x1.5 | 40+5° | 20 | 16 | 12 | 220x220x630 |
| XXQ-2005 | 80~200 | >2.0 | 1.5x1.5 | 40+5° | 30 | 24 | 12 | 280x280x680 |
| XXQ-2505 | 130~250 | >2.5 | 2.0x2.0 | 40+5° | 40 | 35 | 12 | 320×320×750 |
| XXQ-3005 | 170~300 | >3.0 | 2.5x2.5 | 40+5° | 50 | 41 | 12 | 320x320x840 |
| XXQ-3505 | 250~350 | >3.5 | 2.5x2.5 | 40+5° | 60 | 42 | 12 | 320x320x840 |
| Model | Output voltage (kV) | Input capacity (kW) | Focus size (mmxmm) | Radiation coverage angle | Max. penetration depth (mm) | Generator weight (kg) | Controller weight (kg) | Generator dimension (mm) |
| XXG-1605 | 60-160 | >1.5 | 1.5x1.5 | 40+5° | 20 | 18 | 12 | 210X210X560 |
| XXG-2005 | 80-200 | >2.0 | 1.5x1.5 | 40+5° | 30 | 25 | 12 | 280X280X620 |
| XXG-2005L | 80-200 | >2.0 | 1.5x1.5 | 40+5° | 30 | 18 | 12 | 210X210X560 |
| XXG-2505 | 130-250 | >2.5 | 2.0x2.0 | 40+5° | 40 | 33 | 12 | 320X320X650 |
| XXG-2505L | 130-250 | >2.5 | 2.0x2.0 | 40+5° | 40 | 25 | 12 | 280X280X620 |
| XXG-3005 | 170-300 | >3.0 | 2.5x2.5 | 40+5° | 50 | 37 | 12 | 320X320X680 |
| XXG-3005L | 170-300 | >3.0 | 2.5x2.5 | 40+5° | 50 | 34 | 12 | 320X320X650 |
| ZY-320 | 220-320 | >3.5 | 2.5x2.5 | 40+5° | 70 | 37 | 10 | 320X320X680 |
| Model | Output voltage (kV) | Input capacity (kW) | Focus size (mmxmm) | Radiation coverage angle | Max. penetration depth (mm) | Generator Weight (kg) | Controller weight (kg) | Generator Dimensions (mm) |
| XXGH-2505 | 130~250 | >2.5 | 1.0x2.4 | 360°x 25° | 37 | 32 | 12 | 320x320x690 |
| XXGH-3505 | 170~300 | >3.5 | 1.0x3.4 | 360°x 25° | 47 | 37 | 12 | 340x340x710 |
| Model | Output voltage (kV) | Input capacity (kW) | Focus size (mmxmm) | Radiation coverage angle | Max. penetration depth (mm) | Generator weight (kg) | Controller weight (kg) | Generator dimension (mm) |
| XXGHA-2505 | 130~250 | >2.5 | 1.0x2.5 | 360°x 25° | 34 | 33 | 12 | 320x320x690 |
| XXGHA-3505 | 170~300 | >3.5 | 1.0x3.5 | 360°x 25° | 40 | 38 | 12 | 340x340x710 |

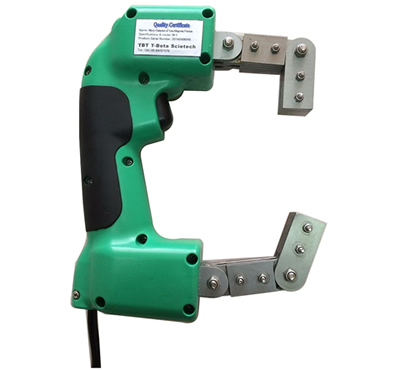

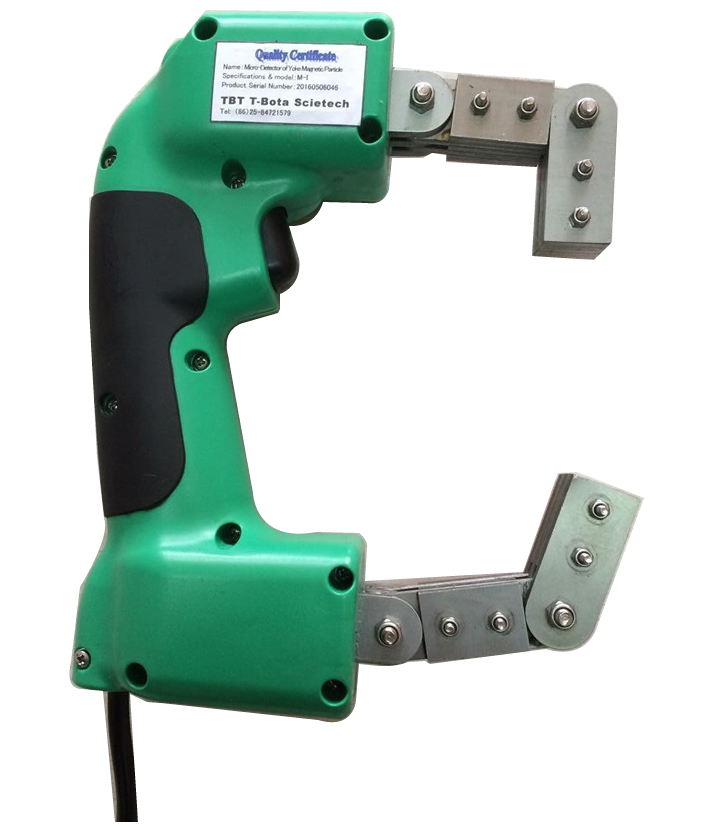

- Working current: 0. 7A(Empty 1.1A)
- Polar Distance: 0~250mm
- Product size: around 220*150*60mm
