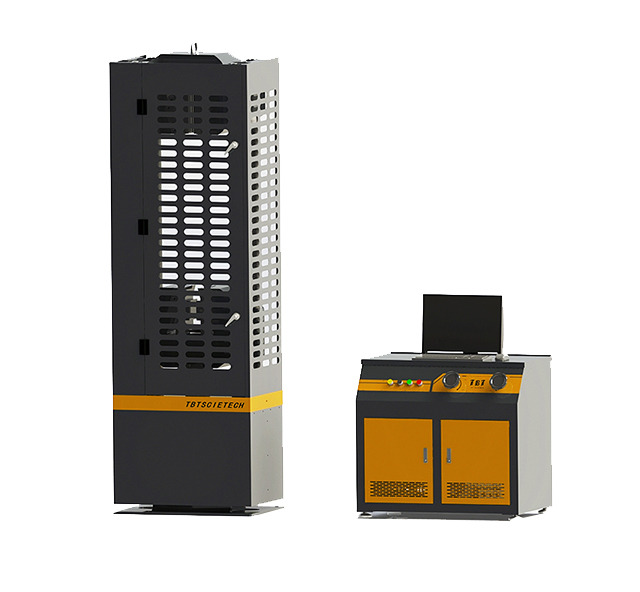

TBTUTM-1000A-I Universal Testing Machine for Steel Strand Test with PC display type

The testing machine is mainly designed for make tension, compression, bending and shearing test for metal & non-metal, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.

It is featured with electro-hydraulic loading, the loading & test processing curve can be displayed on the computer screen, and the data can be saved and printed out. It is with overloading protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.

Technical Parameters

Maximum load	1000 kN
Measuring range	0-1000 kN
Grade of machine (start from 20% of the full range)	Grade I
Load maintained time	≥30s
Max. distance between tension jaws (including piston stroke)	1100 mm
Distance between compression plates:	0-800 mm
Diameter for round specimen	Ф10-Ф20 mm
Travel of working piston	200 mm
Piston moving most fast speed (Non-load)	800mm/min
Main unit diamension	9606202800mm
Main unit net weight	2400kg
Loading part diamension	1000600910mm
Loading part net weight	250kg

TBTUTM-1000A-I Universal Testing Machine
