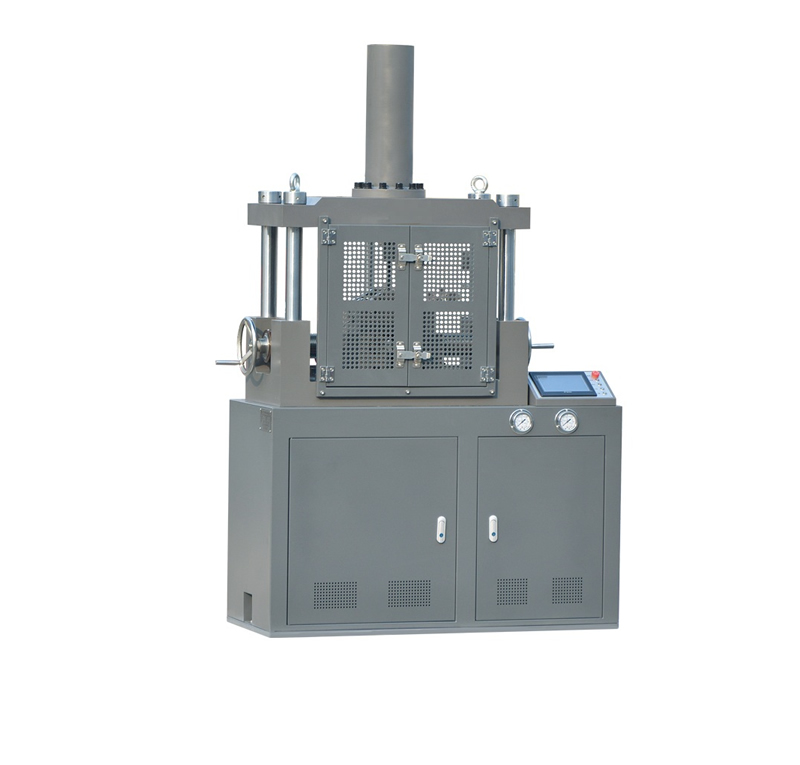

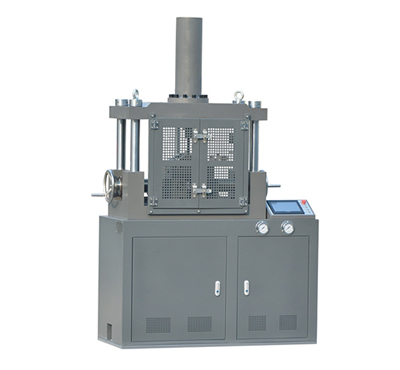

TBTLW-300B Steel Bar Bending Machine

TBTLW-300B bend test machine is used to perform bending tests on steel bar, plate and rebar for engineering and construction.

This bending tester is suitable for bending tests on metal materials such as steel bar, sheet and construction rebar. The test machine is loaded by two-way hydraulic cylinder, and the distance between the rollers is adjustable controlled by the hand wheel and can be self-locked.

Technical Parameters
Max. load capacity 300kN
Travel 300mm
Max. pressure 25Mpa
Bending angle range 0-180° (can be set)
Round specimen size Φ6~Φ32mm
Pressing head size Φ6~Φ192mm
Distance between rollers 300mm
Oil cylinder loading speed 120mm/min
Dimension 1200×550×2000mm
Main power 1.1kW
Weight 1100 kg
TBTLW-300 Bend Test Machine
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
