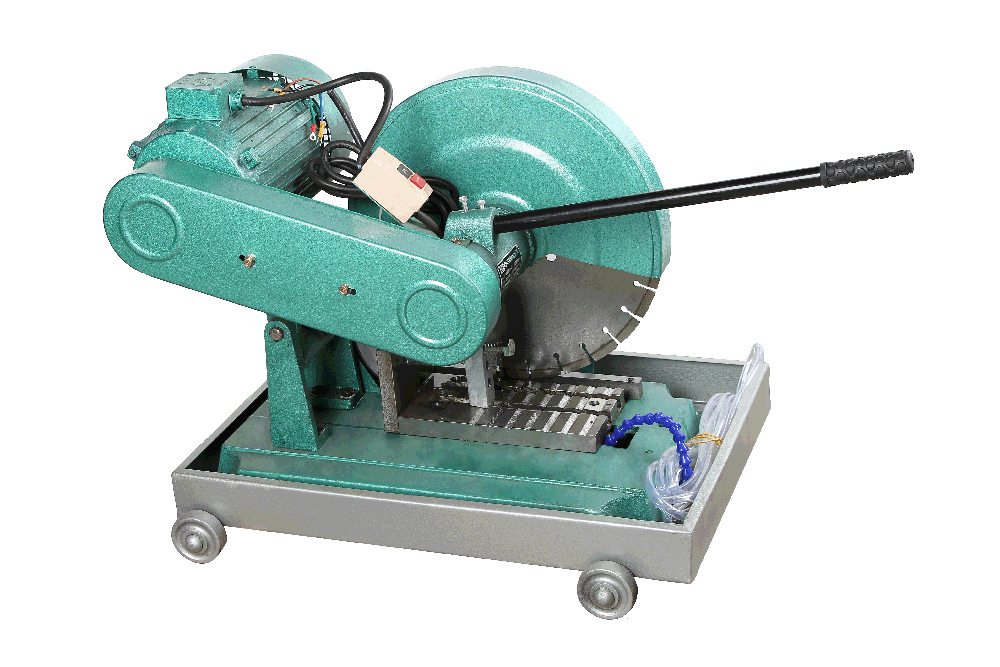

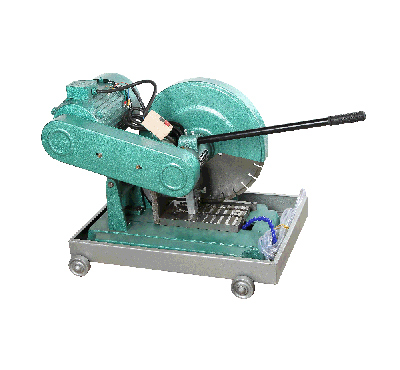

TBTHQP-150 Specimen Cutting Machine
TBTHQP-150 specimen cutting machine is used to cut concrete, asphalt core drilled specimen or cube specimens.
Technical Parameters
| Model | TBTHQP-150 |
| Specimen diameter | Ø50~Ø150mm |
| Specimen length | 400mm |
| Rotated speed | 2880r/min |
| Motor rated power supply | 220V, 2.2kW |
| Saw diameter | Ø400mm |
| Overall dimension | 900x460x830mm |
| Gross weight | 40kg |

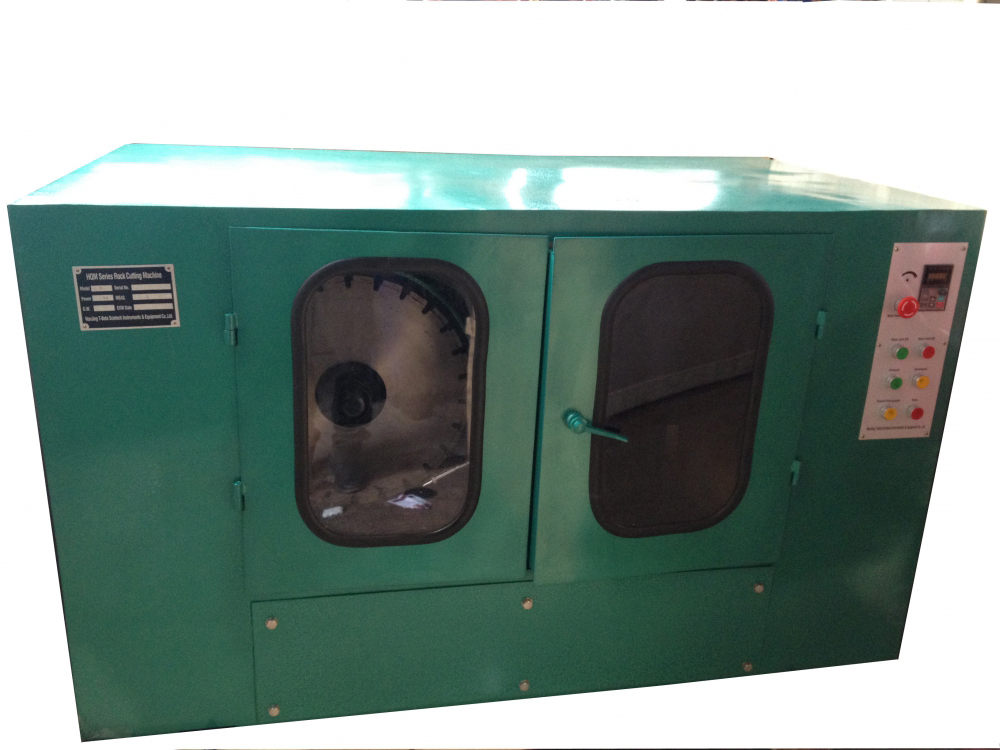

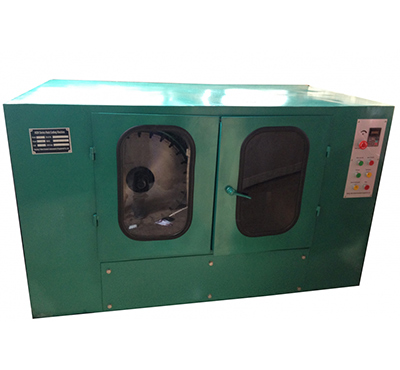

HQM-1A Automatic Concrete Core & Rock Slicing Machine
HQM-1A specimen cutting machine as a dual-use cutting machine can automatically cut concrete specimens, rock or bricks, and grind them for smooth finishes on cutting sides at high precision.
Technical Parameters
| Model / Parameter | HQM-1A | HQM-4A | HQM-5 | HQM-6 |
| Max. cut height (mm) | Ø150×150×300 | Ø210×210×350 | Ø300×300×400 | Ø170×400×500 |
| Diamond saw blade (mm) | Ø450×Ø50×3.8 | Ø600×Ø50×4.5 | Ø800×Ø50×6 | Ø500×Ø50×3.8 |
| Work form | Single, double knife cut (mill) | Single, double knife cut (mill) | Single-pole cutting | Single, double knife cut (mill) |
| Main motor | Y112M-2/5kW | Y132S-4/5.5kW | ||
| Cutter line speed | 33-45m/s | |||
| Working speed | 6-60mm/min (4-50Hz) | |||
| Noise | ＜80db | |||
| Dimension (mm) | 1600×820×1180 | 1600×1000×1180 | 1800×1000×1300 | |
| Weight (kg) | 580 | 620 | 650 | |
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
