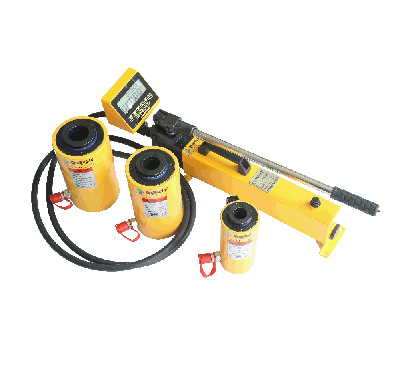

Anchor Tensiometer

TBTML-series pull out test apparatus is suitable for testing the anchorage force of bolt, steel bar, expansion bolt, etc.

Technical Parameters
Model Cylinder center hole Cylinder stroke Test range Cylinder weight Anchor size Pull rod Conversion head
10T 27mm 60mm 0-100kN 5.5kg Ø6-20 M18 M6-20
20T 35mm 80mm 0-200kN 13kg Ø6-25 M24 M6-24
30T 45mm 80mm 0-300kN 15kg Ø6-32 M30 M6-30
50T 60mm 120mm 0-500kN 25kg Ø6-40 M39 M6-36
100T 85mm 150mm 0-1000kN 58kg Ø25-40 M45 M30-39

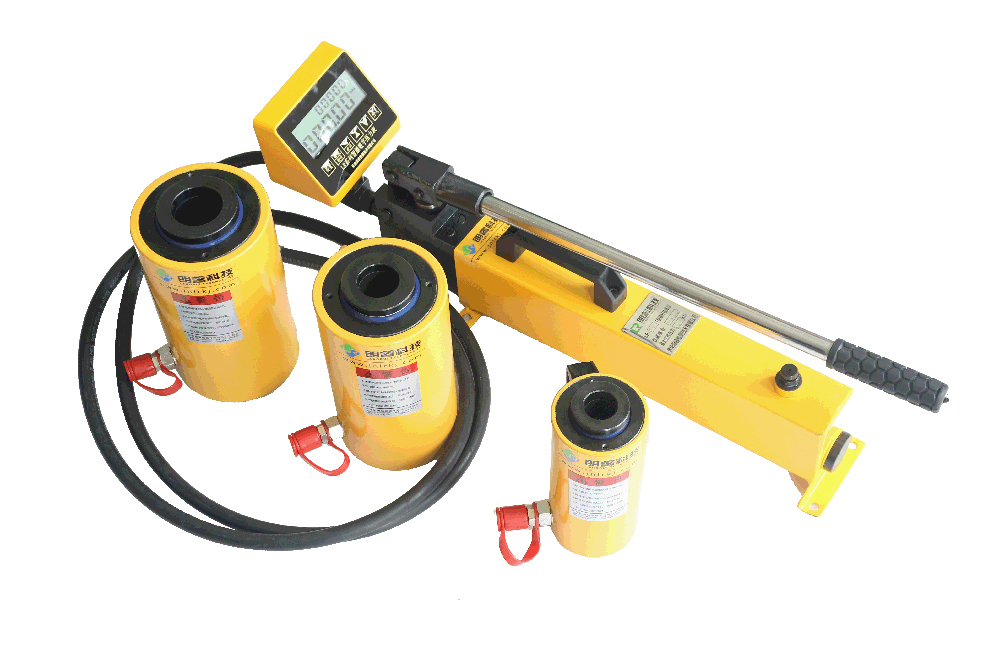

TBTML Series Pull-out test apparatus of anchorage body
Dedicated to the design and production of testing equipment for engineering projects and laboratory applications, NanJing T-Bota Scietech Instruments & Equipment Co. is a trusted enterprise in this industry. We provide customers with advanced asphalt testing equipment, concrete testing equipment, soil testing equipment, and much more to allow professionals to examine materials for various aspects prior to building projects. Better testing equipment results in better building materials used in construction, making these projects safer and longer lasting.
