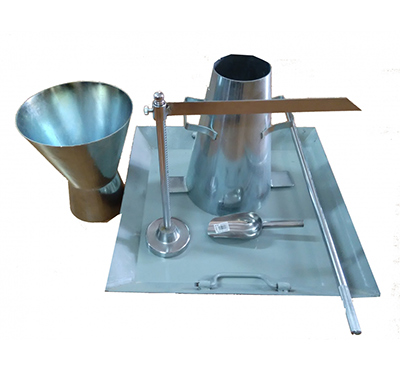

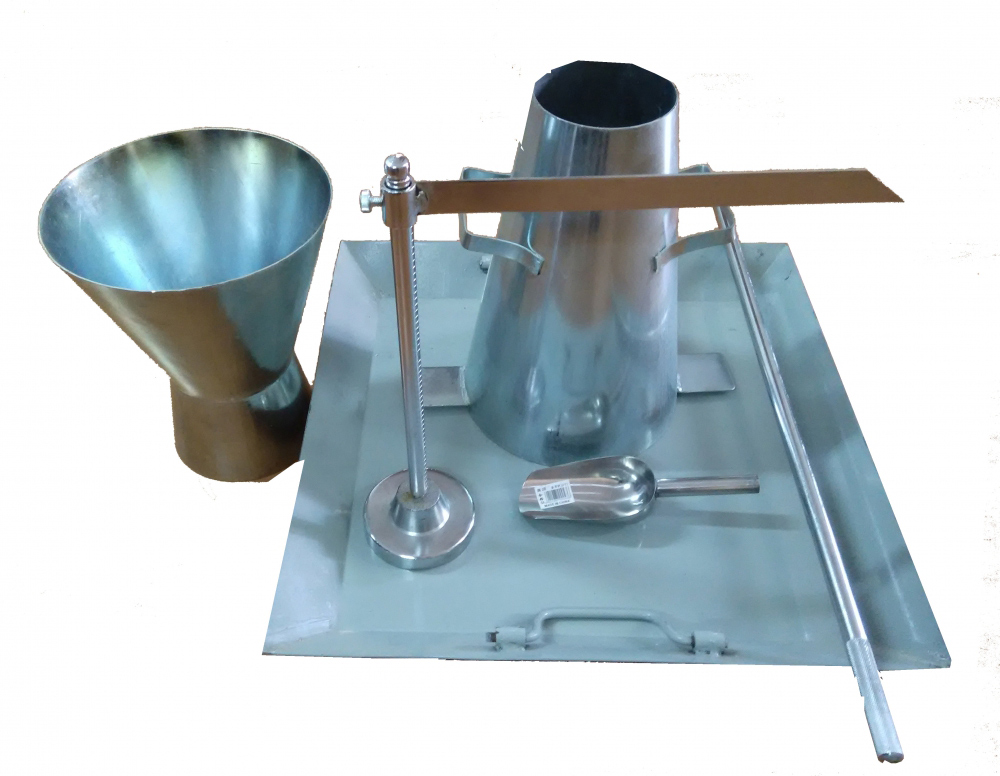

TBTSCT-1 slump testing equipment is intended for the slump test on a concrete mixture. The concrete mixture is supposed to be within 1 to 15cm and with the maximum aggregate particle size less than 40mm.
Slump:
A, upper mouth diameter: Ф100mm
B, lower mouth diameter: Ф200mm
C, tube height: 300mm
Pestle diameter: Ф16mm
Other tools: steel plate, wood ruler, small steel ruler, metal funnel
Steel ruler length | 300mm |
Metal base plate dimension | 460x460x40mm |
Funnel Upper diameter | Ф200mm |
Middle diameter | Ф100mm |
Bottom diameter | Ф130mm |
Height | 240mm |
Slump upper diameter | Ф100mm |
Bottom diameter | Ф200mm |
Height | 300mm |
